High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects
High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects
High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects
High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects
Specifications
Brand Name :
SZ
Model Number :
HDPE LDPE LLDPE
Certification :
ISO
Place of Origin :
CHINA
MOQ :
30000 square meters
Price :
$0.3-$2.0/SQM
Payment Terms :
T/T,L/C
Supply Ability :
100 Tons per day
Delivery Time :
5-8 days
Packaging Details :
Packed in woven bag or your requirements
Product Name :
HDPE Geomembrane
Thickness :
2mm
Application :
Landfill project
Function :
High Strength UV Resistance
Material :
HDPE LDPE LLDPE
Type :
Smooth or Textured
Length :
50m-100m
Width :
1m-8m
Description

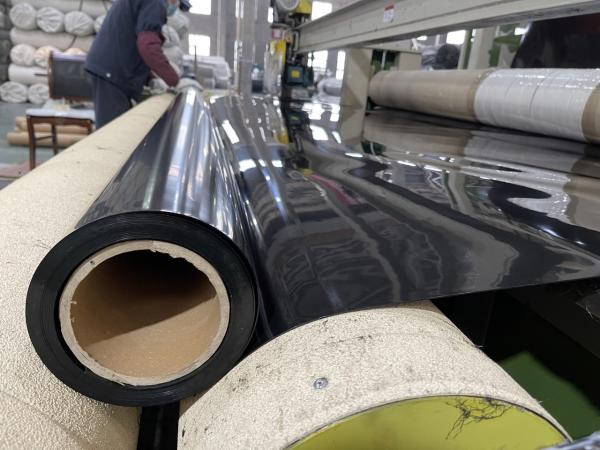

2mm Environmental Smooth Plastic Fish Pond Hdpe Geomembrane For Landfill Projects

YIXING SHENZHOU Geomembrane liners remain the optimal choice for various containment applications. With its excellent impermeability it allows for exceptional durability, high chemical & UV resistance and offering superior weldability whilst being flexible enough to allow for ease of installation without compromising its integrity.

High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill ProjectsHigh Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects

Thickness
Smooth surface 0.2mm-3.0mm, textured surface 1.0mm-2.0mm
Width
Smooth surface 1m-8m, textured surface 4m-8m
Length
30m-200m/roll or as requested
Material
HDPE, LDPE, LLDPE
Color
Black, blue, white, green
Surface
Smooth surface, single surface textured,dual surfaces textured

High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects

Item
Index
Thickness (mm)
0.30
0.50
0.75
1.00
1.25
1.50
2.00
2.50
3.00
Density ( g/cm3)
≧0.940
Tensile yield strength (N/mm)
≧4
≧7
≧10
≧13
≧16
≧20
≧26
≧33
≧40
Tensile fracture strength (N/mm)
≧6
≧10
≧15
≧20
≧25
≧30
≧40
≧50
≧60
Elongation at yield (%)
_
_
_
≧11
Elongation at break (%)
≧600
Right-angle tear load (N)
≧34
≧56
≧84
≧115
≧140
≧170
≧225
≧280
≧340
Puncture strength (N)
≧72
≧120
≧180
≧240
≧300
≧360
≧480
≧600
≧720
Carbon black content (%)
2.0~3.0

HDPE geomembrane application areas

Environmental protection and sanitation engineering

Definition: Use the anti-seepage properties of HDPE geomembrane to prevent the spread of pollutants and protect soil and water bodies.

Key applications:

Landfill: As the bottom and top anti-seepage layer, prevent leachate from contaminating groundwater (permeability coefficient as low as K=1.0×10⁻¹³ g·cm/cm²·s·Pa).

Sewage treatment plant/toxic waste treatment plant: Resist strong acid and alkali (withstand 80+ chemical media), with a service life of more than 50 years.

High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects

Water Conservancy and Civil Engineering

Definition: Improve the safety of hydraulic structures and the utilization rate of water resources through anti-seepage and reinforcement functions.

Key applications:

·Reservoir/channel anti-seepage: Reduce water loss by 20%-30%, and adapt to complex terrain paving (tensile strength ≥ 25MPa).

·Dam reinforcement: Rough surface HDPE membrane (friction coefficient 0.4-0.6) enhances slope stability.

Trend:

·Combined with BIM technology: Digital modeling optimizes membrane cutting and reduces welding loss (typical projects save 15% of materials).

·Low-temperature construction technology: Develop preheating welding machines to achieve -30℃ environment construction, breaking through the traditional 5℃ temperature limit.

High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects

Our Case:

In the South-to-North Water Diversion Project, HDPE membrane covered 300 kilometers of water diversion channels, and the leakage rate dropped to 0.5m³/km/day.

National key investment projects South-to-North Water Diversion Project

More than 2 million square meters of anti-seepage composite geomembrane

High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects

1.

SURFACE FINISH OPTIONS:

SMOOTH TEXTURED PILLAR

High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects High Strength Plastic Fish Pond Hdpe Geomembrane 2mm Smooth For Landfill Projects

Thickness Options : Thickness Options : Thickness Options :

• 0.5mm • 0.75mm • 1.0mm • 1.5mm • 1.5mm • 2.0mm
• 1.0mm • 2.0mm • 2.0mm • 2.5mm • 2.5mm • 3.0mm
• 2.5mm • 3.0mm • 3.0mm

1

Geomembrane is available from 0.5mm to 3.0mm thickness
