ASTM Smooth HDPE Geomembrane Sheet Corrosion Resistance For Mining Industry
ASTM Smooth HDPE Geomembrane Sheet Corrosion Resistance For Mining Industry
ASTM Smooth HDPE Geomembrane Sheet Corrosion Resistance For Mining Industry
ASTM Smooth HDPE Geomembrane Sheet Corrosion Resistance For Mining Industry
Specifications
Brand Name :
SZ
Model Number :
HDPE LDPE LLDPE
Certification :
ISO
Place of Origin :
CHINA
MOQ :
30000 square meters
Price :
$0.3-$2.0/SQM
Payment Terms :
T/T,L/C
Supply Ability :
100 Tons per day
Delivery Time :
5-8 days
Packaging Details :
Packed in woven bag or your requirements
Product Name :
HDPE Geomembrane
Thickness :
0.5-3mm
Application :
Mining
Function :
Anti UV Anti Seepager
Material :
HDPE LDPE LLDPE
Type :
Smooth or Textured
Length :
50m-200m
Width :
1m-8m
Description

ASTM Chemical Corrosion Resistance Smooth HDPE Geomembrane For Mining Industry

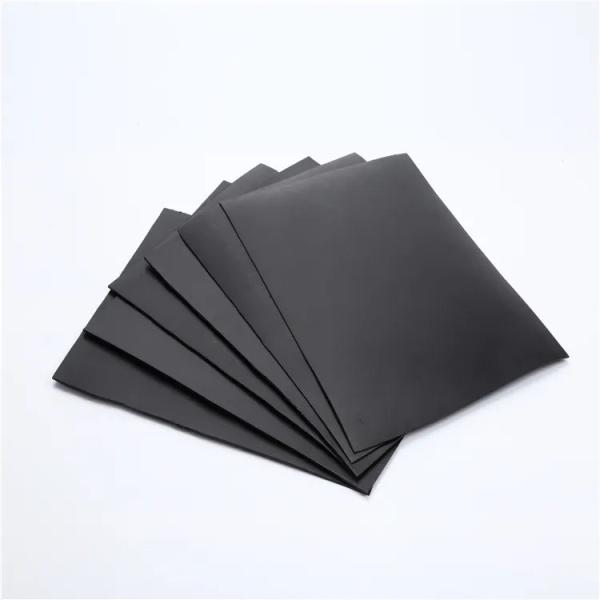

HDPE smooth geomembrane is made from high grade polyethylene raw material,

adding carbon black ,antioxidant, anti-aging and UV resistance component.

It adopted the first class automatic production equipment and three-layer pressing technology.

All products are in accordance with GB/GRI/ASTM GRI 13 GRI17 standard.

0.5mm or 0.75mm-thickness is used for pond liner

1.5mm-thickness is used for landfill

2.0mm-thickness is used for dam liner

ASTM Smooth HDPE Geomembrane Sheet Corrosion Resistance For Mining Industry

Benefits of HDPE

  • The most chemically resistant member of the polyethylene family due to its dense configuration.

  • Field welded with hot wedge welders and extrusion welders. These factory quality welds are virtually stronger than the sheet itself.

  • The best QC-QA testing capabilities in the marketplace.

  • No need to cover the liner because it is UV stable = cost-effective.

  • Available in roll stock and come in varying thicknesses ranging from 20 to 120 mil depending on your requirements.

Applications of HDPE

  • Irrigation ponds, canals, ditches & water reservoirs
  • Mining heap leach & slag tailing ponds
  • Golf course & decorative ponds
  • Landfill cells, covers, & caps
  • Wastewater lagoons
  • Secondary containment cells/systems
  • Liquid containment
  • Environmental containment
  • Soil Remediation

ASTM Smooth HDPE Geomembrane Sheet Corrosion Resistance For Mining Industry

Specification of HDPE

No. Properties Test Method Test Value
1 Thickness(mm) ASTM D5199 0.50 0.75 1.00 1.25 1.50 2.00 2.50 3.00
2 Density (g/cm2) ASTM D1505 0.939
3 Tensile Propeties
Yield Strength(N/mm) ASTM D6693 7 11 15 18 22 29 37 44
Break Strength(N/mm) 13 20 27 33 40 53 67 80
Yield Elongation % Type IV 12
Break Elongation % 700
4 Tear Resistance/N ASTM D1004 62 93 125 156 187 249 311 374
5 Puncture Resistance/N ASTM D4833 160 240 320 400 480 640 800 960
6 Stress Crack resistance/hr

ASTM D5397

(App.)

 300
7 Carbon Black
Carbon Black Content % ASTM D1603 2.0-3.0
Carbon Black Dispersion ASTM D5596

Carbon black dispersion(only near spherical agglomerates)for 10 different views 9

in categories 1 or 2 and 1 in category 3
8 Oxidative Induction Time(OIT)
Standard OIT/min ASTM D3895 100
High Pressure OIT/min ASTM D5885 400
9 Oven Aging at 85°C
Standard OIT-% retained after 90 days ASTM D3895 55
High pressure OIT-% retained after 90 days ASTM D5885 80
10 UV Resistance
Standard OIT retained after 1600 hrs ASTM D3895 50
High pressure OIT retained after 1600 hrs ASTM D5885 50
11 Low tempreture impact brittle property at -70°C _ Pass
12 Permeability g·cm/(cm2)·Pa _ ≤1.0×10-13
13 Dimensional Stability/% _ ±2

Product standards and purchase recommendations of HDPE

·. Implementation standards: National standard GB/T17643-2011, Urban Construction CJ/T234-2006, some scenes need to meet the American standard GRI-GM13.

· Purchase points: Select thickness (0.2-3.0mm) and surface type (glossy/rough) according to project requirements, and give priority to raw material products to improve durability.
