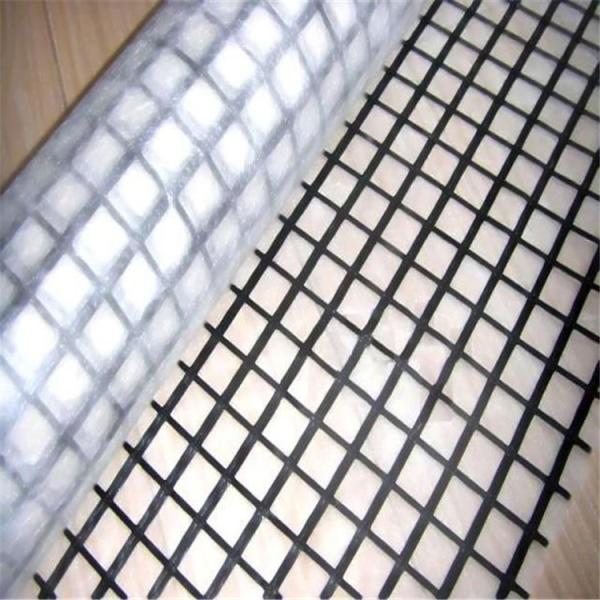

Geogrid composite is a new material compound of geogrid and geotextile. It is a new anti-seepage and water-permeable composites widely used in preventing asphalt pavement cracking reflection and improving the road loading capacity. It is resistant to fatigue cracking and high-temperature and can delay cracking reflection and extend road’s life span.
High tensile strength, anti-tearing and high bursting strength.
Function of isolation, drainage, reinforcement, protection, anti-seepage and etc .
| Fiberglass Geogrid | EGA 30-30 | EGA 50-50 | EGA 80-80 | EGA 100-100 | EGA 120-120 | EGA 150-150 | EGA 200-200 | EGA 300-300 | |
| Mesh size (mm) | 25.4x25.4 or 12.5x12.5 or 50.8x50.8 | ||||||||
| Breaking strength ≥(kN/m) | MD | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 |
| CMD | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | |
| MD/CMD | 4/4 | ||||||||
| Thernal tolerance(℃) | -100~280 | ||||||||
| Width≤(m) | 6 | ||||||||
| Nonwoven Geotextile |
|
| Material | PP or PET |
| Mass per unit area | 20g---100g/㎡ |
| Roll Width | 3.95 /5.95 m |
| Roll Length | 50/100 m |
Customized logo (Min. order: 50,000 square meters)
Customized packaging (Min. order: 50,000 square meters)
Graphic customization (Min. order: 50,000 square meters)
