HDPE Honeycomb Grid Erosion Control Geocell Retaining Wall Stabilizer For Driveway Gravel

Description

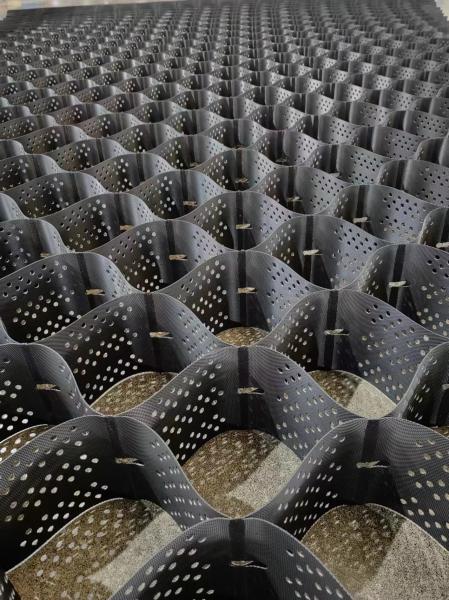

Geocell is made of high-strength hdpe copolymer broadband, so it is also known as geocell, which is strongly welded or riveted and formed a three-dimensional mesh cell structure. It is stretchable, can be folded up when transported, open and filled with soil, stone or concrete materials when used, constituting a structure with strong lateral restriction and large stiffness. It can be used as a bedding layer, to deal with weak foundations to increase the bearing capacity of the foundation, can also be laid on the slope to form a slope protection structure, but also can be used to build the supporting structure and so on.

It belongs to special geosynthetics. It is used to reinforce the roadbed of the highway, slope protection, construction of retaining walls, etc. Its greater feature is that it can complete a variety of difficult problems that are difficult to deal with by conventional methods in rock engineering, such as bridge jumping, soft base subsidence, overturning, landslide and so on. With light material, wear-resistant, ageing-resistant, chemical corrosion-resistant, wide range of applicable temperatures, high tensile strength, rigidity, toughness, impact resistance, relative stability of size, easy to transport and so on.

Application scenarios of geocells

1. Used for all kinds of road building, driveways, soil stabilization and embankment stabilization
2. Used to stabilize river embankments.
3. Used to prevent landslides.
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed, construction speed, good performance and greatly reduce the project cost.

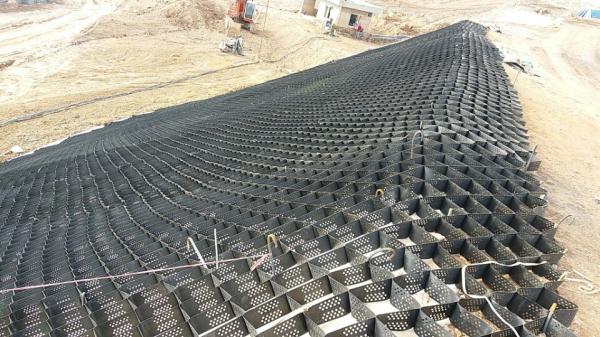

Slope Pretection

The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term stability of slopes using vegetated topsoil, aggregate or concrete surfacing

Construction process

1. Site preparation: clean the slope, trim the step platform, and ensure that it is connected to the existing road.

2. Laying and fixing: unfold the cell and fix the top and edge with U-shaped/L-shaped anchor rods to ensure that it fits the slope.

3. Filling and compacting: fill in sand and gravel or vegetation soil, and use a roller to compact in layers.

4. Ecological restoration: plant grass seeds or shrubs in the slope filling soil to form a green slope protection.

Plastic HDPE Geocell Technical parameter:

Key Advantages

1. Economical: Using local materials to reduce material costs, construction efficiency is increased by more than 50% compared with traditional methods.

2. Environmentally friendly: Support vegetation restoration and reduce the damage of hard engineering to the ecology.

3. Adaptability: Applicable to a variety of complex geological conditions such as deserts, frozen soil, and soft foundations.
