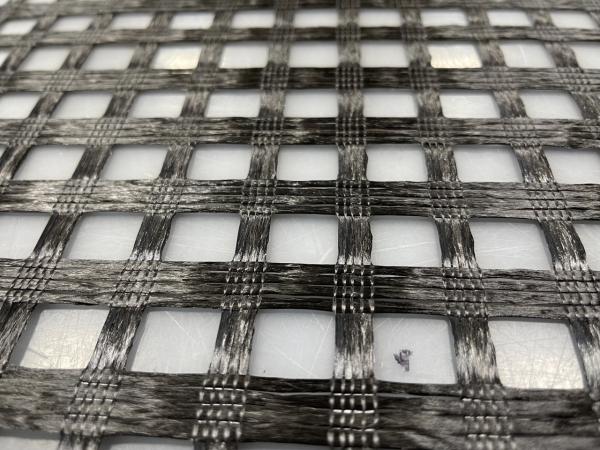

Biaxial PES Woven Coated Polyester Geogrid For Railway Foundation Reinforcement
Biaxial PES Woven Coated Polyester Geogrid For Railway Foundation Reinforcement
Biaxial PES Woven Coated Polyester Geogrid For Railway Foundation Reinforcement
Biaxial PES Woven Coated Polyester Geogrid For Railway Foundation Reinforcement
Biaxial PES Woven Coated Polyester Geogrid For Railway Foundation Reinforcement
Biaxial PES Woven Coated Polyester Geogrid For Railway Foundation Reinforcement
Specifications
Brand Name :
SZ
Model Number :
SZPES
Certification :
CE,ISO
Place of Origin :
JIANGSU,CHINA
MOQ :
10,000 square meter
Price :
$0.3-$2.0/SQM
Supply Ability :
30.000 Square Meters per Day
Delivery Time :
5-8 working days
Packaging Details :
Packed in Roll Or customized packing as your request.
Product Name :
Polyester Geogrid
Application :
Railway Foundation Reinforcement
Coating :
Woven
Tensile strength :
30-1000kn/m
Elongation :
> 10%
Width :
1-6m
Description

Biaxial PES Woven Coated Polyester Geogrid For Railway Foundation Reinforcement

About Polyester Geogrid

PES Woven Coated Polyester Geogrid is woven by high tenacity polyester filament as the raw material with stitch bonding, and coated with black polyvinyl chloride (PVC).

Properties

1. High intension, high tenacity, high occlusive force with soil or gravel, erosion-resistant, water drainage, light weight

2. Reinforce soft soil roadbed, rib side slope of embankment, enhance isolation, inhibit ground deformation,prevent crack by reflection, increase strength of roadbed.

Type: PET20-20, PET30-30, PET40-40, PET50-50, PET60-60, PET80-80, PET100-100, PET120-120, PET150-150,PET50-30, PET60-30, PET80-30, PET100-30, PET120-30, PET150-30

MAX PET950

Roll width: 2m, 3m, 4m, 5m, 6m

Roll length: 50m, 100m, 150m

Biaxial PES Woven Coated Polyester Geogrid For Railway Foundation Reinforcement

Polyester Geogrid Application

Technical Specification

Physical Property Unit 100/30 160/30 200/30 300/30
Tensile Strength MD kN/m 100 160 200 300
Tensile Strength CMD kN/m 30 30 30 30
Elongation MD % 10 10 10 10
Tensile Strength @ 5% strain kN/m 50 80 100 150
Unit Weight (±5%) 193 224 283 395

Creep Reduction Factor

120 Year Design Life

 1.42 1.42 1.42 1.42

Creep Limited Strength

120 Year Design Life

 kN/m 70.4 112.7 140.8 211.3
Installation Damage Reduction
Type 3 Backfill (sand, silt, clay) 1.05 1.05 1.05 1.05
Type 2 Backfill (sandy gravel) 1.10 1.10 1.10 1.10
Type 1 Backfill(gravel) 1.15 1.15 1.15 1.15
Durability Reduction Factor 1.05 1.05 1.05 1.05
LTDS (120-year design life)
Type 3 Backfill (sand, silt, clay) kN/m 63.9 102.2 127.8 191.6
Type 2 Backfill (sandy gravel) kN/m 61.0 97.6 121.9 183.3
Type 1 Backfill(gravel) kN/m 58.3 93.3 116.6 175.4

Biaxial PES Woven Coated Polyester Geogrid For Railway Foundation Reinforcement

Biaxial PES Woven Coated Polyester Geogrid For Railway Foundation Reinforcement

Polyester fiber warp knitted geogrid uses high-strength polyester fiber as raw material. The warp knitting directional structure is adopted, and the warp and weft yarns in the fabric are not bent with each other. The intersections are bound and combined with high-strength fiber filaments to form a firm joint, giving full play to its mechanical properties. High-strength polyester fiber warp-knitted geogrid The grid has high tensile strength, small elongation force, large tear resistance strength, a small difference in vertical and horizontal strength, ultraviolet aging resistance, wear resistance, corrosion resistance, the lightweight, strong interlocking force with soil or gravel, and is suitable for reinforcing soil. Shear resistance and reinforcement improve the integrity and load capacity of the soil and play a significant role.

Customization options

Customized logo (Min. order: 20,000 square meters)
Customized packaging (Min. order: 20,000 square meters)
Graphic customization (Min. order: 20,000 square meters)

Welcome to visit Yixing Shenzhou Geosynthetic Factory.
