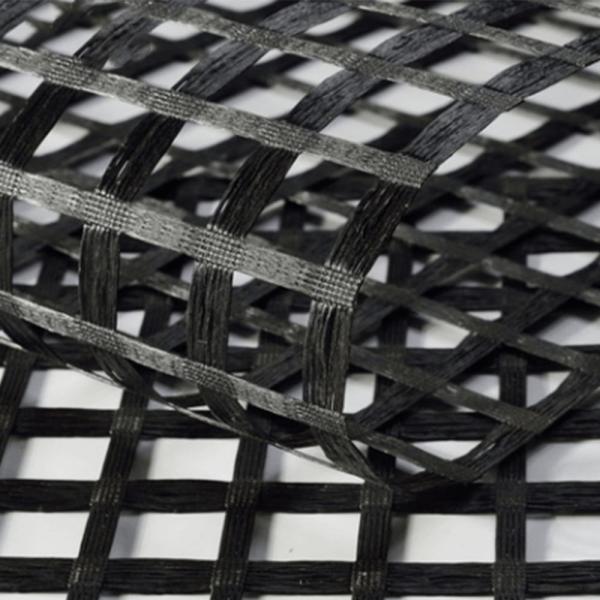

Biaxial Geogrid Woven Coated Polyester Geogrid Highway construction  basal reinforcement
Biaxial Geogrid Woven Coated Polyester Geogrid Highway construction  basal reinforcement
Biaxial Geogrid Woven Coated Polyester Geogrid Highway construction  basal reinforcement
Biaxial Geogrid Woven Coated Polyester Geogrid Highway construction  basal reinforcement
Biaxial Geogrid Woven Coated Polyester Geogrid Highway construction  basal reinforcement
Biaxial Geogrid Woven Coated Polyester Geogrid Highway construction  basal reinforcement
Specifications
Brand Name :
SZ
Model Number :
SZPES
Certification :
CE,ISO
Place of Origin :
JIANGSU,CHINA
MOQ :
10,000 square meter
Price :
$0.3-$2.0/SQM
Supply Ability :
30.000 Square Meters per Day
Delivery Time :
5-8 working days
Packaging Details :
Packed in Roll Or customized packing as your request.
Product Name :
Woven Coated Polyester Geogrid
Application :
Highway construction basal reinforcement
Feature :
Anti Corrosion
Tensile strength :
30-1000 kn/m
Elongation :
> 10%
Type :
Uniaxial
Mesh size :
50.8*50.8
Width :
1-6m
Description

Biaxial Geogrid Woven Coated Polyester Geogrid Highway construction basal reinforcement

About Yixing Shenzhou Polyester Geogrid :


Polyester warp knitted polyester geogrid is a new type of geotextile substrate that enhances roadbeds. It uses high-strength polyester fibers or polypropylene fibers as raw materials, and adopts a warp knitted oriented structure for weaving, so that the warp and weft yarns in the fabric are in a non bending state with each other. The intersection points are tied and combined with high-strength fiber filaments to form a strong joint point, and then coated and processed to finally make a geogrid.

Item/Spec
Tensile strength≥ Kn/m
Elongation≤ %
Grid size mm
Width m
30—100
30-1200 Warp
10
25.4x25.4
2 or 4 or 5.2 or 6
120--1200
30-1200 Weft
13(or)
50.8x50.8(or)
Flexible options, customizable width

Biaxial Geogrid Woven Coated Polyester Geogrid Highway construction  basal reinforcementBiaxial Geogrid Woven Coated Polyester Geogrid Highway construction  basal reinforcement

Product Type: High Tenacity Polyester Geogrid

Polymer: Polyester

Recommended Applications: Segmental Block Walls, Welded Wire Walls, Reinforced Soil Slopesinstallation damage for other soil types is available on request.

HDPE UNIAXIAL GEOGRID ( MONO-ORIENTED GEOGRIDS)

APPLICATION: Retaining walls, steep slopes reinforcement, landslides repair, embankments stabilization, landfill side slopes reinforcement

Technical Specification

Physical Property Unit 100/30 160/30 200/30 300/30
Tensile Strength MD kN/m 100 160 200 300
Tensile Strength CMD kN/m 30 30 30 30
Elongation MD % 10 10 10 10
Tensile Strength @ 5% strain kN/m 50 80 100 150
Unit Weight (±5%) 193 224 283 395

Creep Reduction Factor

120 Year Design Life

 1.42 1.42 1.42 1.42

Creep Limited Strength

120 Year Design Life

 kN/m 70.4 112.7 140.8 211.3
Installation Damage Reduction
Type 3 Backfill (sand, silt, clay) 1.05 1.05 1.05 1.05
Type 2 Backfill (sandy gravel) 1.10 1.10 1.10 1.10
Type 1 Backfill(gravel) 1.15 1.15 1.15 1.15
Durability Reduction Factor 1.05 1.05 1.05 1.05
LTDS (120-year design life)
Type 3 Backfill (sand, silt, clay) kN/m 63.9 102.2 127.8 191.6
Type 2 Backfill (sandy gravel) kN/m 61.0 97.6 121.9 183.3
Type 1 Backfill(gravel) kN/m 58.3 93.3 116.6 175.4

FUNCTION

  • Calculating tightly with surrounding materials, creating a solid foundation, especially against the slip of embankment used as dams and earth retaining walls.

  • Versatility: almost suitable for all types of soil and rock.

  • Save the amount of earthwork, take advantage of on-site materials.

  • Fast construction time with low cost.

  • Durable geogrids with physical and chemical impacts of the enviroment, corrosion often seen in the area to handle soft ground (mined areas, landfills, marshlands, ports…)

​Biaxial Geogrid Woven Coated Polyester Geogrid Highway construction  basal reinforcement
