Specifications
Brand Name :
SZ
Model Number :
SZPES
Certification :
CE,ISO
Place of Origin :
JIANGSU,CHINA
MOQ :
10,000 square meter
Price :
$0.3-$2.0/SQM
Supply Ability :
30.000 Square Meters per Day
Delivery Time :
5-8 working days
Packaging Details :
Packed in Roll Or customized packing as your request.
Product Name :
300-50 KN/m Reinforce Polyester Uniaxial Geogrid
Application :
Dam And Slope River Bank Embankment Stabilization
Feature :
Sustainable Geogrid
Elongation :
< 10%
Type :
Uniaxial
Mesh size :
50.8*50.8
Width :
1-6m
Length :
50m,100,150m
Description

300-50 KN/m Reinforce Polyester Uniaxial Geogrid Dam And Slope River Bank Embankment Stabilization

Product Description

Area
Application of Geosynthetics
Hydraulic Lagooning and Water Treatment, Ornamental Ponds, Golf Courses Aquaculture and Desalination Water LagoonsTanks, Reservoirs, Liquid WasteFloating Cover SolutionsDrainage and FiltrationShading Cover Solutions
Environment Tailing ponds, Leach mining,Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers
Civil Works Erosion Control, Secondary Containment, Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building Parkings,Roofing,Soundproofing

Type Geogrids Place of Origin Jiangsu,China Brand Name Shenzhou
Model Number PGA Material Polyester yarns Color Black
Width Max.6m Length 50-100m Certificates ISO,CE
Coating Glue/SBR Name Polyester geogrid Tensile strength 50-1200 KN/M
Mesh size 25*25mm Elongation 13% Process Warp knitted

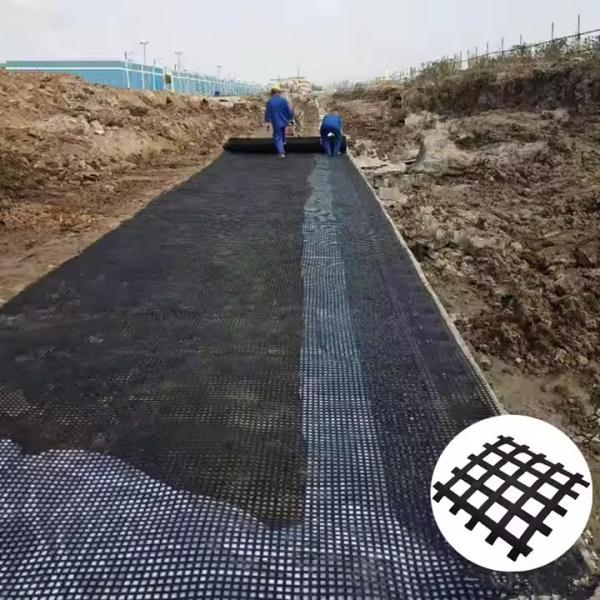

Application of Yixing Shenzhou PET Polyester Geogrid

300-50 KN/m Reinforce Polyester Uniaxial Geogrid Dam And Slope River Bank Embankment Stabilization300-50 KN/m Reinforce Polyester Uniaxial Geogrid Dam And Slope River Bank Embankment Stabilization

300-50 KN/m Reinforce Polyester Uniaxial Geogrid Dam And Slope River Bank Embankment Stabilization

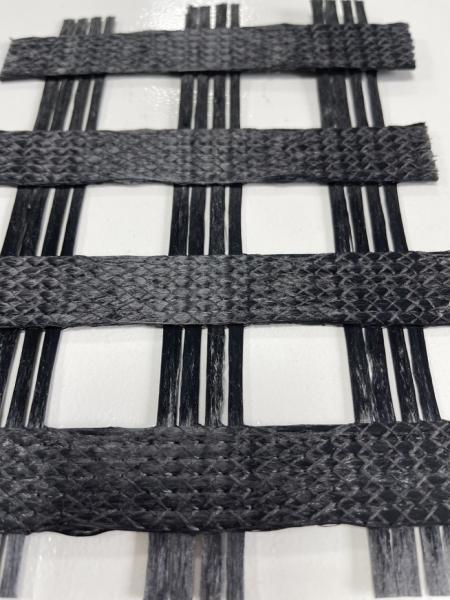

  • SHENZHOU® is a geogrid reinforcement for soil. These high performance geogrids are constructed of high molecular weight and high tenacity polyester yarns utilizing a complex knitting process and polymeric coating to provide superior engineering properties. Yarns are precision knitted into a dimensionally stable, uniform network of apertures providing significant tensile reinforcement capacity. SHENZHOU is engineered to be mechanically and chemically durable, in both the harsh construction installation phase and in aggressive soil environments.

Specification
Tensile Strenght
(KN/M)
Elongation%
Width
(m)
Mesh Size
(mm)
PET 30-30
30KN/30KN
≤3
1-6
12.7*12.7
25.4*25.4
50.8*50.8
76.2*76.2
PET 40-40
40KN/40KN
PET 50-50
50KN/50KN
PET 60-60
60KN/60KN
PET80-80
80KN/80KN
PET100-100
100KN/100KN
PET120-120
10KN/120KN
PET 160-160
160KN/160KN
PET200-200
200KN/200KN
PET 300-300
300KN/300KN
PET400-400
400KN/400KN

Our experience is in works developed in national and international territory in the agricultural, mining, energy, environmental and civil sectors.
