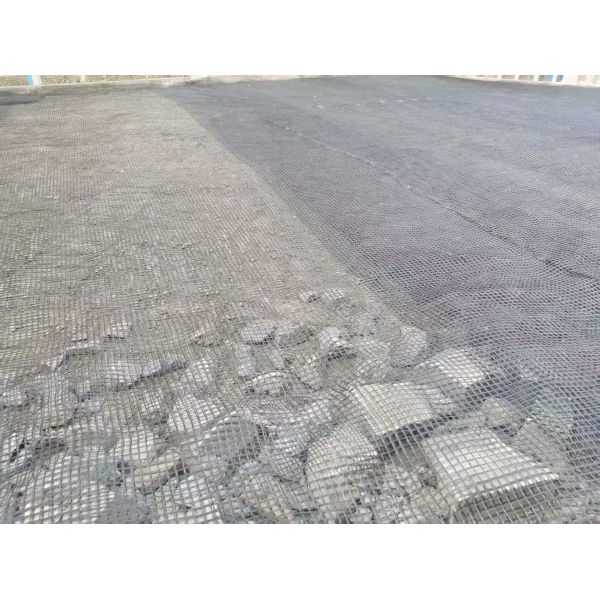

Factory Price Long Term Design SBR Or PVC Coated Polyester Biaxial Geogrid Parking Lots Construction Platforms

How is Polyester Biaxial Geogrid Made? (Manufacturing Process)

The manufacturing process is very similar to that of uniaxial geogrids but with a different weaving pattern:

Weaving:

Multiple high-tenacity polyester yarns are woven together in both the machine (longitudinal)

and cross-machine (transverse) directions. This creates a stable, square or rectangular aperture

pattern where the yarns in both directions carry significant load.

Pre-Coating:

The woven grid receives an initial coating to lock the junctions in place and protect the fibers.

Primary Coating (Impregnation):

This is the critical step. The grid is immersed in a polymer coating (e.g., PVC, modified latex) and calendered.

This fully encapsulates the individual polyester filaments, bonding them together at the junctions and providing a protective sheath against mechanical damage, installation stresses, and chemical degradation.

Curing & Finishing: The coated grid is passed through an oven to cure the coating and then wound onto large rolls.

Polyester Biaxial Geogrid Key Characteristics and Properties:

Biaxial Strength Orientation:

Its primary feature is its ability to withstand and distribute tensile forces in two perpendicular directions simultaneously.

High Tensile Modulus & Low Elongation:

Like uniaxial polyester geogrids, they exhibit high strength with low strain (typically 10-13% at break),

providing immediate restraint with minimal deformation.

Aperture Stability:

The rigid, coated junctions create a stable network that provides excellent interlock with surrounding soil and aggregate particles.

Excellent Creep Resistance:

Polyester's inherent properties make these geogrids highly resistant to long-term deformation under constant load,

which is vital for permanent infrastructure.

Robustness:

The polymer coating provides superior protection against installation damage, abrasion, and

chemical attack compared to uncoated geogrids.

Yixing Shenzhou Polyester Geogrids:

1.Uniaxial Polyester Geogrids:

Stronger in one direction, used for reinforcement in specific directions, such as retaining walls.

Popular Types : 100-30 KN/M ; 200-30 KN/M ; 200-50 KN/M ; 250-50 KN/M ; 200-100 KN/M

2. Biaxial Polyester Geogrids:

Strong in both directions, suitable for applications requiring reinforcement in all directions, like embankments and slopes.

Hot Sell Models : 80-80 KN/M ; 120-120KN/M ; 200-200KN/M； 500-500KN/M

Polyester Geogrids Coating PVC Or Coated SBR

Polyester Biaxial Geogrid Technical Specification (ASTM/ISO Standards)

Packing and Shipping

Selling packing: Customers' company Logo mark can be designed and added.
Outer packing: Packed in double layer woven bags to ensure smooth arrival and avoid rough handle.
Delivery Detail: Winthin 10 days after received your deposit
Delivery Detail: 100,000 square meters can be finished within 3 days
Delivery Time: 3-20 days after confirming order, detail delivery date should be decided according to

production season and order quantity.

Polyester Biaxial Geogrid are used in applications :

Reinforced Soil Walls (MSE Walls):

This is the most common application. The geogrid layers are placed horizontally between

soil layers to create a stable, reinforced mass that can retain soil at a steep angle.

Reinforced Steep Slopes: Similar to walls, but for slopes at angles steeper than what the

soil could naturally maintain. The geogrid provides the necessary tensile strength to prevent slope failure.

Embankment Stabilization over Soft Soils: When building an embankment on soft, weak ground,

layers of geogrid are used to prevent circular slip failures and distribute the load, ensuring global stability.

Foundation Reinforcement:

In some cases, they are used to improve the bearing capacity of foundations.

.

More expertise and solutions for PET Grid Polyester Geogrids,

please contact Yixing Shenzhou Amelie :

Yixing Shenzhou Geosynthetics Polyester Geogrid Design and Construction Workflow:

Site & Soil Analysis: Geotechnical engineers analyze the soil conditions, loads, and required wall height.

Design: Engineers specify the geogrid type (polyester), its strength, length, and vertical spacing between layers.

The length is crucial for creating a stable reinforced zone.

Construction:

A leveling pad is prepared.

The first layer of wall facing units is placed.

A layer of select backfill is placed and compacted.

The polyester geogrid is rolled out over the compacted soil and connected to the wall face.

The process repeats: backfill, compact, place geogrid, until the top is reached.
