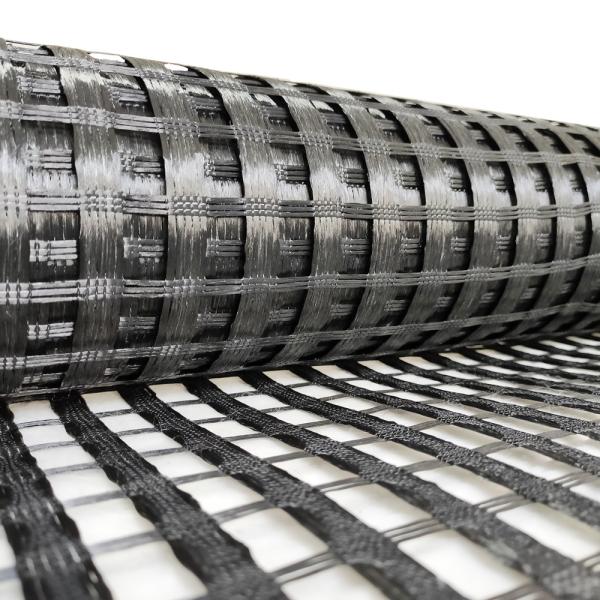

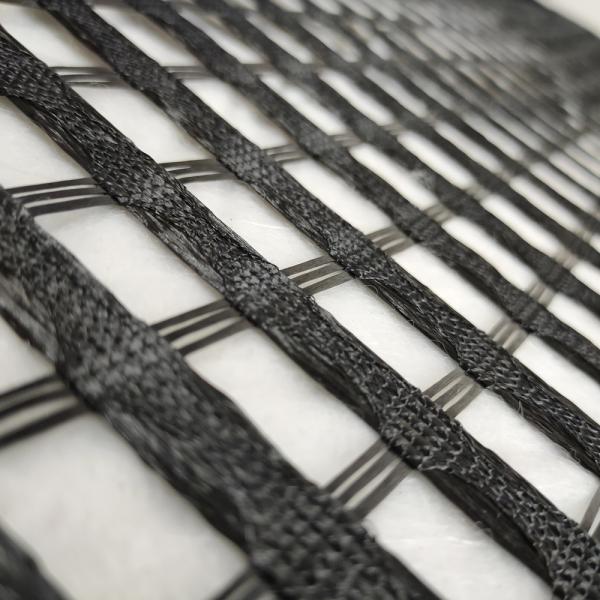

Aperture Size 50.8mm Woven Coated SBR/PVC Knitted BX PET Polyester Geogrid Soil Stabilty Foundation Reinforce

How is a Knitted BX Geogrid Made? (The Coating is Key)

The "knitted" description often refers specifically to the core structure before coating.

The full manufacturing process is typically:

Knitting: The polyester yarns are knitted into a grid network with the desired BX aperture shape.

Coating: This knitted structure is then immersed in a protective polymer coating (often PVC or a flexible latex).

This step is crucial because:

It locks the knitted junctions in place, creating a robust, monolithic unit.

It protects the sensitive polyester yarns from ultraviolet (UV) radiation, abrasion, and chemical attack.

It provides a textured surface that enhances friction and interlock with soil particles.

The final product is a cohesive, coated grid where the ribs (both longitudinal and transverse) have

high tensile strength, and the junctions are exceptionally strong.

Knitted BX PET Polyester Geogrid is a specific type of biaxial geogrid known for its:

High tensile strength and low creep from the PET polyester.

Durable and stable structure from the knitted manufacturing process.

Balanced, two-directional strength from the BX geometry.

Superior protection and soil interaction from the polymer coating.

It is a premium product designed for demanding soil stabilization and base reinforcement

projects where long-term performance is critical.

Yixing Shenzhou Polyester Geogrids:

• 1.Uniaxial Polyester Geogrids:

Stronger in one direction, used for reinforcement in specific directions, such as retaining walls.

Popular Types : 100-30 KN/M ; 200-30 KN/M ; 200-50 KN/M ; 250-50 KN/M ; 200-100 KN/M

• 2. Biaxial Polyester Geogrids:

Strong in both directions, suitable for applications requiring reinforcement in all directions, like embankments and slopes.

Hot Sell Models : 80-80 KN/M ; 120-120KN/M ; 200-200KN/M； 500-500KN/M

Polyester Geogrids Coating PVC Or Coated SBR

200-2000KN/M PET Biaxial Polyester Geogrids Technical Specification (ASTM/ISO Standards)

Packing and Shipping

Selling packing: Customers' company Logo mark can be designed and added.
Outer packing: Packed in double layer woven bags to ensure smooth arrival and avoid rough handle.
Delivery Detail: Winthin 10 days after received your deposit
Delivery Detail: 100,000 square meters can be finished within 3 days
Delivery Time: 3-20 days after confirming order, detail delivery date should be decided according to

production season and order quantity.

Polyester Geogrids Application :

Polyester geogrids are used in all major reinforcement applications,

especially where long-term performance is critical:

Reinforced Soil Retaining Walls (MSE Walls):

The primary application, where they provide the tensile strength to hold the soil mass together.

Steep Slope Reinforcement: Stabilizes slopes at angles steeper than natural soil would allow.

Basal Reinforcement over Soft Soils:

Used to construct embankments and roads over soft, compressible ground by distributing

loads and providing a stable platform.

Landfill Liners and Capping Systems:

Reinforces the sides and covers of landfills, providing stability to the composite liner system.

Yixing Shenzhou Geosynthetics Polyester Geogrid Design and Construction Workflow:

Site & Soil Analysis: Geotechnical engineers analyze the soil conditions, loads, and required wall height.

Design: Engineers specify the geogrid type (polyester), its strength, length, and vertical spacing between layers.

The length is crucial for creating a stable reinforced zone.

Construction:

A leveling pad is prepared.

The first layer of wall facing units is placed.

A layer of select backfill is placed and compacted.

The polyester geogrid is rolled out over the compacted soil and connected to the wall face.

The process repeats: backfill, compact, place geogrid, until the top is reached.
