30W COB LED Downlight
30W COB LED Downlight
30W COB LED Downlight
30W COB LED Downlight
30W COB LED Downlight
30W COB LED Downlight
30W COB LED Downlight
30W COB LED Downlight
Specifications
Place of Origin :
china
Brand Name :
EWIN
Certification :
CE ROHS
Model Number :
EW-DL-30W-COB
Light Source: :
LED
Item Type: :
Downlights
LED Light Source: :
LED
Warranty(Years): :
3
Input Voltage(V): :
AC100-240V 50/60Hz
Lamp Power(W): :
30
Lamp Luminous Flux(lm): :
2600-3000lm.
Lamp Luminous Efficiency(lm/w): :
95
CRI (Ra>): :
80
Color Temperature(CCT): :
white, warm white, cold white,red,green,blue,yellow
Working Temperature(℃): :
-20 - 50
Working Lifetime(Hour): :
50000
watts: :
3W-50W are available
Lamp Body Material: :
Aluminum
IP Rating: :
IP44
MOQ :
100pcs
Packaging Details :
standard export package suitable for long-distance transportation
Delivery Time :
usually 7-10 working days
Payment Terms :
T/T, Western Union
Input Voltage(V) :
100-240v AC
Lamp Luminous Flux(lm) :
2600-3000lm.
Lamp Luminous Efficiency(lm/w) :
95
CRI (Ra>) :
80
Working Lifetime(Hour) :
50,000+hrs.
Install Style :
Downlights
Shade Type :
Shadeless
Supply Ability :
5000PCS/Month
Price :
51.3
Description

30W COB LED Downlight

Products Features:
(1)LED Power: 30W.
(2)Lamp Consumption:34W.
(3)Output: 2600-3000lm.
(4)Input voltage:100-277v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 80.
(7)Working Temperature:-40℃-45℃.
(8)Storage Temperature: -25℃-65℃.
(9)Color of housing: white, black, silver.
(10)Life span: 50,000+hrs.
(11)Certificate: CE/RoHS/SASO
(12)Warranty: 3 years.

COB Parameter:
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Output: 2900-3200lm.
(4)Chip Qty: 500 pcs.
(5)CRI> 82.
(6)Voltage:30-36vDC
(7)Current: 1000-1100mA.


Driver Parameter:
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 27-42vDC, 1000mA.
(4)Power effect: 0.9-0.97.
(5)Power Efficiency: 85%
(6)Certificate:CE/TUV/UL/CQC/SAA

Dimmable: Triac or Dali is available.
Meanwell PLD-25-350 is optional.

Product Datasheet:

Part No. Color CCT Output
EW-CL-COB-30W-WW warm white 2900-3200k 2600-2700lm
EW-CL-COB-30W-NW natural white 4000-4500k 2650-2800lm
EW-CL-COB-30W-CW cool white 5900-6300k 2700-3000lm

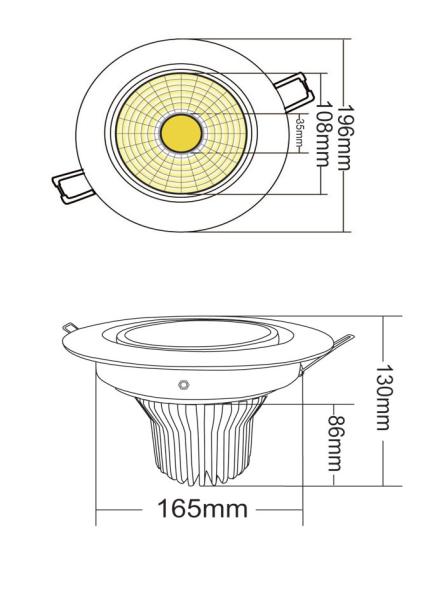

Dimension:
30W COB LED Downlight

30W COB LED Downlight
30W COB LED Downlight


IES Test:(please contact us to get the IES file)
30W COB LED Downlight


Packing:
30W COB LED Downlight

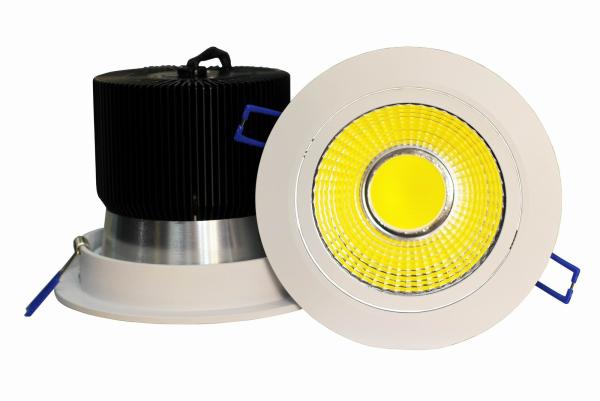

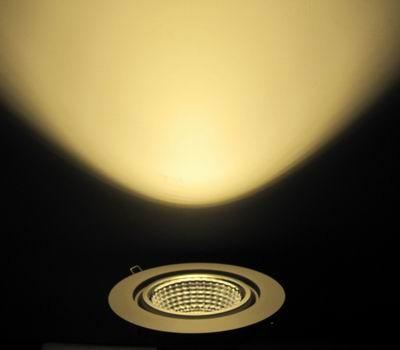

More Pictures:
30W COB LED Downlight
