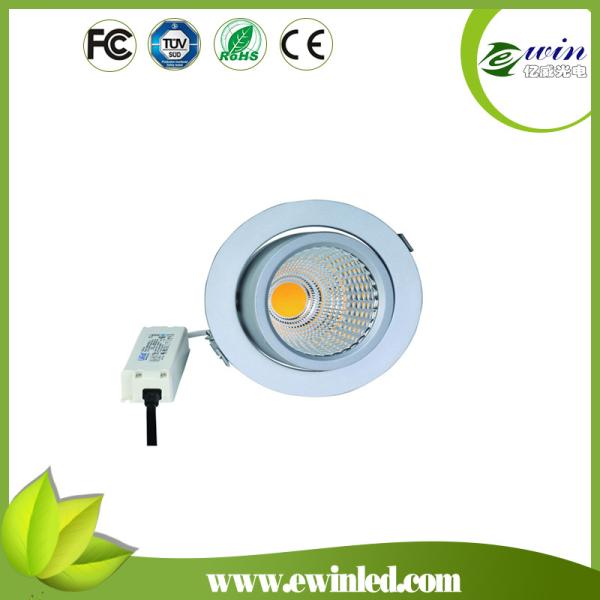

26W 360 rotatable COB LED downlight
26W 360 rotatable COB LED downlight
Specifications
Place of Origin :
china
Brand Name :
EWIN
Certification :
CE ROHS
Model Number :
EW-OCL-COB-26W-WW
MOQ :
10pcs
Price :
US $ 46.8 - 55.6 / Piece
Packaging Details :
12pcs in one carton(52x34x34CM)
Delivery Time :
usually 7-10 working days
Payment Terms :
T/T, Western Union
Supply Ability :
50,000 Piece/Pieces per Month
Minimum Order Quantity: :
1 Piece/Pieces
Input Voltage(V) :
100-240v AC
Lamp Luminous Flux(lm) :
5400-6000lm.
Lamp Luminous Efficiency(lm/w) :
95
CRI (Ra>) :
80
Working Lifetime(Hour) :
50,000+hrs.
Install Style :
Downlights
Light Source: :
LED
Item Type: :
Downlights
LED Light Source: :
LED
Warranty(Years): :
3
Input Voltage(V): :
AC100-240V 50/60Hz
Lamp Power(W): :
30
Lamp Luminous Flux(lm): :
2400-2600
Lamp Luminous Efficiency(lm/w): :
100
CRI (Ra>): :
82
Color Temperature(CCT): :
white, warm white, cold white,red,green,blue,yellow
Working Temperature(℃): :
-40 - 45
Working Lifetime(Hour): :
50000
watts: :
3W-50W are available
Lamp Body Material: :
Aluminum
IP Rating: :
IP33
Beam Angle: :
30°/60°
Color Temperature: :
2000k-7000k
Working Voltage: :
50-70VDC
Description

26W 360 rotatable COB LED downlight

Specifications

1.Output: 2400-2600lm
2.CRI: >82
3.Rotatable: 360 degree
4.Dimmable:Triac or Dali
5.Certificates: CE/RoHS/SAA/SASO

26W 360 rotatable COB LED downlight

Products Features:
(1)LED Power: 26W.
(2)Lamp Consumption:30W.
(3)Output: 2400-2600lm.

(4)Input voltage:100-270v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 80.
(7)Working Temperature:-40°C-45°C.
(8)Storage Temperature: -25°C-65°C.
(9)Color of housing: white, black, silver.
(10)Life span: 50,000+hrs.
(11)Certificate: CE/RoHS/SASO
(12)Warranty: 3 years.

COB Parameter:
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Output: 2400-2600lm.
(4)Chip Qty: 420 pcs.
(5)CRI> 82.
(6)Voltage:30-36vDC
(7)Current: 500-600mA.

Driver Parameter:
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 27-42vDC, 500mA.
(4)Power effect: 0.9-0.97.
(5)Power Efficiency: 85%
(6)Certificate:CE/TUV/UL/CQC/SAA

Dimmable: Triac or Dali is available.
Meanwell PLD-16-350 is optional.

Product Datasheet:

Part No. Color CCT Output
EW-OCL-COB-26W-WW warm white 2400-2500k 1250-1300lm
EW-OCL-COB-26W-NW natural white 4000-4500k 1300-1400lm
EW-OCL-COB-26W-CW cool white 5900-6300k 1350-1500lm

Dimension:

26W 360 rotatable COB LED downlight26W 360 rotatable COB LED downlight

IES Test:(please contact us to get the IES file)

26W 360 rotatable COB LED downlight

More pictures:

26W 360 rotatable COB LED downlight

Rotatable:

26W 360 rotatable COB LED downlight

Lighting:

26W 360 rotatable COB LED downlight

Packing:

26W 360 rotatable COB LED downlight26W 360 rotatable COB LED downlight
