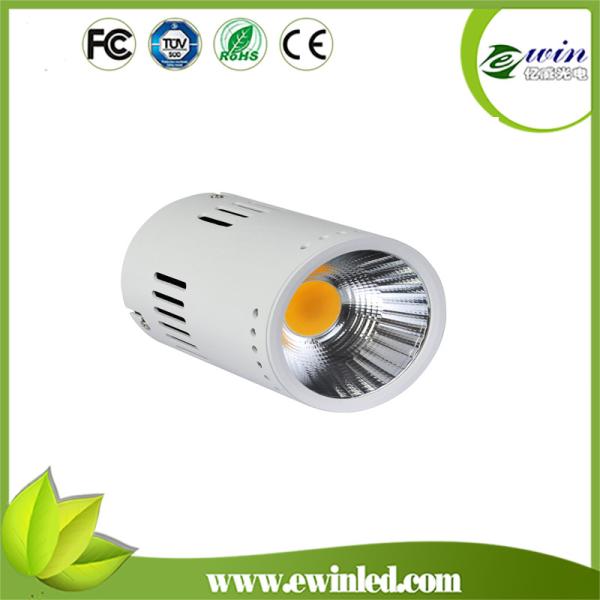

super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty
super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty
Specifications
Place of Origin :
china
Brand Name :
EWIN
Certification :
CE ROHS
Model Number :
EW--SCL-COB-20W
Light Source: :
LED
Item Type: :
Downlights
LED Light Source: :
LED
Warranty(Years): :
3
Input Voltage(V): :
AC100-277V 50/60Hz
Lamp Power(W): :
20
Lamp Luminous Flux(lm): :
2500lm.
Lamp Luminous Efficiency(lm/w): :
95
CRI (Ra>): :
80
Color Temperature(CCT): :
2700-3200K/ 4000-4500K/ 6000-6500K
Working Temperature(℃): :
-20 - 50
Working Lifetime(Hour): :
50000
watts: :
3W-50W are available
Lamp Body Material: :
Aluminum
IP Rating: :
IP44
MOQ :
10pcs
Price :
24-72.3
Packaging Details :
Card box with EPE protect. Box for each lamp:162x162x230mm;2.5kg
Delivery Time :
usually 7-10 working days
Payment Terms :
T/T, Western Union
Supply Ability :
5000PCS/Month
Input Voltage(V) :
100-277vAC/180-270vAC, 50-60hz
Lamp Luminous Flux(lm) :
1800-1900lm
Lamp Luminous Efficiency(lm/w) :
100
CRI (Ra>) :
82
Working Lifetime(Hour) :
50,000+hrs.
Install Style :
Downlights
Description

super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty

Product Overviews

1.Product features

LED power20W
cob chips Epistar 462pcs
Output2200-2500lm
Beam angle30 or 50 degree
Input voltageAC100-240V
Frequency Range50-60HZ
CRI>82
Working Temperature-40°c-65°c
warranty 3 years
Color of housingAluminum,white ot black
certificatesCE/ROHS/GS/SAA/SASO
Certificate

CE/ROHS/ERP/SAA/SASO/GS

2.COB parameter

PCBCeramic
Chip size14*28mil
Output2200-2500lm
Chip Qty300pcs
CRI>82
Voltage26-28vDC
Current700mA
Brand optionsCree/brigelux/Citizen


3.Driver parameter

BrandLifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC
InputAC100-240vAC
Output26-28vDC,700mA
Power Factor0.9-0.99
Power Efficiency88%
CertificateEMC/TUV/UL/CE/CQC/PSE
DimmableTriac /Dali /Wi-Fi available

4.Dimension
super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty

Data Sheet:

Part No.ColorCCTOutput
Size(mm)
EW-SCL-COB-20W-WWWarm White2700K-3500K2200-2300lm

φ120 H155

EW-SCL-COB-20W-NWNatural white4000K-4500K2300-2400lm
EW-SCL-COB-20W-CWCool White5500K-6500K2400-2500lm


Test Report(Please contact us to get the IES files):

(Note:The beam angle is only about 1/2 output of the all illuminated)
super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty

More products

super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warrantysuper bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warrantysuper bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warrantysuper bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty

Packing&shipping

EPE Cotton and hard board protect: super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty

super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty
More Pictures:
super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty


Test Report(Please contact us to get the IES files):

(Note:The beam angle is only about 1/2 output of the all illuminated)
super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty

Packing&shippingsuper bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty
super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty
super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty
super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty

EPE Cotton and hard board protect: super bright 120lm/w 20w 2500lm Round surface mounted LED downlight with 3 years warranty
