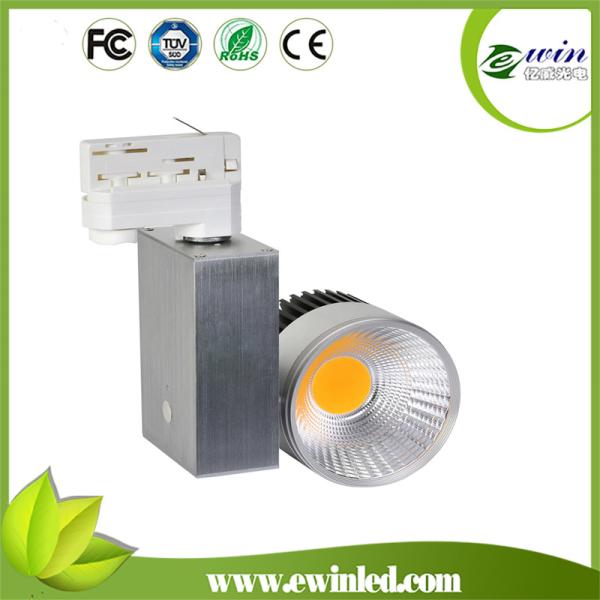

15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting
15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting
Specifications
Place of Origin :
china
Brand Name :
EWIN
Certification :
CE ROHS
Model Number :
EW-SCL-COB-15W
Light Source: :
LED
LED Light Source: :
cob chips
Warranty(Years): :
3
Input Voltage(V): :
100-277
Lamp Power(W): :
15
Lamp Luminous Flux(lm): :
1700-2000
Lamp Luminous Efficiency(lm/w): :
120
CRI (Ra>): :
82
Color Temperature(CCT): :
Pure White
Working Temperature(℃): :
-40 - 45
Working Lifetime(Hour): :
50000
Lamp Body Material: :
Aluminum
color of housing: :
white black aluminum
power factor: :
0.90-0.98
power efficiency: :
0.85
track adaptor: :
2-way 3-way 4-way
SDCM: :
<4
Frequency range :
50-60Hz
beam angle: :
30 or 50 degree
Item Type: :
Track Lights
MOQ :
10pcs
Price :
78
Packaging Details :
Packaging Details: EPE Cotton protect; Box lamp:355*160*280mm; 6 pcs in one carton;:725*295*500mm; D
Delivery Time :
usually 7-10 working days
Payment Terms :
T/T, Western Union
Supply Ability :
5000PCS/Month
Description

15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting

1. Product features

LED power 15W
Lamp consumption 17W
Output 1700-2000lm
Beam angle 30° /50°
Input voltage 100-277vAC
Frequency Range 50-60HZ
CRI >82
Working Temperature -45°C-65°C
Storage Temperature -25°C-65°C
Color of Frame white/black/silver
Lifespan 50000hrs
Certificate CE/ROHS/ERP/SASO/GS

2. COB parameter

PCB Ceramic
Chip size 14*28mil
Output 2000-2400lm
Chip Qty 220pcs
CRI >82
Voltage 30-33vDC
Current 500mA(Max 1320mA)
Brand options

Gosun/Cree/bridgelux/Citizen

3. Driver parameter

Brand options Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC
Input 100-270vAC
Output 27-42vDC,350mA
Power Factor 0.9-0.99
Power Efficiency 86%
Certificate CE/TUV/UL/SAA/PSE/CB/CQC
Dimmable Triac /Dali/WI-FI available

4.Data Sheet

Part No. Color CCT Output
EW-SCL-COB-15W-WW Warm White 2900K-3200K 1700-1800lm
EW-SCL-COB-15W-NW Natural white 3900K-4200K 1800-1900lm
EW-SCL-COB-15W-CW Cool White 5900K-6200K 1900-2000lm
Dimension

15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting


Packing:

15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting

More Pictures:

15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting

15W wholesale cheap commercial led track light, Dimmable Focusing Led Track Lighting
