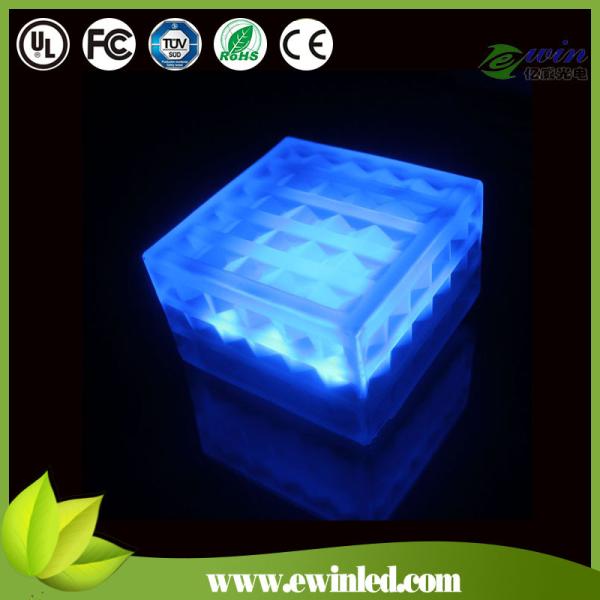

2.6W 300*300mm 24V IP67 Glass recessed led tile light LED Brick Lights (300*300mm)
2.6W 300*300mm 24V IP67 Glass recessed led tile light LED Brick Lights (300*300mm)
2.6W 300*300mm 24V IP67 Glass recessed led tile light LED Brick Lights (300*300mm)
2.6W 300*300mm 24V IP67 Glass recessed led tile light LED Brick Lights (300*300mm)
2.6W 300*300mm 24V IP67 Glass recessed led tile light LED Brick Lights (300*300mm)
2.6W 300*300mm 24V IP67 Glass recessed led tile light LED Brick Lights (300*300mm)
Specifications
Brand Name :
EWIN
Model Number :
EW-LB30*30CM
Place of Origin :
china
Certification :
CE ROHS
Rated Power :
2W
Light Type :
Fluorescent
Protection Level :
IP65
Voltage :
DC24,DC12V
MOQ :
10pcs
Price :
15.8-78.6
Packaging Details :
LED tile packing: Standard export packing
Delivery Time :
7-10day after receiving your payment
Payment Terms :
T/T, Western Union
Supply Ability :
10000set/Months
Description

2.6W 300*300mm 24V IP67 Glass recessed led tile light

Product Description

LED Brick Lights

Size: 300*300*65mm
LED: 423PCS LEDs(DIP or SMD optional)
Input voltage: DC24V / AC220V
Color: R/G/B/Y/W/
Beam Angle: 60°
IP Rate: IP67
LED Drive: Constant Current Output
Housing: Stainless steel body or Aluminum alloy body, tempered glass cover

300mm*300*65mm LED Brick Lights
600mm*600*65mm LED Brick Lights
500mm*500*65mm LED Brick Lights
200mm*200*65mm LED Brick Lights
200mm*300*65mm LED Brick Lights

RGB toughened glass led ceiling tile

Custom-made sizes are welcome

Product Description

Name: 300x300mm rgb Led ceiling tile
Model: EW-LB30*30CM
Led source: SMD5050
Dimension: 300×300×70mm(Can be customized )
Color: RGB( Red, yellow, blue, green,white is available)
Input voltage: DC 24V
Power: 16.8W
Led current: 702mA
Led Quantity 234pieces
Beam angle: 120°
Waterproof degree IP68(with two times waterproof process)
Working environment 20° C ~ +65° C

Application:
Pedestrian Mall, Square, Plaza, Club, Hotel, Garden, Beach, large civicism square, fountain & garden sight lighting. (indoor or outdoor is available)

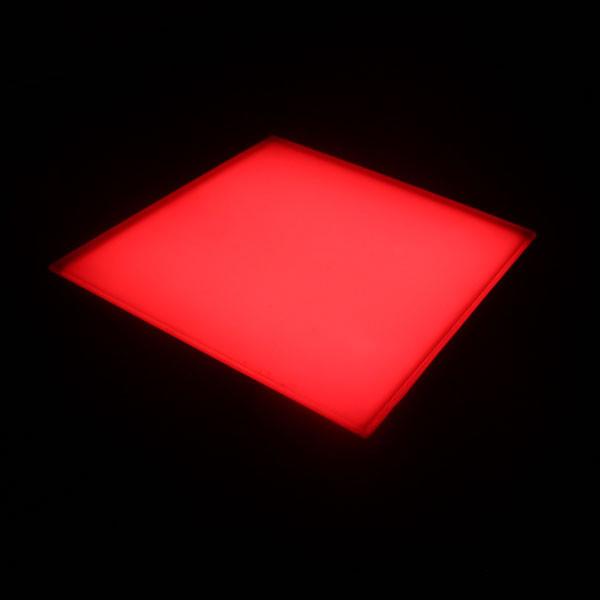

Red(single color)color toughened glass led floors

Name: 300x300mm Red color Led ceiling tiles
Model: EW-LB30*30CM
Led source: CREE Chip
Dimension: 300×300×70mm(Can be customized )
Color: Red, yellow, blue, green,white is available
Input voltage: DC 24V
Power: 5.6W
Led current: 230mA
Led Quantity 78pieces
Beam angle: 120°
Waterproof degree IP67(with two times waterproof process)
Working environment 20° C ~ +65° C

Application:
Pedestrian Mall, Square, Plaza, Club, Hotel, Garden, Beach, large civicism square, fountain & garden sight lighting. (indoor or outdoor is available)

LED brick lights feature:
1. LED brick lights Size: 300mm*300*65mm / 600mm*600*65mm / 500mm*500*65mm / 200mm*200*65mm / 200mm*300*65mm, CUSTOMIZED LED brick Light For your Project.
2. LED brick lights Power supply: Unique switch and constant current source technology to ensure the stable working of each LED.
3. LED brick lights cover material: Tempered glass. LED brick lights body Material: Stainless steel.
4. LED brick lights PCB: Excellent heat conductivity aluminum, coefficient of heat conductivity≥ 2.0W/mk
5. LED brick lights light source: SMD LEDs / DIP F5 LEDs as a light source, long life-span, low power consumption and pure color, pollution ect advantages.
6. LED brick lights Visibility distance: 800m.
7. LED brick lights Color effects: R/G/B/Y/W/WW/RGB
8. Input Voltage: AC/DC12V, 24V,
9. Controller: DMX controller/off control.
10. LED brick lights Protection grade/IP rate: IP67. Protection grade is able to reach IP67 and adapt different temperature and humidity evironment in inddoor or outdoor.
11. LED brick lights Working Temperature: -20° ~65°

LED brick lights Application Place: Squares, Parks, Gardens, Paths, Pavement, Paving stones, steps, landscapes and other ground decorations.

Meanwhile, we can design the flash animation effect of lighting, and installation of wiring diagrams for you.
