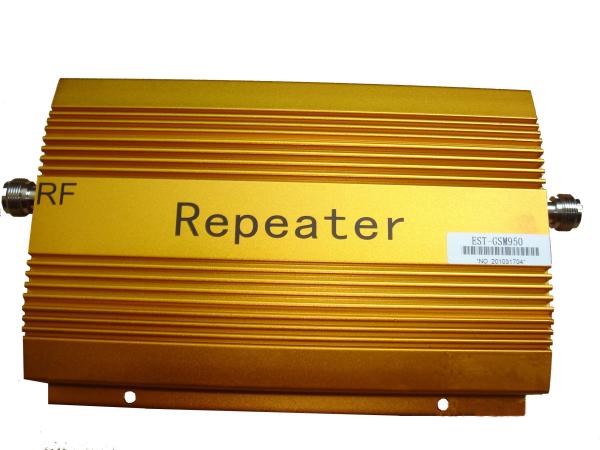

Outdoor Cell Phone Signal Repeater
Outdoor Cell Phone Signal Repeater
Specifications
Place of Origin :
China
Brand Name :
EST
Certification :
CE&ROHS
Model Number :
EST-GSM950
MOQ :
1PC
Packaging Details :
neutral packing
Delivery Time :
1-3 working days
Payment Terms :
100% before shipment
Supply Ability :
500pcs/week/J
Product Name :
Cell Phone Signal Repeater
Frequency range :
Uplink:824—849MHZ Downlink 869-894MHz
Export power (Po) :
≥17dBm
Pass band ripple :
≤3dB
Power supply :
AC110～240V 45～55Hz
coverage area :
200 m2
Description

Outdoor / indoor Cell Phone Signal Repeater With 200m² Coverage Area

Description

A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor ctromagnetism environments, protract cellular battery life and reduce radiation of cellphones.


Specification

Frequency range

Uplink:890—915MHZ
Downlink 935-960MHz

Gain ( dB)

Uplink Gp≥50 Downlink Gp≥55

Export power (Po)

≥17dBm

Pass band ripple

≤3dB

I/O impedance

50Ω/N connector

Noise figure

≤4dB

Transmission Delay

≤0.5μs

Ambient temperature

-10℃～60℃

Power supply

AC110～240V 45～55Hz

Size

220 x 140 x 40 mm

Reliability

To the GB6993-86 standard

Electromagnetic
compatibility

To the ETS300 694-4 standard

Function

a) Power supply LED denote
b) Export power LED denote

coverage area

200 m2




Accessories


SelectionOutdoor antenna use 7 unit yagi type antenna, indoor antenna use board or rooftop antenna and sig

nal wire use coaxial-cable.
Packing list
Main unit 1pc
Power supply 1pc
User manual 1pc

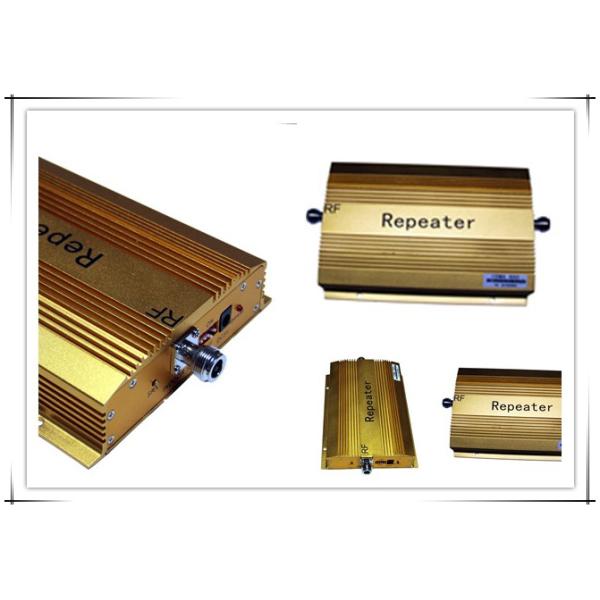

Outdoor Cell Phone Signal Repeater


Outdoor Cell Phone Signal Repeater
