Jinko Warehouse Solar Panel 550W 590W 600W New Price Tiger Pro Neo Half Cut N Type Solar Panel for Home

Specifications

Brand Name :

Jinko

Model Number :

JKM545M-72HL4-V

Place of Origin :

Guangdong, China

Cell size :

182mmx182mm

Type :

PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, hbc, BIPV, Flexible

Panel Dimensions :

2274mm*1134mm*35mm

Panel Efficiency :

21.13%

Glass :

3.2mm AR Coating Tempered Glass

Junction Box :

IP68,with Bypass Diodes

Application :

Solar Power System

OEM Order :

Acceptable

Brand :

DAWN

Solar cell :

Half Cut Cell

Size :

2274*1134*35mm

Product name :

Half Cell Monocrystalline Solar Panel

Weight :

28kg

Name :

Solar Panels 550 Watt

MOQ :

10000 watts

Price :

$0.10-0.12 / watt

Description

Product Description

Tiger Pro 72HC 530-550 Watt MONO-FACIAL MODULE P-Type Solar Panel

Cell Type	P type Mono-crystalline
NO.of Half-cells	144 (6×24)
Dimensions	2274×1134×35mm (89.53×44.65×1.38 inch)
Weight	28 KGa (61.73 lbs)
Front Glass	3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Junction Box	IP68 Rated
Frame	Anodized Aluminium Alloy
Output Cables	TÜV 1x4.0mm2,(+) 400mm, (-) 200mm or Customized Length

KEY FEATURES

Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.

Longer Life-time Power Yield
0.55% annual power degradation and 25 year linear power warranty.

Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.

Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.

Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance.

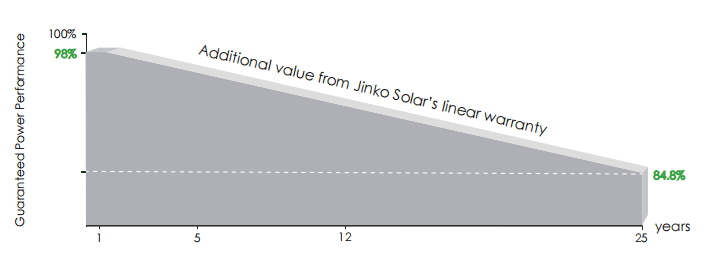

LINEAR PERFORMANCE WARRANTY
20 Years Product Warranty
25 Years Linear Power Warranty
0.55% Annual Degradation Over 25 years

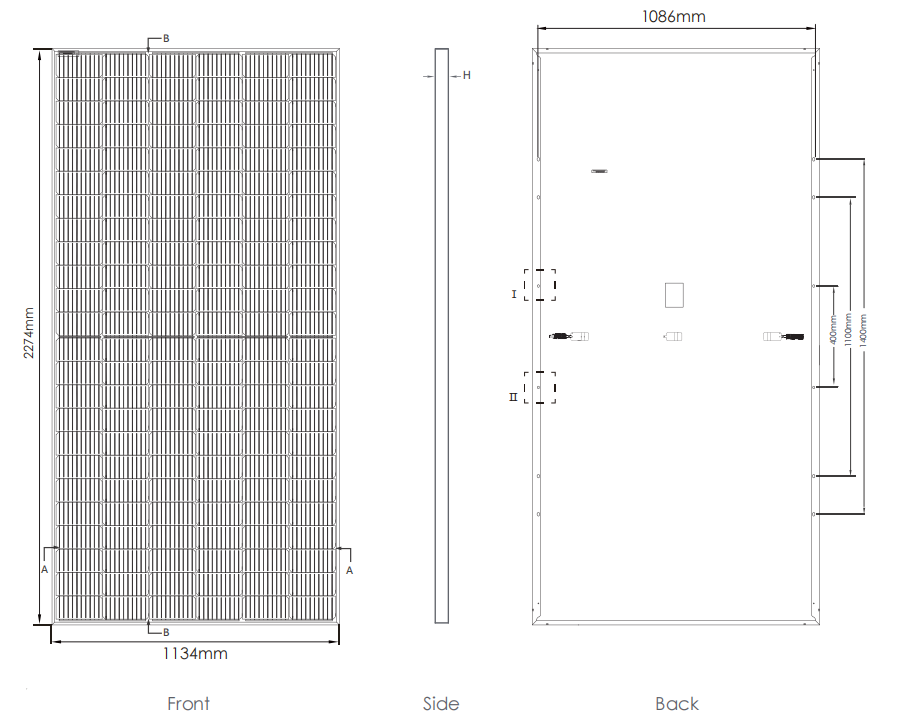

ENGINEER DRAWING

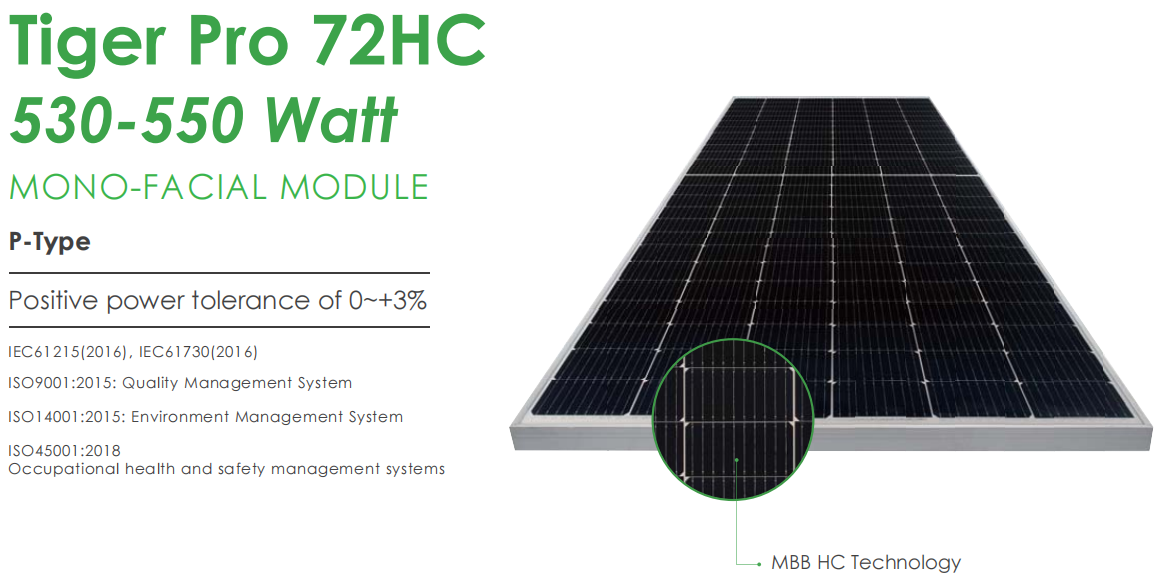

Tiger Pro 72HC 530-550 Watt MONO-FACIAL MODULE P-Type Solar Panel

Electrical Performance&Temperature Dependence

Tiger Pro 72HC 540 Watt MONO-FACIAL MODULE P-Type Solar Panel

Product Parameter

Module Type	JKM530M -72HL4(-V)		JKM535M -72HL4(-V)		JKM540M -72HL4(-V)		JKM545M -72HL4(-V)		JKM550M -72HL4(-V)
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power Pmax.(Wp)	530	394	535	398	540	402	545	405	550	409
Maximum Power Vmp(V)	40.56	37.84	40.63	37.91	40.70	39.08	40.80	38.25	40.90	38.42
Maximum Power Imp(A)	13.07	10.42	13.17	10.50	13.27	10.55	13.36	10.06	13.45	10.65
Open-circuit Voc(v)	49.26	46.50	49.34	46.57	49.42	46.65	49.52	46.74	49.62	46.84
Short-circuit Isc(A)	13.71	11.07	13.79	11.14	13.85	11.19	13.94	11.26	14.04	11.33
Module Efficiency	20.55%(STC)		20.75%(STC)		20.94%(STC)		21.13%(STC)		21.33%(STC)
Operating Temperature(℃): -40℃~+85℃
Maximum Series Fuse Rating: 25A
Maximum System Voltage: 1000/1500VDC (IEC)
Temperature Coefficients of Pmax: -0.30%/℃
Power Tolerance: 0~+3%
Temperature Coefficients of Voc: -0.25/℃
Nominal Operating Cell Temperature(NOCT): 45±2℃
Temperature Coefficients of Isc: 0.046%/℃

STC: Irradiance 1000W/m2 Cell Temperature 25°C AM=1.5

NOCT: Irradiance 800W/m2 Ambient Temperature 20°C AM=1.5 Wind Speed 1m/s

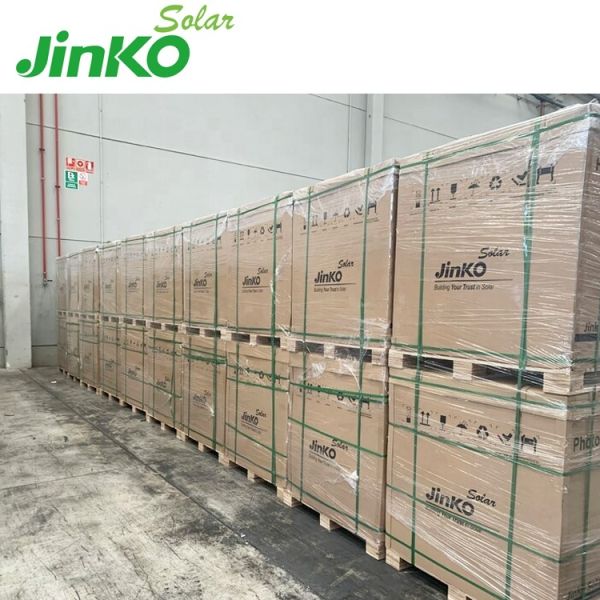

Packing/Packing list

PACKAGE CONFIGURATION
Model	JKM530M-72HL4-JKM550M-72HL4
Modules per box	31pcs/pallets, 62pcs/stack
Modules per 40' HQ container	620PCS

Certifications
