Specifications
Place of Origin :
Anhui, China
Model Number :
SUN-16K-SG01LP1-EU
Brand Name :
Deye
Input Voltage :
150-425V
Output Voltage :
220/230V
Output Current :
72.7/69.6A
Output Frequency :
50Hz/60Hz
Output Type :
Single
Size :
464*763*282mm
Type :
DC/AC Inverters
Inverter Efficiency :
97.60%
Weight :
52kg
Ready Stock in China :
SUN-16K-SG01LP1-EU | 16kW | Single Phase Solar Inverter
Feature :
IP65 | Three Phase | 3 MPPT | Hybrid Inverter | Low Voltage Battery
DEYE SE-G5.1 Pro 5 kWh :
dey 16kw hybrid inverter (Mixed 50pcs Order)
Battery type :
Lithium-ion 5.1kWh Battery
51.2V 100Ah 5.1kWh Lifepo4 Battery :
SE-G5.1 Pro-B Low Voltage Storage Battery
deye 16kw 1 phase hybrid inverter :
deye 16kw hybrid inverter
deye hybrid inverter :
16Kw Single Phase Hybrid Inverter
Installation Style :
Wall-mounted
Max Efficiency :
97.6%
Operating Temperature Range (℃) :
-45~60℃, >45℃ Derating
MOQ :
1 piece
Price :
$2,519 / piece
Description
Product Description

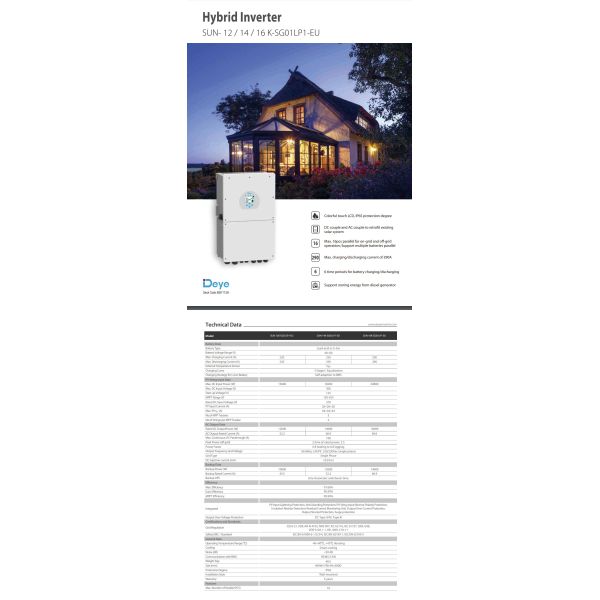

Specification

SUN-16K-SG01LP1-EU | 16kW | Single Phase

* Models: SUN-16K-SG01LP1-EU
* Battery Type: Compatible with both lead-acid and lithium-ion batteries
* Battery Voltage Range: 40-60V
* Charging Strategy: Self-adaption to BMS (Battery Management System)
* Max. Charging/Discharging Current: Up to 290A
* Number of Battery Inputs: 2
* PV Input Data: * Max. PV Input Power: SUN-12K (15600W), SUN-14K (18200W), SUN-16K (20800W)
* Max. PV Input Voltage: 500V
* MPPT Voltage Range: 150-425V


* AC Input/Output Data: * Rated AC Input/Output Voltage: 220/230V
* Power Factor Adjustment: 0.8 leading to 0.8 lagging
* Max. AC Input/Output Current: Up to 80A
* Max. Continuous AC Passthrough (grid to load): 2 times rated power for 10 seconds


* Efficiency: * Max. Efficiency: 97.6%
* Euro Efficiency: 96.5%
* MPPT Efficiency: >99%
* Total Current Harmonic Distortion (THDi): <3% of nominal power


* Protection Mechanisms: Includes integrated DC polarity reverse connection protection, AC output overcurrent protection, AC output overvoltage protection, AC output short circuit protection, thermal protection, and more.
* Operating Conditions: * Temperature Range: -40 to +60°C (derating above 45°C)
* Humidity: 0-100%
* Altitude: Up to 2000m
* Noise Level: <50 dB
* Cooling: Intelligent air cooling


* Physical: * Cabinet Size: 464×763×282 mm (excluding connectors and brackets)
* Weight: 52 kg
* Warranty: 5 years, extendable to 10 years depending on installation site
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery

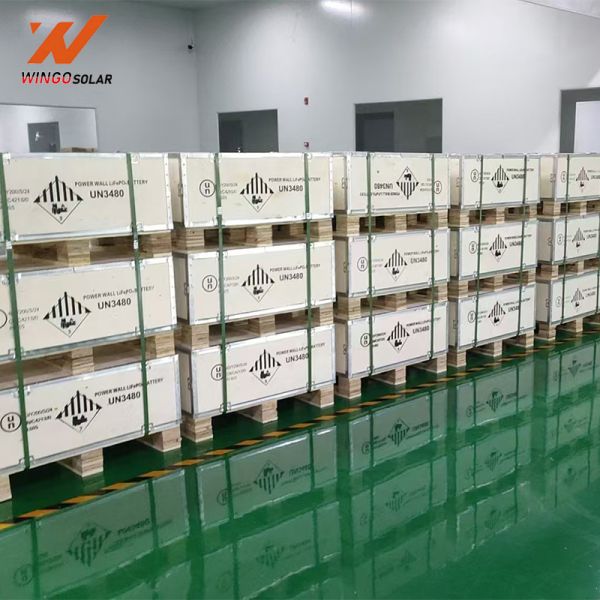

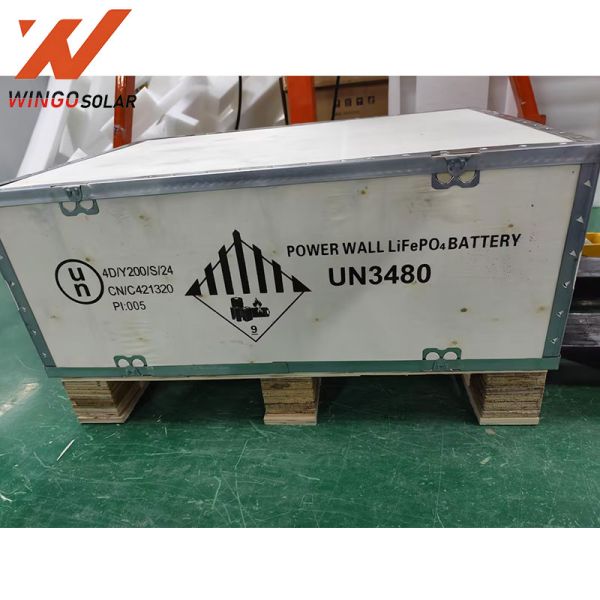

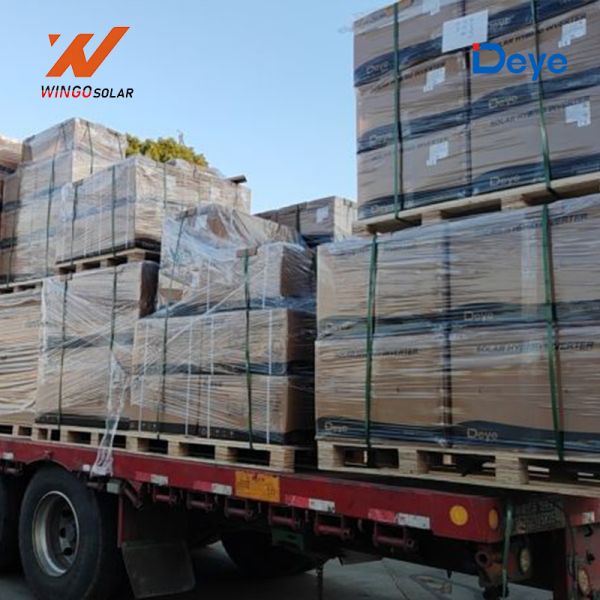

Packing & Delivery
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery
Company Profile
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery
Anhui Wingo Technology Co., Ltd. is a company integrating R&D, production and sales. It's located in Hefei, the capital city of Anhui province, China. There are about 150 employees, including 20 R&D personnel.The company's main business scope is the production of electric bicycles, which can realize OEM production for customers and also meet the customized needs of them.We are an authorized agent of some well-known brands.Anhui Wingo Technology Co,. Ltd. has always pursued the corporate culture and business philosophy of " integrity, win-win, efficiency, and gratitude", and will consistently provide global customers with the best products and best services, and become the most trusted cross-board service company for customers.
Deye Low Voltage Single Phase 16kW Hybrid Inverter 1-Phase SUN-16K-SG01LP1-EU 48V/51.2V 100Ah 5kWh Lithium Battery
FAQ
1. who are we?
We are based in Anhui, China, start from 2020,sell to Western Europe(30.00%),South America(20.00%),Southeast Asia(20.00%),North America(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Panels, Solar Inverters, Solar Mounting Bracket, Energy Storage Battery, Solar Energy System

4. why should you buy from us not from other suppliers?
Brand agent, stable product supply chain and transportation logistics partner, rich export experience

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
