Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Specifications
Battery Type :
LiFePO4
Model Number :
SE-G5.1 Pro-B
Brand Name :
Deye
Place of Origin :
Guangdong, China
System Voltage :
51.2 V
Output Power Range :
5-10kW
Dimension (L*W*H) :
54*44*15
Weight :
45kg
System Type :
Rack-mounted
Type :
All-In-One
Communication Port :
Rs485, RS-232, CAN
Protection Class :
IP20
Grid connection :
Off grid, Hybrid grid
Product name :
lithium battery
Operating Voltage :
43.2~57.6V
Nominal Energy :
5.12kwh
Usable Energy :
4.6kwh
Recommend Depth of Discharge :
90%
Dimension :
440*133*500mm
Master LED Indicator :
5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting)
IP Rating of Enclosure :
IP20
Operating Temperature :
Charge: 0~55℃ ( Optional heating: -20℃~55℃ ), Discharge: -20℃
Scalability :
Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)
MOQ :
2 pieces
Price :
$988-1,018 / piece
Description
Product Description

Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery

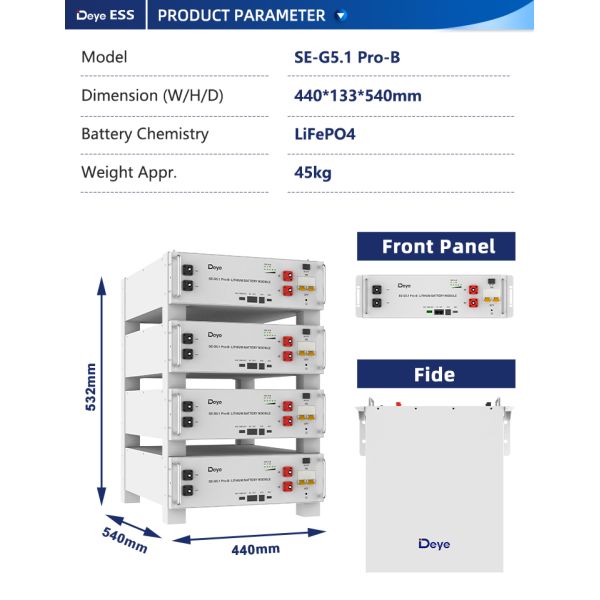

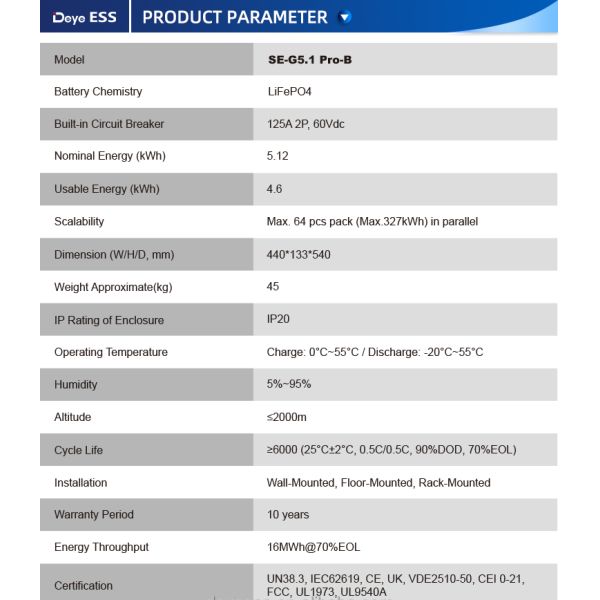

Model SE-G5.1 Pro
Battery Chemistry 100

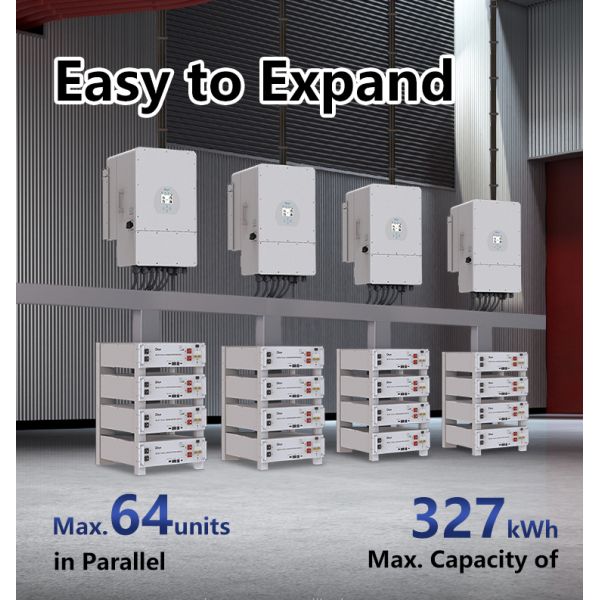

Scalability Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)
Nominal Voltage (V) 51.2
Operating Voltage(V) 43.2~57.6
Energy (kWh) 5.12
Recommend Depth of Discharge 90%
Dimension (W/H/D, mm) 445*133*430
Weight Approximate(kg) 44
Master LED Indicator 5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting)
IP Rating of Enclosure IP20
Operating Temperature Charge:0~55℃ / Discharge:-20℃~55℃
Storage Temperature 0℃~35℃
Humidity 5%~95%
Altitude ≤2000m
Cycle Life ≥6000(25℃±2℃,0.5C/0.5C,70%EOL)
Installation 19-inch standard cabinet, cabinet depth ≥600mm / with rack
Communication Port CAN2.0, RS485
Warranty 5-10 years
Certification UN38.3, UL1973, IEC62619, CE, CEI 0-21
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Related products
Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery
Packaging & Shipping

Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery

Certifications

Deye 51.2V100Ah Rack Mount Lithium Battery 5kwh 10kwh 15kwh 20kwh 30kwh Low Voltage Deep Cycle 48V Lithium Battery

FAQ

Q1:Is the battery BMS included?

A:Yes.It's advanced BMS included and very safe to use.

Q2. Can I have a sample order?

A. Yes, sample order is welcome to test and check quality.

Q3. What about the lead time?

A. Samples needs 2-3 days, mass production time needs 2-3 weeks.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q7.How about warranty?

A:5-10 years warranty.

Any Other Question Please Feel Free to Contact Us.
