High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
Specifications
Brand Name :
DAWN
Application :
Power Tools, Home Appliances, Boats, Golf Carts, SUBMARINES, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, Home Appliances
Model Number :
DL-480V100AH
Weight :
428kg
Place of Origin :
Guangdong, China
Nominal Energy (KWh) :
50KWH
Nominal Voltage(V) :
480V
Operation Voltage (V) :
400-545V
Max. Continuous Charging Current(A) :
100A
Max. Continuous Discharging Current(A) :
100A
Cycle Life :
≥6000times@90%DOD
Communication Mode :
CAN
Operating Temp. :
Discharging:-20℃~65℃
Warranty :
5years
Anode Material :
LFP
Battery Size :
52AH
The charging ratio :
98%
The discharge rate :
95%
Storage Type :
Dry
Electric Energy :
50000 Wh
MOQ :
2 sets
Price :
$7,579-7,979 / set
Description

Energy Storage Solar Home Inverter Systems LiFePO4 Battery

  1. High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions

Main Features:

1.Advanced A grade cells,more than 6000 cycle times.
2.Highest energy efficiency.
3.Flexible investment, meet different energy requirements.
4.Easy to carrry and install.
5.Safer performance,batteries have passed different safety testings 6.Growatt,Goodwe,Deye,Luxpower,Megarevo,etc hybrid inverters BMS compatible.


High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions

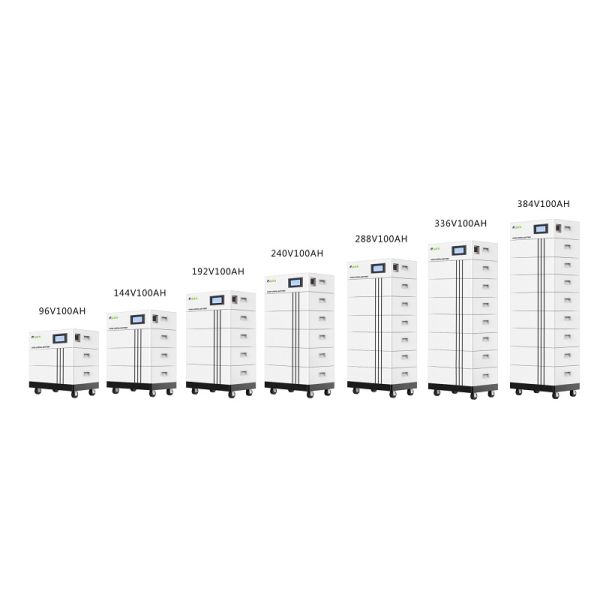

Model NO.

DL-96V

100AH

 DL-144V100AH DL-192V100AH DL-240V100AH DL-288V100AH

DL-

336V100AH

 DL-384V100AH DL-480V100AH

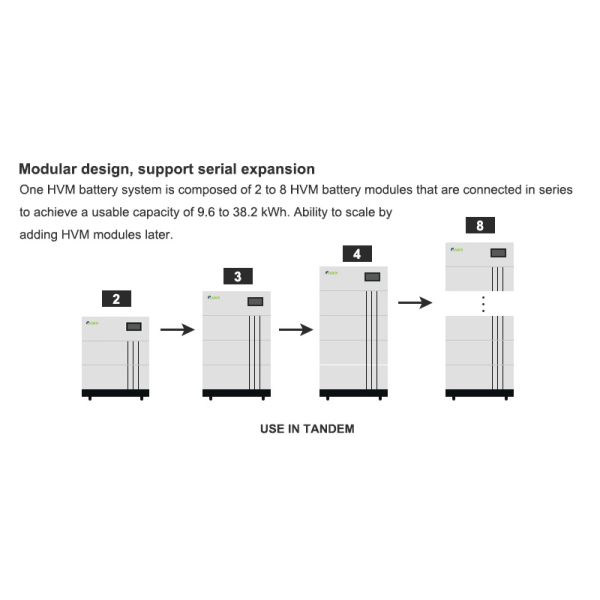

Number of Modules 2 3 4 5 6 7 8 10
Capacity

96V

100AH

144V

100AH

192V

100AH

240V

100AH

288V

100AH

336V

100AH

384V

100AH

480V

100AH
Rated Energy (KWH) 9.6KWH 14.4KWH 19.2KWH 24KWH 28.8KWH 33.6KWH 38.4KWH 48KWH
Nominal Voltage(V) 96V 144V 192V 240V 288V 336V 384V 480V
Operating Voltage(V) 80-109V 120-164V 160-219 200-274 240-328 280-383V 320-438V 400-545V

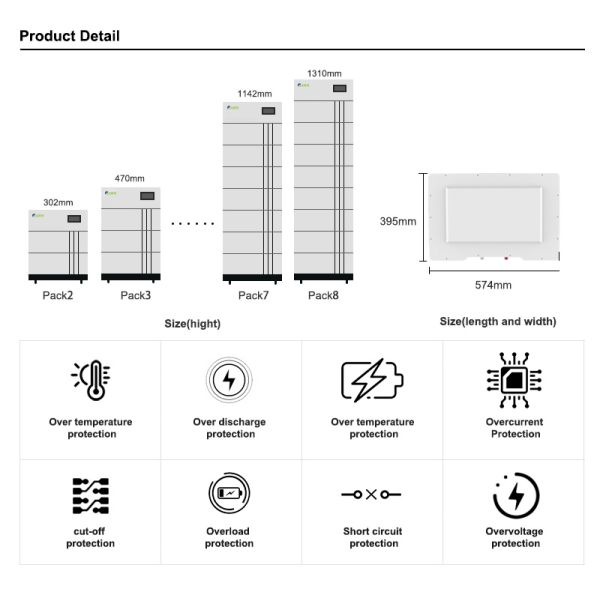

Dimension(mm)

L: 574

W: 395

H: 302

L: 574

W: 395

H: 470

L: 574

W: 395

H: 638

L: 574

W: 395

H: 806

L: 574

W: 395

H: 974

L: 574

W: 395

H: 1142

L: 574

W: 395

H: 1310

L: 574

W: 395

H: 1510
Net Withg(KG) 108KG 148KG 188KG 228KG 268KG 308KG 348KG 428KG
DOD ≥90%
Cycle Life >6000 Times
Comminication CAN
Charge Temperature 0~60°C
Discharge Temperature -20°C~60°C
Mounting Method Floor Stand
Warranty 5 years

Welcome to contact us:

+852 6083 5992 (Whatsapp) +86 130 5808 9665 (Wechat & Telegram)
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions

High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions


High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions
Certificates:



High Efficiency 480V LiFePO4 Battery 100AH 50KWH for Commercial Use with Reliable High Voltage Lithium Solutions


FAQ:

Q: Are you trading company or manufacturer?
A: We are original factory with more than 10 years' experiences.

Q: Do you provide after-sales serive?
A: Yes,the warranty is 5 years, if there's any quality problem during warranty period, we can send new one as replacement.

Q: Can I order samples to test?
A: Yes,we can sell samples to you.

Q: Do you accept OEM/ODM?
A: Yes,warmly welcome.

Q:How long for lead time?
Samples is 3-5 days and bulk order is 7-15 days.

Q:Are your battery with real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3,etc.

Q: What is your term of payment?
A: We accept T/T,PayPal,Western Union and so on.
