Intelligent Physicochemical Integrated Unit with PLC and Touch Screen Control for Water Quality Management
Intelligent Physicochemical Integrated Unit with PLC and Touch Screen Control for Water Quality Management
Specifications
Brand Name :
SYS
Model Number :
Circulating Water Physical and Chemical Processor
Certification :
CE,UL
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10 Pcs/Month
Delivery Time :
30 DAYS
Packaging Details :
Export Packing
Pressure loss :
0.01MPa~0.02MPa
Final Resistance :
<0.04MPa
Safety Insulation Voltage :
5000V
Mean Time Between Failures :
50,000hours
Automatic Control System :
PLC + touch screen (optional)
Operation Control :
Fully Automatic / Manual Operation
Description

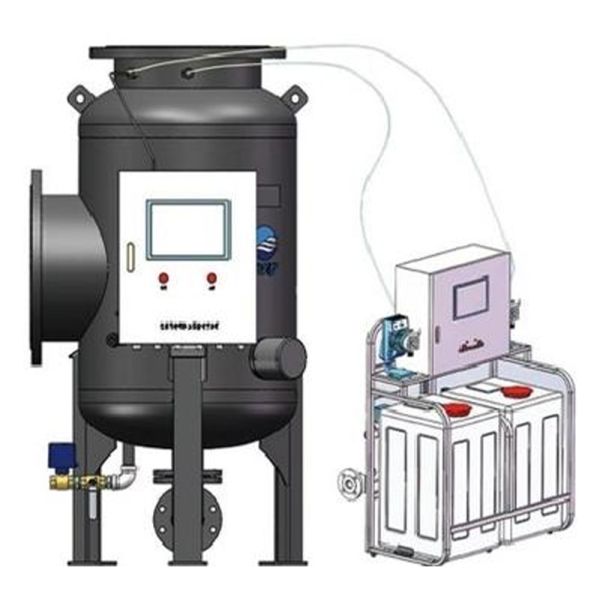

Intelligent Closed Loop Water Treatment System
Comprehensive physical and chemical water processor integrating cyclone separation, electrochemical catalysis, and intelligent dosing technologies for metallurgical industry applications.
Intelligent Physicochemical Integrated Unit with PLC and Touch Screen Control for Water Quality Management
System Overview
This innovative system forms a closed loop of "physical pretreatment—precise chemical intervention—effect feedback" that dynamically adjusts corrosion inhibitors and scale inhibitors based on online turbidity, pH, ORP, and other data. Designed for complex circulating water systems in large-scale chemical and metallurgical industries.
Technical Advantages
Integrated system comprising physical field treatment unit, chemical treatment unit, multifunctional water quality online monitoring unit, and automatic control unit.
Technical Parameters
Corrosion Rate Control Carbon Steel: <0.07 mm/year
Stainless Steel, Copper Alloy: <0.005 mm/year
Fouling Thermal Resistance Open circulating cooling water system: <3.44*10⁻⁴m²*K/W
Closed circulating water system: <0.86*10⁻⁴m²*K/W
Scale Prevention and Removal Rate >98%
Sterilization and Algae Eradication Rate >99%
Filtration Efficiency 100%
Filtration Accuracy 50~800μm (Standard: 200μm for chilled water, 300μm for cooling water)
Working Pressure 1.0MPa, 1.6MPa, 2.0MPa (selected based on system pressure)
Operation Control Fully Automatic/Manual Operation
Automatic Control System PLC + touch screen (optional)
Mean Time Between Failures (MTBF) 50,000 hours
Equipment Models
Model Inlet/Outlet Diameter Processing Flow Rate (m³/h)
SYS-80B1.0JZWH- 80 18-45
SYS-100B1.0JZWH- 100 45-70
SYS-125B1.0JZWH- 125 70-100
SYS-150B1.0JZWH- 150 100-158
SYS-200B1.0JZWH- 200 158-280
SYS-250B1.0JZWH- 250 280-440
SYS-300B1.0JZWH- 300 440-640
Application Areas
  • Cooling circulating water systems
  • Chilled water circulating water systems
  • Heating circulating water systems
  • Industrial circulating water systems
Application Scenarios
Stadiums, Data centers, Rail transit, Airports, Office buildings, Steelworks, Electric Power Plants, Colleges and universities, and more.
Intelligent Physicochemical Integrated Unit with PLC and Touch Screen Control for Water Quality Management
Company Profile
Beijing SYS Science & Technology Co., Ltd, founded in 2000, is an innovative comprehensive service provider specializing in integrated water environment governance. With 25 years of experience and 124 intellectual property rights, including 24 invention patents, SYS has completed over 5,000 circulating water projects with a total contract value exceeding RMB 1 billion.
Global Reach
Operating in more than 20 countries and regions worldwide.
Intelligent Physicochemical Integrated Unit with PLC and Touch Screen Control for Water Quality Management
Project Portfolio
SYS has successfully completed over 5,000 circulating water projects across various sectors including data centers, stadiums, rail transit, airports, and industrial facilities.
