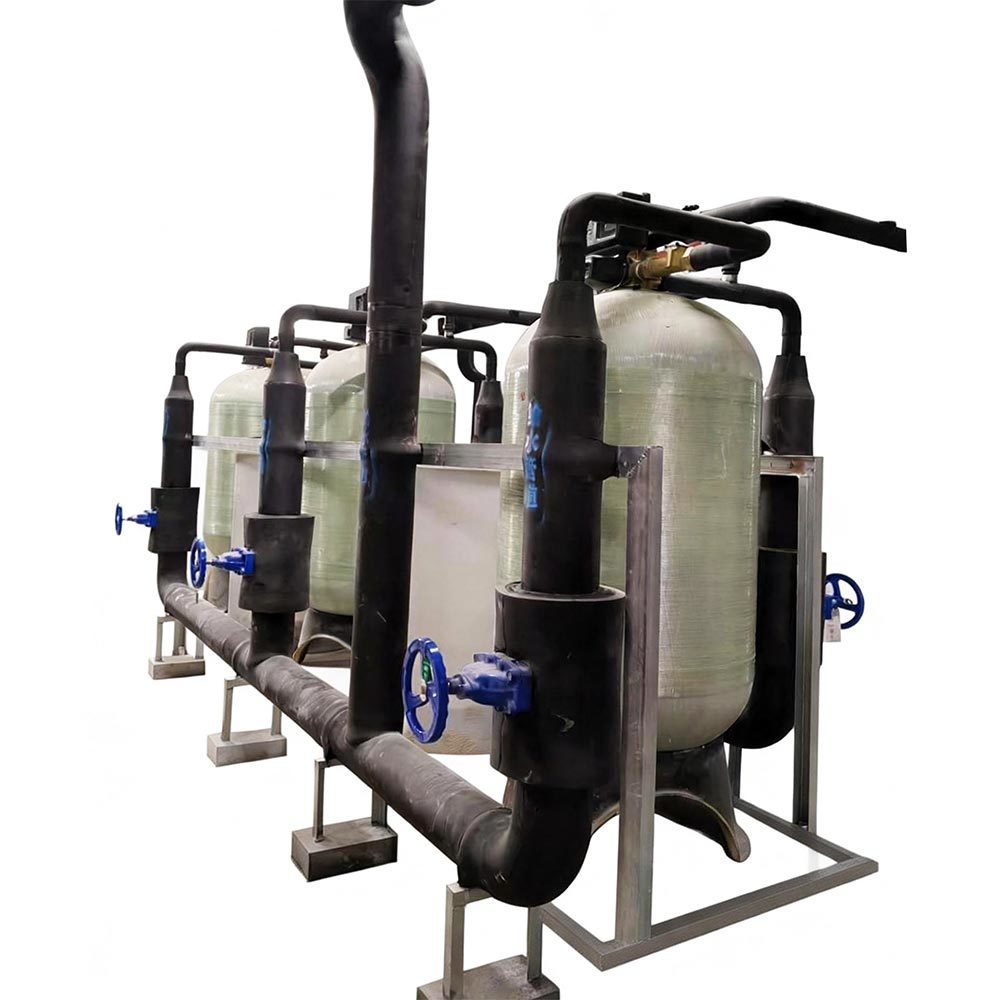

High Temperature Resistance Industrial Water Softener with Small Footprint and Low Salt Consumption
High Temperature Resistance Industrial Water Softener with Small Footprint and Low Salt Consumption
Specifications
Brand Name :
SYS
Model Number :
Water Softener
Certification :
CE,UL
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10 Pcs/Month
Delivery Time :
30 DAYS
Packaging Details :
Export Packing
Inlet Water Pressure :
0.2MPa-0.5MPa
Ambient Temperature :
5℃-50℃
Resin Type :
Strong-Acid Cation Exchange Resin
Feed Water Hardness :
Primary Sodium: <6.5mmol/L
Salt Consumption :
<100g/mmol
Output Hardness :
≤0.03mmol/L
Description
High Temperature Resistance Commercial Water Softener
Advanced water softening system designed for commercial applications with anti-scaling properties and compact footprint.
Product Overview
This automatic sodium ion exchange water softening system treats raw water with influent hardness up to 8 mmol/L, maintaining effluent hardness stably below 0.03 mmol/L to meet stringent industrial standards.
High-temperature resistant components support hot water reuse softening, making it suitable for demanding applications including dyeing and finishing machines, food sterilization, and other high-temperature processes.
The equipment operates with low noise levels and features a small footprint, allowing flexible deployment in workshops or equipment rooms to maximize space utilization.
High Temperature Resistance Industrial Water Softener with Small Footprint and Low Salt Consumption
Technical Advantages
  • Advanced automatic control system for water supply, backwashing, salt absorption, replacement, and forward washing
  • Continuous and stable water supply with fixed-flow automatic regeneration
  • Compact integrated design with soft water exchange tank and control valve
  • Multifunctional brine system with automatic salt dissolution and level adjustment
  • Uniform water distribution system for efficient resin utilization
  • Superior corrosion resistance against regenerants and harsh environments
  • Low energy consumption: self-use water volume <2%, salt consumption <100g/mmol, power consumption 10W-40W
Technical Parameters
Feed Water Hardness Primary Sodium: <6.5mmol/L; Secondary Sodium: <10mmol/L
Output Hardness ≤0.03mmol/L (for steam boilers) or customized to user requirements
Inlet Water Quality Temperature: 5℃-45℃; Ambient Temperature: 5℃-50℃
Inlet Suspended Solids <5mg/L
Inlet Iron Content ≤0.3mg/L
Inlet Water Pressure 0.2MPa-0.5MPa
Inlet Free Chlorine ≤0.3mg/L
Power Supply 220V±10, 50HZ
Resin Type Strong-Acid Cation Exchange Resin
Salt Consumption <100g/mmol
Sensor Calcium Ion-Selective Electrode (optional)
Equipment Models
Model Water Production Capacity (T/h) Operating Mode
SYS－1RT(Q) 0.5 Single valve, single tank
SYS－2RT(Q) 1 Single valve, single tank
SYS－3RT(Q) 2-3 Single valve, single tank
SYS－4RT(Q) 3-4 Single valve, single tank
SYS－5RT(Q) 4-5 Single valve, single tank
SYS－8RT(Q) 6-8 Single valve, single tank
SYS－10RT(Q) 8-10 Single valve, single tank
SYS－15RT(Q) 10-15 Single valve, single tank
SYS－18RT(Q) 15-20 Single valve, single tank
SYS－20RT(Q) 20-25 Single valve, single tank
SYS－30RT(Q) 25-30 Single valve, single tank
SYS－40RT(Q) 35-40 Single valve, single tank
SYS－50RT(Q) 40-50 Single valve, single tank
SYS－55RT(Q) 50-55 Single valve, single tank
Application Areas
This equipment is widely used in boilers, air conditioning, refrigeration systems, and other industrial or civil systems across industries including petrochemical, light industry and textile, food hygiene, hotels and restaurants.
About SYS Science & Technology
Beijing SYS Science & Technology Co., Ltd, founded in 2000, is an innovative comprehensive service provider specializing in integrated water environment governance. With 25 years of experience and 124 intellectual property rights including 24 invention patents, SYS has established a full-lifecycle integrated management service system.
Global Presence
SYS serves clients in more than 20 countries and regions worldwide.
High Temperature Resistance Industrial Water Softener with Small Footprint and Low Salt Consumption
Company Performance
SYS has successfully completed over 5,000 circulating water projects with a total contract value exceeding RMB 1 billion. In the data center sector alone, SYS has completed more than 200 projects over the past three years with a total contract value exceeding RMB 50 million.
High Temperature Resistance Industrial Water Softener with Small Footprint and Low Salt Consumption
Project Applications
System Types
Cooling circulating water systems, Chilled water circulating water systems, Heating circulating water systems, Industrial circulating water systems
High Temperature Resistance Industrial Water Softener with Small Footprint and Low Salt Consumption
Application Scenarios
Stadium, Data centers, Rail transit, Airports, Office buildings, Steelworks, Electric Power Plant, Colleges and universities, etc.
