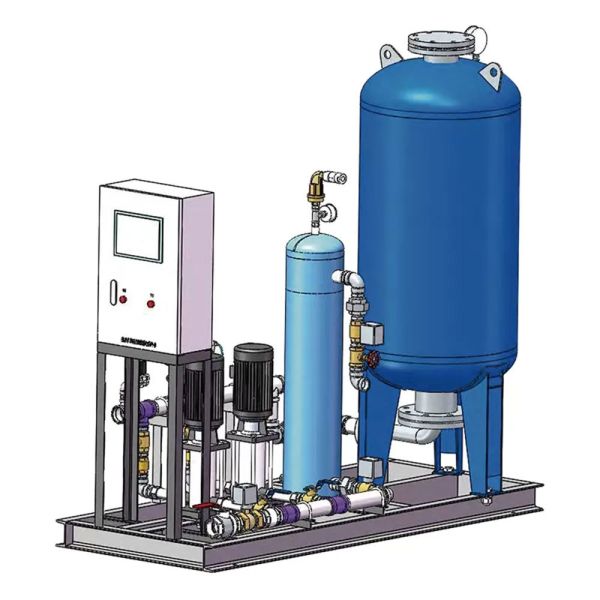

Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Specifications
Brand Name :
SYS
Model Number :
Make Up Water Degassing
Certification :
CE,UL
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10 Pcs/Month
Delivery Time :
30 DAYS
Packaging Details :
Export Packing
Diaphragm Material :
Butyl Rubber
Tank :
Vertical Pressure Tank
Operation Mode :
Fully Automatic
System Noise :
Low
Heating Efficiency :
High
Maximum Capacity :
200m³ (Single Unit)
Description
Fully Automatic Intelligent Make-Up Water Degassing System
Designed for corrosion and scale prevention with stable pressure control in circulating water systems.
System Overview
This advanced unit employs high-precision pressure sensors and variable frequency constant pressure control technology to monitor closed-loop system pressure in real time. It dynamically adjusts water supply pump speed via frequency converter to maintain system pressure within ±0.01 MPa of set value, effectively preventing pressure fluctuations from thermal expansion, contraction, leakage, or pump cycling.
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Product Features
  • Integrated pressure stabilization, automatic water supplement, drainage, and degassing functions
  • Vertical pressure tanks with butyl rubber diaphragm material
  • Dual water supplement pumps with stainless steel impellers
  • Touch control interface for fully automatic operation
  • Rugged, durable construction with water-proof and dust-proof design
  • Eliminates system gas to prevent gas blockage and ensure reliable operation
  • Prevents water pump cavitation and reduces operating noise
  • Reduces aerobic corrosion, extends equipment life, and improves efficiency
  • Adjustable degassing time and cycle parameters
  • Single unit capacity up to 200 m³ with parallel operation capability
Model Coding System
SYS DY 600 QY 1.0 G
1: Water Doctor Brand Code
2: Constant Pressure Water Supply Unit
3: Tank Diameter (mm)
4: Tank Type (QY: Pressure Tank; CY: Atmospheric Pressure Tank)
5: System Operating Pressure (0.6MPa, 1.0MPa, 1.6MPa)
6: Water Pump Control Method (G: Industrial Frequency; B: Variable Frequency)
Pressure Tank Specifications
Model Tank Diameter (mm) Tank Height (mm) Volume (L) Water Pump
SYS-DY400QY400120090Per design parameters
SYS-DY600QY6001600320Per design parameters
SYS-DY800QY8002250800Per design parameters
SYS-DY1000QY100024501500Per design parameters
SYS-DY1200QY120027502200Per design parameters
SYS-DY1400QY140029503000Per design parameters
SYS-DY1600QY160031504500Per design parameters
SYS-DY1800QY180031506100Per design parameters
SYS-DY2000QY200033507900Per design parameters
Application Areas
Cooling circulating water systems, Chilled water circulating water systems, Heating circulating water systems, Industrial circulating water systems.
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Application Scenarios
Stadiums, Data centers, Rail transit systems, Airports, Office buildings, Steelworks, Electric Power Plants, Colleges and universities, and other industrial facilities.
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Company Performance Highlights
SYS has successfully completed over 5,000 circulating water projects with a total contract value exceeding RMB 1 billion. In the data center sector alone, we've completed more than 200 projects with a total contract value exceeding RMB 50 million over the past three years.
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Global Reach
SYS serves clients in more than 20 countries and regions worldwide.
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Project Portfolio
Data Center Applications
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Stadium Applications
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Rail Transit & Landmark Projects
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Airport Applications
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Hospital Applications
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Educational Institution Projects
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Bank Applications
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Power Plant Applications
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
Other Industrial Applications
Fully Automatic Make Up Water Degassing System for HVAC and Industrial Applications with Corrosion
