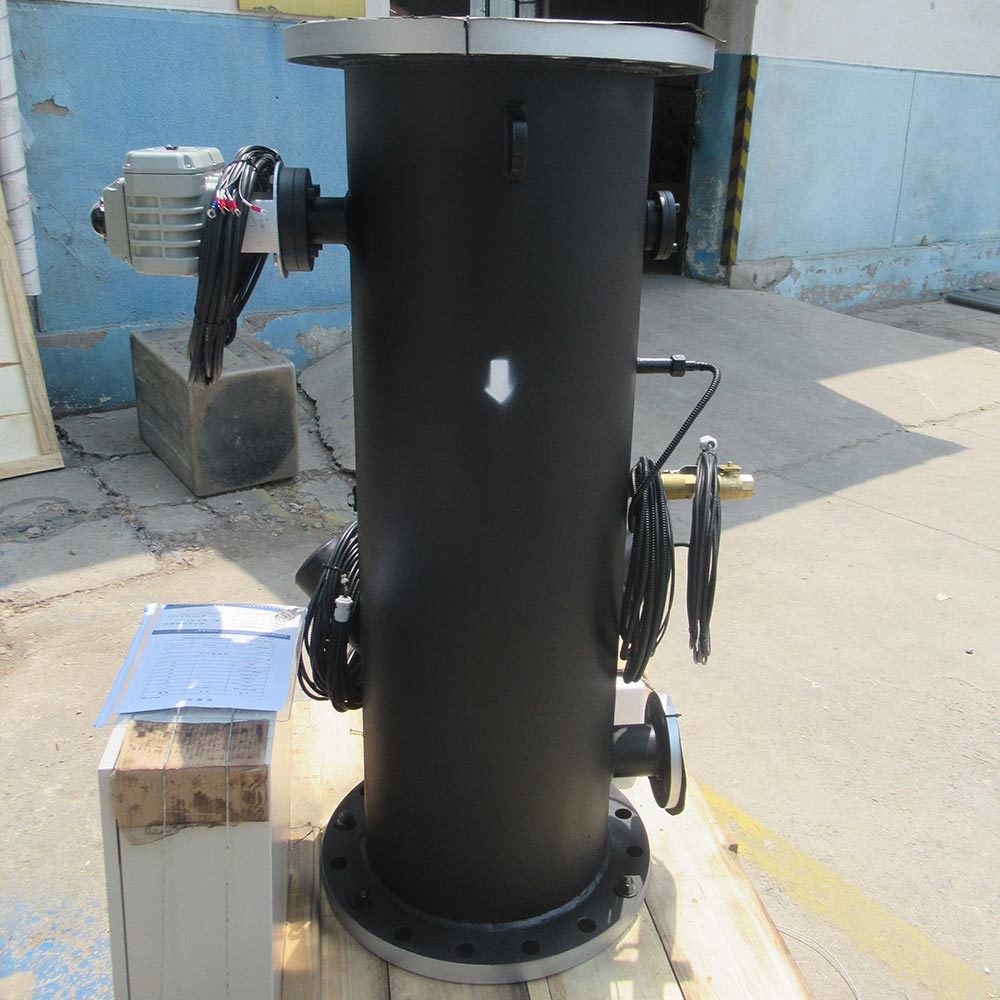

RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
Specifications
Brand Name :
SYS
Model Number :
Circulating Water RF Processor
Certification :
CE,UL
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10 Pcs/Month
Delivery Time :
30 DAYS
Packaging Details :
Export Packing
Sterilization and Algae Eradication Rate :
>99%
Equipment Material :
Carbon Steel; Stainless Steel 304
Filtration Precision :
50~800μm
Filtration Efficiency :
100%
Scale Prevention and Removal Rate :
>98%
Pressure Loss :
0.01MPa~0.02MPa
Description
Water Quality Improvement Circulators RF Compact Design
Compact RF water circulators designed to prevent pipe clogging and equipment aging while improving overall water system efficiency.
Product Overview
The radio frequency full processor addresses corrosion, scaling, microbial growth, and water quality deterioration in industrial and domestic circulating water systems. Utilizing multiple patents and proprietary technologies, it provides comprehensive water treatment with scale inhibition, corrosion inhibition, sterilization, algae elimination, and ultra purification filtration capabilities.
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
Technical Advantages
This advanced processor combines radio frequency physical field system, filtration system, and automatic monitoring system. It distinguishes itself from generic equipment through superior principles, structure, configuration, and compliance with national standards.
Technical Parameters
Parameter Specification
Corrosion Rate Control Carbon steel: <0.07mm/year; Stainless steel/copper alloy: <0.005mm/year
Fouling Thermal Resistance Open system: <3.44*10⁻⁴m²*K/W; Closed system: <0.86*10⁻⁴m²*K/W
Scale Prevention and Removal Rate >98%
Sterilization and Algae Eradication Rate >99%
Filtration Efficiency 100%
Filtration Precision 50-800μm (Standard: 200μm chilled water, 300μm cooling water)
Working Pressure 1.0MPa, 1.6MPa, 2.5MPa (system-based selection)
Pressure Loss 0.01-0.02MPa; Final Resistance: <0.04MPa
Equipment Material Main Body: Carbon Steel; Filter Body: Stainless Steel 304
Operation Control Fully Automatic/Manual Operation
Mean Time Between Failures 50,000 hours
Equipment Model Breakdown
SYS 80 _B_ 1.0 SP
1 - Water Doctor Brand Code
2 - System Master Path (DN)
3 - Temperature Range (Grade B: 0°C-70°C; Grade C: 70°C-90°C)
4 - System Operating Pressure (1.0MPa, 1.6MPa, 2.0MPa)
5 - Circulating Water RF Processor
Model Specifications
Model Nominal Diameter Processing Flow Rate (m³/h)
SYS-50L1.0SP 50 10-18
SYS-65L1.0SP 65 18-45
SYS-80L1.0SP 80 18-45
SYS-100L1.0SP 100 45-70
SYS-125L1.0SP 125 70-105
SYS-150L1.0SP 150 105-158
SYS-200L1.0SP 200 158-280
Application Areas
  • Cooling circulating water systems
  • Chilled water circulating water systems
  • Heating circulating water systems
  • Industrial circulating water systems
Application Scenarios
Data centers, stadiums, rail transit, airports, office buildings, steelworks, electric power plants, colleges and universities, and more.
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
Company Profile
Beijing SYS Science & Technology Co., Ltd, founded in 2000, is an innovative comprehensive service provider specializing in integrated water environment governance. With 25 years of experience and 124 intellectual property rights including 24 invention patents, SYS has completed over 1,000 water resources projects and 5,000+ circulating water projects worldwide.
Global Reach
SYS serves clients in more than 20 countries and regions worldwide.
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
Project Performance: Over 5,000 circulating water projects completed with total contract value exceeding RMB 1 billion. In the data center sector alone: 200+ projects completed in past three years with contract value exceeding RMB 50 million.
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
Project Gallery
Data Center Applications:
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
Stadium Applications:
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
Rail Transit & Landmark Projects:
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
Additional Industrial Applications:
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
RF Compact Cooling Tower Water Treatment Circulator with Anti-Clogging Design for Improved System Performance
