Automatic Self-Cleaning Circulating Water Processor with Inner Brush Technology, Continuous Operation, 100% Filtration Efficiency and Corrosion Rate Management
Automatic Self-Cleaning Circulating Water Processor with Inner Brush Technology, Continuous Operation, 100% Filtration Efficiency and Corrosion Rate Management
Specifications
Brand Name :
SYS
Model Number :
Circulating Water Inner Brush Processor
Certification :
CE,UL
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
10 Pcs/Month
Delivery Time :
30 DAYS
Packaging Details :
Export Packing
Pressure loss :
0.01MPa ~ 0.02MPa
Equipment Material :
Carbon Steel (Main Body)
Filtration Efficiency :
100%
Corrosion Rate Control :
<0.07 mm/year
Filtration Accuracy :
50~800μm
Working Pressure :
1.0MPa, 1.6MPa, 2.5MPa
Description

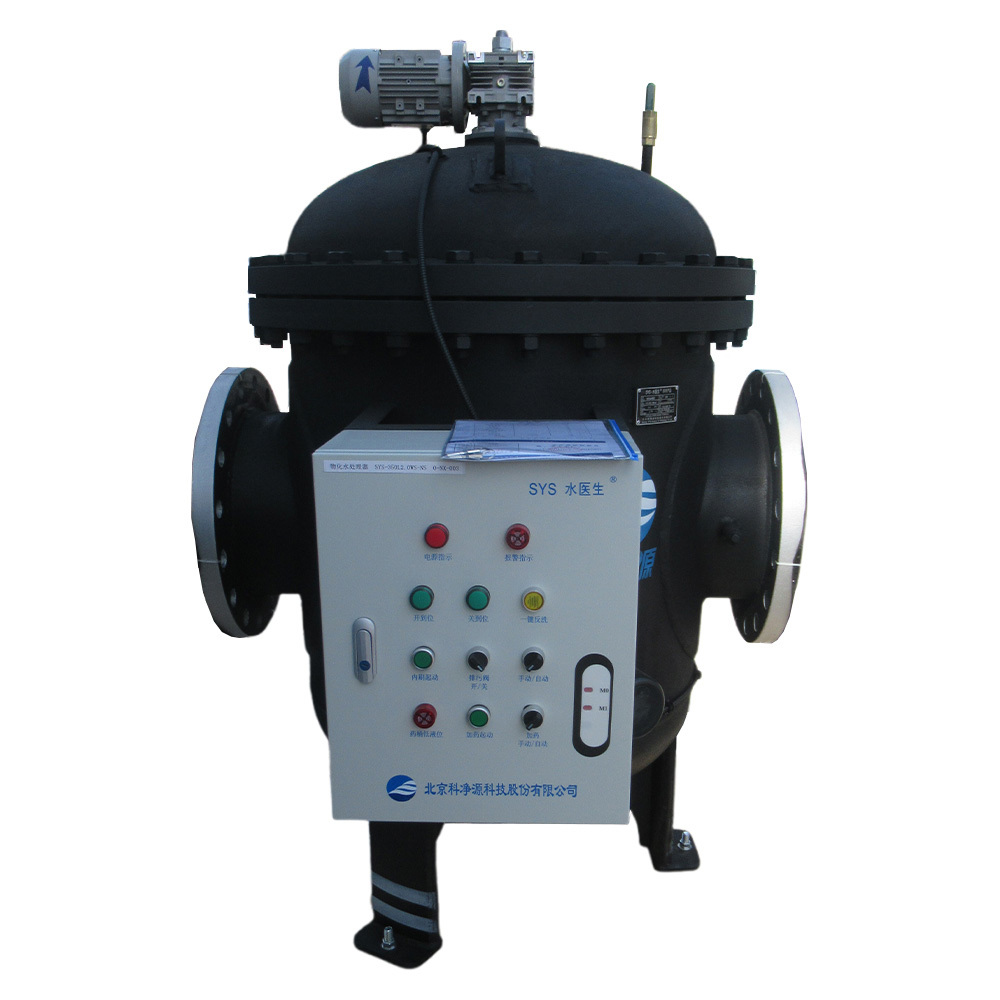

Automatic Filter Cleaning Inner Brush Circulating Water Processor
Continuous Operation For Data Center Cooling
Product Overview
Developed for 24/7 continuous operation, this processor features reinforced core components for extended lifespan. The internal brush system automatically cleans the filter, maintaining high flow rate and low resistance to prevent clogging-related failures. Only scheduled simple inspections are required for year-round operation.
Automatic Self-Cleaning Circulating Water Processor with Inner Brush Technology, Continuous Operation, 100% Filtration Efficiency and Corrosion Rate Management
Technical Specifications
Performance Parameters
ParameterSpecification
Corrosion Rate ControlCarbon Steel: <0.07 mm/year
Stainless Steel, Copper Alloy: <0.005 mm/year
Fouling Thermal ResistanceOpen system: <3.44*10⁻⁴m²*K/W
Closed system: <0.86*10⁻⁴m²*K/W
Scale Prevention Rate>98%
Sterilization Rate>99%
Filtration Efficiency100%
Filtration Accuracy50-800μm (Standard: 200μm chilled water, 300μm cooling water)
Equipment Parameters
ParameterSpecification
Working Pressure1.0MPa, 1.6MPa, 2.5MPa
Pressure Loss0.01-0.02MPa (Final Resistance: <0.04MPa)
Equipment MaterialCarbon Steel (Main Body), Stainless Steel 304 (Filter)
Operation ControlFully Automatic/Manual
Blowdown ControlDual sewage discharge, 15-45 seconds adjustable
MTBF50,000 hours
Electrical ParametersAC220V 50Hz, 5000V Safety Insulation
Equipment Models
Model Format: SYS [DN] _B_ [Pressure] NS
ModelInlet/Outlet DiameterProcessing Flow Rate (m³/h)
SYS-80B1.0NS8018-50
SYS-100B1.0NS10050-75
SYS-150B1.0NS15075-105
SYS-200B1.0NS200105-158
SYS-250B1.0NS250158-280
SYS-300B1.0NS300280-440
SYS-350B1.0NS350440-640
SYS-400B1.0NS400640-865
SYS-450B1.0NS450865-1130
SYS-500B1.0NS5001130-1430
SYS-600B1.0NS6001430-1800
Application Areas
  • Cooling circulating water systems
  • Chilled water circulating water systems
  • Heating circulating water systems
  • Industrial circulating water systems
Automatic Self-Cleaning Circulating Water Processor with Inner Brush Technology, Continuous Operation, 100% Filtration Efficiency and Corrosion Rate Management
Application Scenarios
  • Data Centers
  • Stadiums
  • Rail Transit
  • Airports
  • Office Buildings
  • Steelworks
  • Electric Power Plants
  • Colleges and Universities
Automatic Self-Cleaning Circulating Water Processor with Inner Brush Technology, Continuous Operation, 100% Filtration Efficiency and Corrosion Rate Management
Company Profile
Beijing SYS Science & Technology Co., Ltd, founded in 2000, is an innovative comprehensive service provider specializing in integrated water environment governance. With 25 years of experience and 124 intellectual property rights including 24 invention patents, SYS has completed over 5,000 circulating water projects with total contract value exceeding RMB 1 billion.
Global Presence
SYS serves clients in more than 20 countries and regions worldwide.
Automatic Self-Cleaning Circulating Water Processor with Inner Brush Technology, Continuous Operation, 100% Filtration Efficiency and Corrosion Rate Management
Project Performance
Over 5,000 circulating water projects completed, with remarkable performance in data center sector: 200+ projects with contract value exceeding RMB 50 million in past three years.
