Specifications
Brand Name :
Syscode
Model Number :
F200
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
1299$~15999$
Payment Terms :
L/C,T/T
Delivery Time :
2-3 work days
Packaging Details :
Carton Box
Max Linear Marking Speed :
10,000 mm/s
Focal Length :
210mm (standard field lens range 110 x 110)
Output Power :
30W / 50W / 100W
Laser Type :
Fiber Laser Wavelength: 1064nm, meets 100,000 hours of operation
Marking Area :
110mm x 110mm, max marking area: 550mm x 550mm
Display :
Industrial-grade touchscreen
Operating Language :
Chinese, English (supports other languages)
Minimum Line Width :
0.02mm
Description

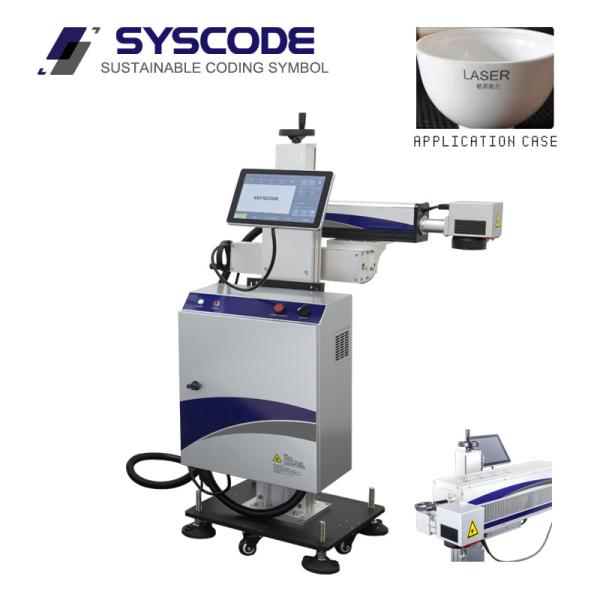

Syscode Fiber Laser Coding Machines: Permanent Marking Solutions for Metal and Plastic Products

  • Permanent Marking Capability: Syscode fiber laser technology enables permanent coding on a variety of materials, including metals and plastics, ensuring durability.

  • High-Quality Prints: The fine laser dot technology allows for intricate designs and high-resolution markings, perfect for branding and compliance.

  • Efficient Information Encoding: Capable of printing a large volume of information in a compact area, ideal for product identification.

  • Customizable Lens Options: Choose from four lens options tailored to meet your specific marking requirements.

  • Compact Design: The compact print head integrates easily into both mobile and fixed production lines, enhancing workflow efficiency.

  • Efficient Cooling System: The air-cooled system improves operational efficiency while minimizing maintenance needs.

  • Long Laser Lifespan: With a lifespan exceeding 100,000 hours, this laser coding machine offers a reliable long-term solution for your marking needs.

50W Fiber Laser Engraver For Metal Rustproof Anti Corrosion Customizable

Technical Specifications:

10,000 mm/s
Marking Parameters
Marking Area 110mm x 110mm, max marking area: 550mm x 550mm
Lines of Marking Any number of lines can be set within the effective marking area
Minimum Line Width 0.02mm
Production Line Speed Up to 150 meters/minute (dependent on marking content)
Character Height 0.2 - 70mm
Fonts Single-line fonts, dot matrix fonts, TrueType fonts
Marking Content Text, graphics, barcodes, QR codes, dynamic serial numbers, real-time clock, TXT files, RS232 communication data, etc.
Marking Angle Any angle, four-dimensional adjustable
Operating Interface
Display Industrial-grade touchscreen
Operating Language Chinese, English (supports other languages)

Working Environment Requirements
Environmental Requirements
Protection Level ≥ IP54
Cooling Air Cooling
Ambient Temperature -5 to 45 degrees Celsius
Humidity Relative Humidity 80% RH, non-condensing
Power Supply 220V, 0.6KVA

50W Fiber Laser Engraver For Metal Rustproof Anti Corrosion Customizable

Our Services


1. Free Pre-Sales Consultation

  • Quick Response: We provide pre-sales consultation within 12 hours to address any technical support needs you may have.
  • Solution Design: Tailored advanced solutions for all distributors and users.

2. Services During Sales

  • Quality Assurance: All machines undergo strict quality control checks and testing before shipment.
  • User-Friendly Documentation: Easy-to-understand manuals and operating guides to ensure smooth usage of the equipment.

3. After-Sales Service

  • Free Video Training: Comprehensive free video training to help you get started quickly.
  • Technical Support: Our technicians provide support via English, video calls, and remote control.

4. Special Design and Customization

  • Personalized Service: We are happy to meet your special requirements through innovative design. Whether you need customized machines or OEM orders, please feel free to contact us.
