Specifications
Brand Name :
Syscode
Model Number :
CO2
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
,L/C,T/T
Supply Ability :
100set/month
Delivery Time :
1 weeks~2 weeks
Packaging Details :
Wooden Box
Price :
1299$~15999$
Laser Type :
CO2 Gas Laser
Wavelength :
10.2μm
Marking Speed :
≤10,000mm/s
Minimum Line Width :
0.03mm
Repeat Accuracy :
0.01mm
Marking Area :
≤400×400mm (standard 90×90mm)
Output Power :
≥30W
Total Power :
700W
Operating Temp :
5-40℃
Storage Temp :
-10-45℃
Humidity Range :
10-85% (non-condensing)
Weight :
70kg
Dimensions :
650×520×1480mm
Protection Rating :
IP54
Description

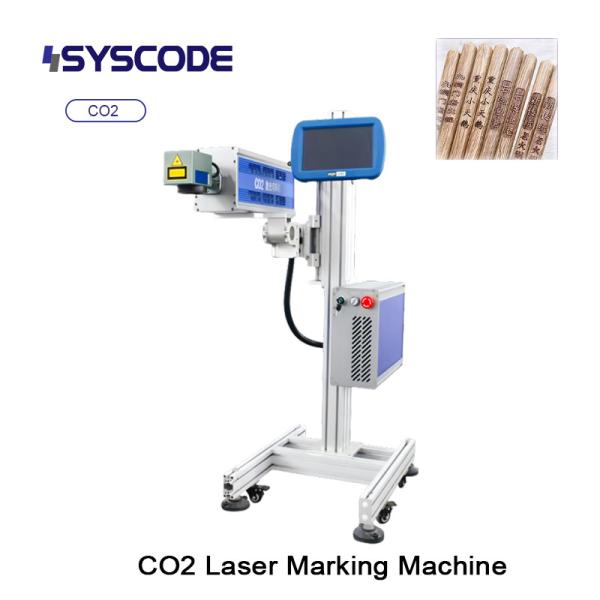

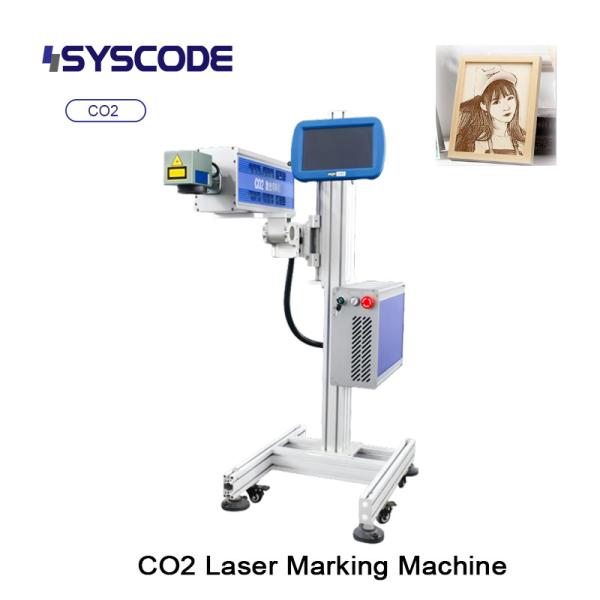

High-Precision CO2 Laser Engraver 10.2μm Wavelength 0.01mm Repeat Accuracy

——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

Product Overview

The CO2 laser marking machine is a gas laser device that utilizes carbon dioxide as the working medium, emitting a 10.2μm wavelength laser in the mid-infrared spectrum, making it particularly suitable for precision marking on non-metallic materials. This industrial-grade equipment features an all-aluminum structure, combining efficiency, precision, and durability for various marking applications across packaging, electronics, textiles, and other industries.

Key Features and Advantages

Outstanding Technical Performance

  • High power output: ≥30W laser power ensures clear, permanent marks on various materials

  • Ultra-fast marking speed: Up to 10,000mm/s marking speed significantly improves production efficiency

  • Precise positioning: 0.01mm repeat positioning accuracy and 0.03mm minimum line width guarantee marking precision

  • 360° flexible marking: Rotatable scanning head accommodates marking at various angles

Industrial-Grade Reliability

  • All-aluminum body: Durable construction suitable for long-term industrial use

  • IP54 protection rating: Effective dust and water resistance for various working environments

  • Industrial-grade motherboard: Highly integrated design ensures system stability

  • Data protection: Automatically saves user data during unexpected power outages

User-Friendly Design

  • 10-inch touchscreen: Intuitive interface simplifies workflow

  • Normal temperature air cooling: No compressed air required, reducing operating costs

  • Linux OS: Stable and reliable with strong compatibility

  • Online editing: Supports content modification without stopping production

Wide Application Areas

Packaging Industry

  • Food & beverage packaging: Water bottles, oil containers, alcohol labels

  • Pharmaceutical packaging: Medicine boxes, medical device marking

  • Daily chemical products: Cosmetic bottles, detergent packaging

Manufacturing Industry

  • Electronic components: Circuit boards, component marking

  • Rubber products: Tires, seal marking

  • Leather products: Luggage, shoe material marking

Other Applications

  • Crafts & gifts: Bamboo/wood products, acrylic decorations

  • Textile industry: Fabric cutting, apparel accessory marking

  • Glass products: Wine bottles, cosmetic bottle marking

Technical Specifications

Category Parameter Specification
Basic Parameters Laser Type CO2 Gas Laser

Wavelength 10.2μm

Output Power ≥30W

Total Power 700W
Performance Marking Speed ≤10,000mm/s

Minimum Line Width 0.03mm

Repeat Accuracy 0.01mm

Marking Area ≤400×400mm (standard 90×90mm)
Environment Operating Temp 5-40℃

Storage Temp -10-45℃

Humidity Range 10-85% (non-condensing)
Physical Weight 70kg

Dimensions 650×520×1480mm

Protection Rating IP54

Automated CO2 Laser System - Production line integration. PLC compatible, 360° rotatable head for irregular products.

Frequently Asked Questions (FAQ)

Q: What materials are suitable for CO2 laser marking?
A: Particularly suitable for non-metallic materials like PET, acrylic, glass, leather, plastic, fabric, paperboard, and rubber, with outstanding results on laminated materials.

Q: Does the equipment require special cooling systems?
A: The machine uses normal temperature air cooling, requiring no compressed air or complex cooling devices, making maintenance simple.

Q: Can marking content be modified in real-time?
A: Yes, it supports online editing of marking information including serial numbers, dates, and other variable content without stopping production.

Q: What is the positioning accuracy?
A: 0.01mm repeat positioning accuracy with red light focusing and preview function ensures precise marking position.

Q: What is the maximum production line speed?
A: Can adapt to production line speeds of 0-280m/min, depending on material and marking complexity.

Q: What file formats are supported?
A: Compatible with BMP, DXF, JPEG, PLT and other formats, supporting vector file input/output.

Why Choose Our CO2 Laser Marking Machine?

  1. High efficiency: Fast marking capability significantly improves productivity

  2. Low cost: High electro-optical conversion efficiency and air cooling design reduce operating costs

  3. Versatility: Adapts to various materials and complex graphic marking requirements

  4. Easy operation: Intuitive touchscreen interface simplifies workflow

  5. Reliability: Industrial-grade design ensures long-term stable operation

Whether for mass production or small-batch customization, our CO2 laser marking machine provides perfect marking solutions to enhance your product quality and brand image.
