13mm Prefabricated Running Track Microfoam Rubber Jogging Track Lightweight
13mm Prefabricated Running Track Microfoam Rubber Jogging Track Lightweight
13mm Prefabricated Running Track Microfoam Rubber Jogging Track Lightweight
13mm Prefabricated Running Track Microfoam Rubber Jogging Track Lightweight
Specifications
Brand Name :
lida&lvhuan
Application :
Rooftop, Elevated Decks, Lightweight
Price :
between 18 and 52 USD
Weight_per_sqm :
~11 kg
Impact_Absorption :
40-46%
Service_Life :
10-12 Years
Model Number :
Please refer to the model numbers in the product catalog
Top_Layer :
Virgin EPDM, 22% Rubber
Name :
Lightweight Foamed PU Track
Thickness :
13mm (10+3mm)
Certification :
ISO 9001 (Quality Management) ，ISO 14001 (Environmental Management)，CE
Payment Terms :
EXW
Features :
20% Lighter, Structural Load Reduction
Structure :
Low-Density Microfoam + EPDM Top
Delivery Time :
Normal delivery time: Shipment within 15 days after order confirmation
Supply Ability :
Monthly supply: 1000–12000 tons&The quantity ranges from 500,000 to 2,000,000 square meters, but it mainly depends on the product.
Place of Origin :
Huizhou, Guangdong, China
MOQ :
20KG& 500 sqm
Packaging Details :
20kg/barrel,25kg/barrel,30kg/barrel,200kg/barrel, 300kg/barrel， 25kg/bag
Description

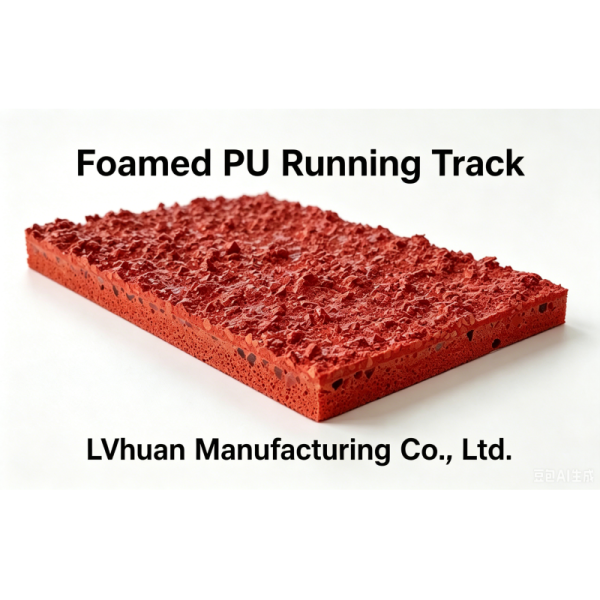

Lightweight Foamed Full PU Track | Same Strength at 20% Less Weight

Key Advantages: Microfoam structure reduces material density | Up to 20% lighter than standard full PU tracks | Easier transport & installation | No compromise on durability | Virgin EPDM top with 22% rubber content

Product Overview

The Lightweight Foamed Full PU Track is engineered for projects where structural weight matters – rooftop running tracks, elevated sports decks, and buildings with load limitations. The micro‑foaming technology creates a pure PU elastic layer that is significantly less dense than standard solid PU, yet retains excellent tensile strength and tear resistance. A 13mm track weighs approximately 20% less per square metre, reducing dead load on supporting structures. The top layer uses virgin EPDM with 22% rubber content, offering a balance of weight savings and durability.

Ideal for rooftop school tracks, residential tower sports decks, lightweight prefabricated stadium modules, and any elevated sports facility.

Technical Specifications – Weight Focus
Parameter Value
Thickness 13mm (10mm microfoam + 3mm top)
Density (elastic layer) ≈0.85 g/cm³ (vs 1.05 for standard PU)
Weight per m² (13mm) ≈11 kg (vs ≈13.5 kg for standard)
Impact Absorption 40–46%
Vertical Deformation 0.7–1.7mm
Tensile Strength ≥0.7 MPa
Service Life 10–12 years

All other parameters meet World Athletics training/competition standards.

System Structure – Lightweight

  1. Low‑density microfoam elastic layer – 10mm: pure PU with optimised cell structure for weight reduction

  2. Standard top layer – 3mm: pure PU slurry + virgin EPDM (22% rubber content)

Key feature: Lighter track reduces structural load – perfect for retrofit projects on existing buildings.

Recommended EPDM Grade
Grade Rubber Content Why
Lightweight standard 22% Balance of weight, durability, and UV resistance
Applications

  • Rooftop school competition tracks

  • Residential tower sports decks

  • Lightweight prefabricated stadium modules

  • Elevated pedestrian/sports bridges

Case Studies (Lightweight)
Country Project Area Weight saving Year
Singapore Rooftop international school track 2,500 m² 22% 2024
Hong Kong Residential tower sports deck 1,800 m² 20% 2025
Netherlands Lightweight stadium extension 3,200 m² 21% 2024
Shipping & MOQ

No MOQ. Lighter weight also reduces shipping cost per m². Lead time 15–25 days.

FAQ – Lightweight

Q: Is the lighter track less durable?
→ No. The microfoam structure is engineered for compression resistance. Wear life equals standard full PU.

Q: Can it be installed on wooden roof decks?
→ Yes, with proper waterproofing and a suitable base layer (plywood or lightweight concrete). Consult our engineers.

Contact: zhu@ldsflooring.com | WhatsApp +86 18928360800
