Quality smelting Furnace Iron Aluminum Stainless Steel Smelting Energy Saving
Quality smelting Furnace Iron Aluminum Stainless Steel Smelting Energy Saving
Quality smelting Furnace Iron Aluminum Stainless Steel Smelting Energy Saving
Quality smelting Furnace Iron Aluminum Stainless Steel Smelting Energy Saving
Specifications
Brand Name :
Chengda
Model Number :
Customized
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100 units
Delivery Time :
2~3 months
Packaging Details :
Based on order
Type :
Arc Furnace
Dimension(l*w*h) :
Customization Size
Feature :
Energy Saving
Application :
Steel making
Capacity :
Customized
Warranty :
1 year
Description
Application:

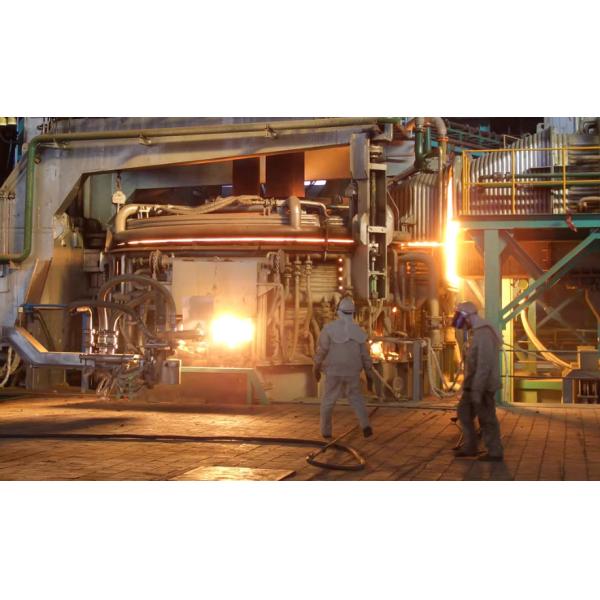

The electrice arc furnace for steel-making is a special purpose equipment that makes ordinary steel ,quality carbon steel alloy steel and non-corrosive steel with electric arc as heat source and scrap steel (iron) as raw material.

Features:

1.Type: turning and opening the furnace cover and loading from top.
2.Adopting energy saving type heavy current flow line structure with large section water-cooled cable ,water-cooled copper tube, water-cooled compensator as well as three-dimensional equilateral triangle layout.
3.Adopting moment motor type automatic regulator for electrode positioning, capable of both manual and automatic performance.
4.Adopting hydraulic transmission for both furnace body tilting and furance cover lifting; integrated block type
hydraulic valves.
5.Adopting programmable Logic controller (PLC) for electic control.
6.Adopting pressure and water temperature monitoring for cooling water system. User shall set up an elevated water
tank to prevent power cut accident.
7.Adopting pneumatic mode for both furance door opening /closing and electrode gripping.

Paratmeter:

Model
Furnace enclosure inner diameter(mm)
Rate capacity/Max capacity (ton)
Furnace transformer
Reactor power(KVA)
Electrode pitch circle diameter
Electrode diameter(mm)
Rated power(KVA)
Secondary voltage(V)
HX-3
2600
3/8
2200
210-104
250
750
250
HX-5
3200
5/12
3200
221-110
320
850
300
HX-10
3500
10/16
5000
240-121
360
1000
350
6300
260-139
360
HX-15
3700
15/20
6300
260-139
340
1000
350
9000
260-139
HX-20
4000/4200
20/32
9000
260-139
/
1000
350
12500
340-195
/
1050
400
16000
375-200
/
1050
400
HX-30
4600
30/45
16000
375-200
/
1100
450
25000
570-350
4000
1100
450
32000
650-350
6800
1100
450
HX-50
5000
50/60
25000
570-350
4000
1100
450
32000
650-350
6800
1100
450
35000
670-370
7800
1100
450
HX-80
5800
85/95
35000
650-350
6800
1100
450
40000
690-390
8500
1250
500
50000
800-500
9800
1300
500
HX-100
6200
100/120
35000
670-520-370
7800
1100
450
50000
800-650-340
9800
1300
500
63000
920-720-480
13000
1350
600
FAQ
Q1: Are you trading company or manufacturer?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally it is 60 days, it is according to quantity requires.
Q3: What is the term of payment?
A: Payment <=1000USD,100%in advance. Payment>=1000USD,30% T/T in advance, balance before shipment.
lf you are interested in this equipment, please don't hesitate to contact us!
lf the machine is not suitable for your plant, please e-mail us the following information:
1. What's the quality standard of billet do you want to casting? ls it common carbon steel or low carbon steel?
2. What's the billet size and length?
3. Do you have melting furnace? lf yes, how many tons of furnace with how many quantity?
4. What's the capacity per hour? According to your information, we will offer high efficiency design and best price for it.
