Electroplating Sludge Electric Furnace 3000kVA DC Arc Smelting Hazardous Waste Treatment Plant
Electroplating Sludge Electric Furnace 3000kVA DC Arc Smelting Hazardous Waste Treatment Plant
Specifications
Delivery Time :
2 months
Electrode Diameter :
300 mm
Feeding Mode :
Batch feeding with automatic charging
Secondary Voltage :
221-110 V
Model Number :
HX-ES-3000
MOQ :
1 unit
Control System :
PLC + HMI automatic control
Rated Transformer Power :
3000 kVA
Place of Origin :
China
Supply Ability :
Complete production supply chain, supply on time, and meet quality standards
Metal Recovery :
Ni, Cu, Cr, Zn recovery above 98%
Installation :
Skid-mounted, low footprint design
Certification :
ISO 9001
Slag Discharge :
Inert vitrified slag for building materials
Cooling System :
Closed-loop water cooling
Brand Name :
Shaanxi Chengda
Payment Terms :
L/C,T/T,Western Union
Price :
The price will be negotiated based on the technical requirements and supply scope of Party A
Furnace Type :
DC Electric Arc Furnace
Processing Capacity :
4-6 tons electroplating sludge per day
Packaging Details :
Discuss according to the specific requirements of Party A
Melting Temperature :
1500-1600 C
Description

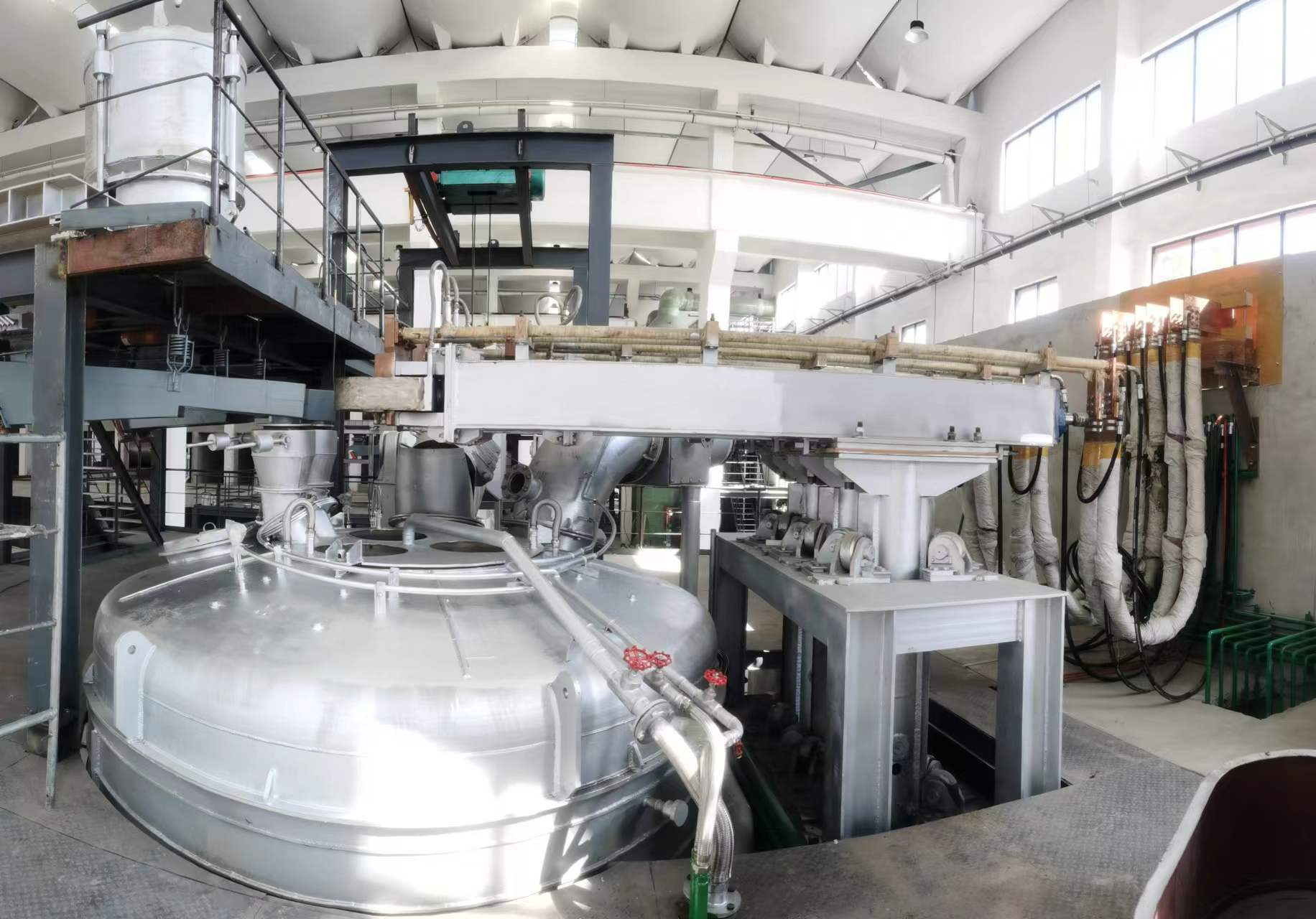

Electroplating Sludge Electric Furnace 3000kVA DC Arc Smelting System

The 3000kVA electroplating sludge electric furnace is a compact DC arc smelting solution developed for medium and small electroplating plants. It treats hazardous electroplating sludge on site, reduces waste volume significantly, and recovers valuable metals from the sludge. The skid-mounted design requires a small footprint and enables quick installation and commissioning.

Features

  • Compact skid-mounted design with low footprint
  • Hazardous waste reduction of more than 85% in volume
  • Valuable metal recovery (Ni, Cu, Cr, Zn) above 98%
  • Inert vitrified slag suitable for building material reuse
  • Batch feeding with automatic charging system
  • PLC + HMI automatic control, easy operation

Technical Parameters

Furnace TypeDC Electric Arc Furnace
Rated Transformer Power3000 kVA
Processing Capacity4-6 tons electroplating sludge per day
Melting Temperature1500-1600°C
Electrode Diameter300 mm
Secondary Voltage221-110 V
Metal RecoveryNi, Cu, Cr, Zn recovery above 98%
Slag DischargeInert vitrified slag for building materials
Feeding ModeBatch feeding with automatic charging
Control SystemPLC + HMI automatic control
Cooling SystemClosed-loop water cooling
InstallationSkid-mounted, low footprint design

Applications

On-site electroplating sludge treatment, metal finishing plant waste, chemical sludge, PCB industry sludge and other hazardous solid wastes containing heavy metals.

Support and Services

We supply designing, manufacturing, installation and commissioning with turn-key service. Customized design according to the sludge composition and capacity of your plant is available. Please send us your project information and we will provide a proposal immediately.

FAQ

Q1: Are you a trading company or manufacturer? A: We are a manufacturer. Q2: How long is your delivery time? A: Generally 60 days, depending on quantity. Q3: What is the term of payment? A: 30% T/T in advance, balance before shipment.

If you are interested in this equipment, please don't hesitate to contact us!
