SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
JISHUI
Packaging Details :
plywood for salt sea water to drinking water machine
Price :
2000-4000
Applicable Industries :
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Construction works , Energy & Mining
After Warranty Service :
Video technical support, Online support, Field maintenance and repair service
Local Service Location :
None
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
2 years
Core Components :
Pressure vessel, Pump, Motor, PLC
Material :
Fumigation wooden box, SUS304/316
After-sales Service Provided :
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty :
1 Year
Productivity :
1000L/Hour
type :
salt sea water to drinking water machine
Desalination rate :
99%
Color :
natural color
Operation mode :
automatic
RO membrane :
40-40In
transport :
sea transportation
Application :
Water Purification
Product name :
Water Treatment System Processing Reverse Osmosis Plant
Description

salt sea water to drinking water machine

Model

HY-1000LPH

Remark

Product Capacity

1m3/hr

Power supply

1PH x 220V, 50Hz

Feed water pump

Q= 2.5m3/h

GRUNDFOS/DENMARK

Sand filter

Φ400×1520(mm)

SUS304

Activated carbon filter

Φ400×1520(mm)

SUS304

Water softener

Φ400×1520(mm)

SUS304

Micron cartridge filter

Φ159×500(mm)

SUS304

1st High pressure pump

Q= 2.5m3/h

GRUNDFOS/DENMARK

2nd High pressure pump

Q= 1.25m3/h

GRUNDFOS/DENMARK

RO membrane

4040 8 pcs

HYDRANAUTICS/USA

RO membrane vessel

40480, 4 pcs

SUS304

UV sterilizer

18W

SUS304

Ozone generator

120W

SUS304
SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine

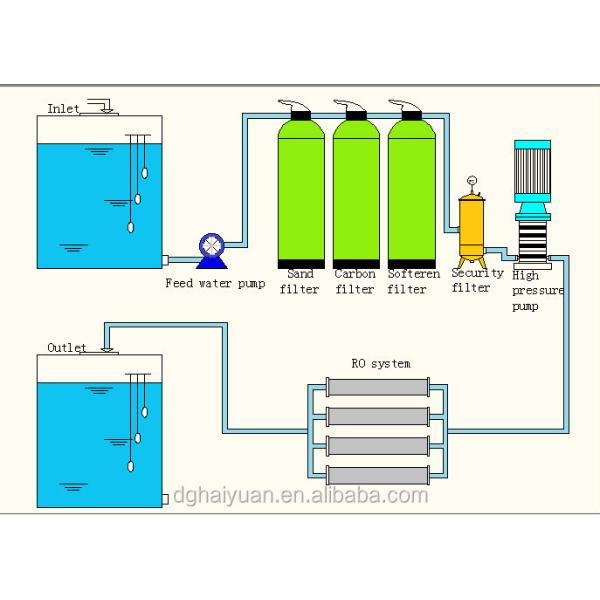

Process flow

SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine

Haiyuan Company designs reasonable process according to user water requirements

Processing Diagram

SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine

Good materials, good quality

Features of Water Treatment

Pretreatment:

(1) Quartz sand/manganese sand filter

(2) Activated Carbon filter

(3) Softener and PP Filter

(4) Dosing system if need.

Main Machine of Water Treatment:

(1)Pumps;

(2)RO membrane (DOW/CSM/Hydranautics)

(3)Membrane Vessel(SS and FRP)

(4)PLC control/Relay control

(5)Optional UV sterlilizer&Ozone

Functions of Water Treatment:

A. Auto flush

B. Low pressure protection

C. High pressure protection

D. Back wash ® Eneration control

HaiYuan Workshop

SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine

Our Services

(1)100% factory tested before shipment

(2) 1 Year's Quality Warranty

(3) 2 Years of trouble free service offered

(4) Solve problems within 24 hours

Company Information

We have 2 factories +300 workers+ Qualified engineer+ Overseas serviceSUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine

Certifications

We are the right supplier. You know why?

SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine

Customers photos

SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine

Exhibition

SUS304 Brackish Water RO Plant , PLC Seawater To Drinking Water Machine
