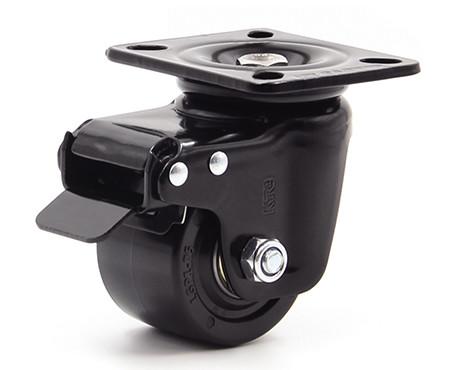

Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kg
Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kg
Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kg
Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kg
Specifications
Brand Name :
KTCaster
Model Number :
KT-LGP1-75SFB
Place of Origin :
China
MOQ :
1
Price :
USD50-165/Piece
Payment Terms :
T/T
Delivery Time :
7 days
Packaging Details :
Carton
Applicable Industries: :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Warranty: :
1 Year
Body material: :
Steel 45
Wheel material: :
Nylon6
Type: :
Heavy Duty caster
Load Capacity: :
700kg(EA)
Description

How to install caster universal wheel correctly
1, Install 3 casters, including 1 universal wheel and 2 directional wheels
The installation combination of 1 universal wheel and 2 directional wheels is suitable for

short-distance handling of low center of gravity, medium and light equipment, with good directional

control and economy.


2, Install 4 casters, including 2 universal wheels and 2 directional wheels
The combination of two universal wheels and two directional wheels is a conventional assembly method.

There are two directional wheels in the front and two movable universal wheels close to the push

handrail in the rear. It is suitable for long-distance and long-distance transportation of heavy equipment,

which is economical and durable.


3, Install 4 casters, all of which are directional wheels
The 4 directional wheels are of rhombic layout design, which is suitable for long straight-line

transportation of heavy equipment and cannot be used on sloping working faces.


4, Install 4 casters, including 2 directional wheels and 2 universal belt brake wheels
Two universal belt brake wheels and two directional wheels are installed. There are two directional

wheels in the front and two universal belt brake wheels close to the push handrail in the rear. This

assembly is suitable for long and short distance and sloping roads.


5, Install 4 casters, all universal wheels
The installation method of 4 universal wheels is suitable for short-distance handling of heavy

equipment. It has excellent directionality and is often used for turnover work vehicles in factory

workshops.


6, Install 6 casters, including 4 universal wheels and 2 directional wheels
4 universal wheels and 2 directional wheels are suitable for long-distance handling of heavy equipment

and household countertops. They have good handling and are used for horizontal contact surfaces.

Industrial Swivel Casters Parameter

Wheel material Nylon6
Load Capacity 700KG
Wheel Diameter 75mm
Color white
Tread Width 50mm
Load Height 108MM

Industrial Swivel Casters Describe

Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kg

Industrial Swivel Casters Size

Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kg

Industrial Swivel Casters Material

Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kg

Name Material Treatment
1 Caster Seat Cold-rolled carbon steel Black Coated/Zn Galvanized
2 Body Aluminum alloy Ivory/Powder Coated
3 Ball Bearing Steel Ni-Cr
4 Brake Steel 45 Zn Galvanized
5 Pin Steel 10 Zn Galvanized
6 Wheel PA6 Black

Industrial Swivel Casters Scope of application
Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kg

Application.

Communication equipment, semiconductor manufacturing equipment, experimental equipment,
medical equipment, printing machines, all kinds of Press, all kinds of special machinery, all kinds
of variable production equipment, dust-free room equipment, aluminum frame, equipment, etc.

Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kgNylon 75mm Industrial Swivel Casters Wheels With Brake 700kg

Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kgNylon 75mm Industrial Swivel Casters Wheels With Brake 700kg

About us.

KTC (Bejing Korea Technology Caster Co., Ltd.) was founded in 2007. KTC is a modern

company specialzingin the production of multi function &high quality CASTER and

KT FOOT based on best design and design technology.

Nylon 75mm Industrial Swivel Casters Wheels With Brake 700kg

KTC.

The company is headquartered in Niulanshan Industrial Zone,Shunyi District, Beijing. KTC

adopts international advanced production testing equipments, professional intelligent

production management system and professional design flow. Now the company produces

multi function & high quality production, such as KT CASTER and KT FOOT, among which

high quality of height adjusting CASTER,shockproof type CASTER, high quality of height

adjusting CASTER, shockproof type CASTER,high load CASTER and level adjusting FOOT

are widely used in the world's advanced automation equipment and semiconductor e

quipment industry.


In order to manufacture the world's highest level of products,KTC use the best processing

technology and equipment. And KTC continuously launches world top level of new products.

KTC's s also has set up a branch in Korea, so it is favored by theusers of various fields around

the world.
