25W 2 Pin Travel Portable Universal AC DC Switching Power Supply For Set-top-box
25W 2 Pin Travel Portable Universal AC DC Switching Power Supply For Set-top-box
Specifications
Place of Origin :
Guangdong, China (Mainland)
Model Number :
KSAFE
Certification :
US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
MOQ :
1000PCS
Payment Terms :
T/T
Supply Ability :
1M/Month
Price :
Negotiable
Packaging Details :
PE bag+ white box
FOB :
Shenzhen Hongkong
Description


25W 2 Pin Travel Portable Universal AC DC Switching Power Supply For Set-top-box

Key Features of KSAFE series

●Light, extra slim, sleek, compact design

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function

Key Applications of KSAFE series

It’s suitable for an extremely wide range of applications, including:

●Printer

●Pos

●Hard disk drive

●Set-top-box

Input

●Input Voltage : 90 to 264 VAC

●Frequency : 47-50/60-63hz

●Input current : 0.6A(Max) 100 /240VAC

●Inrush curren t: 50 AMax. 100VAC at max Load

60AMax.240VAC at max Load

●Leakage current:0.25 mA Max

Output

●Over voltage protection

●Over current protection

at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Average efficlency Measured at 25℃

Environmental Operating

●Operatingtemperature 0~40℃Free convection

●Operating humidity 10-80% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1, UL 60950-1, CSA C22.2

No. 60950-1-03, GB4943, K60950

Certificates and approvals

●CB , GS , CE , BEAB, UL , CCC , FCC, KC, PSE

EMI Emission

●Radiation Test&Conduction Test :EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker Test : EN 61000-3-3

EMS immunity

●ESD Test:EN 61000-4-2

●RS Test: EN 61000-4-3

●EFT Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS Test:EN 61000-4-6

●DIP Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 93 *47*34.2

25W 2 Pin Travel Portable Universal AC DC Switching Power Supply For Set-top-box

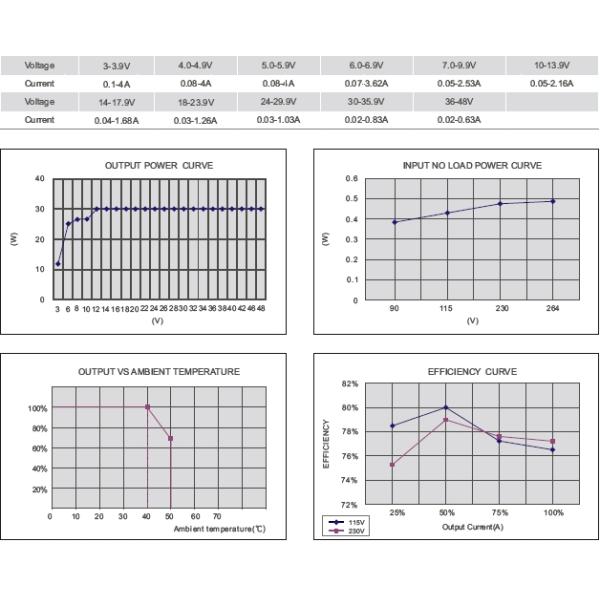

Product tables for 25W

25W 2 Pin Travel Portable Universal AC DC Switching Power Supply For Set-top-box

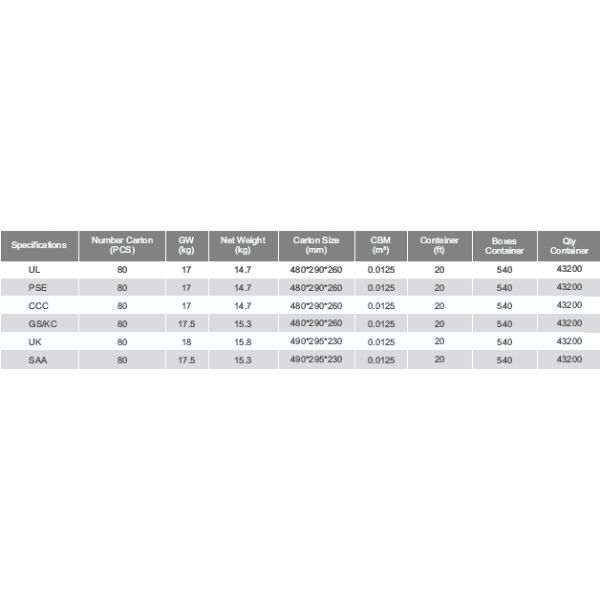

Packing & shipping

25W 2 Pin Travel Portable Universal AC DC Switching Power Supply For Set-top-box

Down Load
