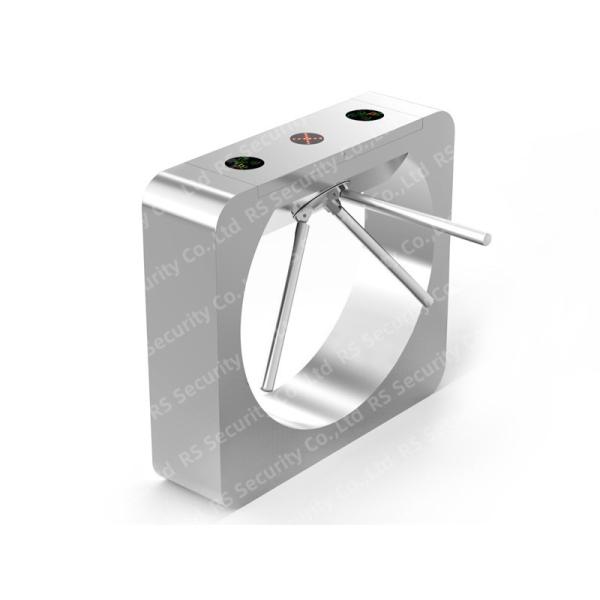

Security Three Arm Tripod Turnstile Gate Semi Automatic With Latest Technology

Tripod Turnstile RS 118 also called:Waist Height Turnstiles,Tripod Barrier,3 Arms Turnstile and so on.Tripod Turnstiles Tourniquets case is made of 1.5mm 304 or 316 stainless steel.Tripod Tourniquets consist of electric circuit,three bars,mechanism,hydraulic damper,electromagnetic,led lamp,etc.Tripod Tourniquets is the most economic pedestrian access control,external third-party systems, such as: QR Code Reader,Fingerprint,IC/ID Card,Biomeitic,Face Recognition,Barcode,etc.Waist Height Turnstile is widely used in School,Subway Station,Gym,Hospital,Bank,Supermarket,etc.Tripod Turnstile RS 118 with standard fire interface,arm can drop down for evacuationg even power is not cut off when fire alarm triggered.Tripod Gates RS 118 is anti-passback,when arm rotates 60 degree,people cannot reverse back.THree Rollers Turnstile RS 118 with hydraulic damper,low impact sound and high durability:the 3 arms can rotate in one or two directions,controlled by an access control system or push button at a reception desk.3-arm Turnstiles RS 118 is highly bright led direction indication lamp,indicate pass station instantly.

1,Malfunction self-check and alarm reminder, ease of maitenance and use
2,Running method can be set through small buttons on the control panel
3,How arm reacts in emergency
4,How arm reacts when power on
5,Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)
6,Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
7,Unique positioning, self reset, one arm always in the horizontal level
8,LED lamp indicator
9,when open signal is given, arm rotate to a certain degree
10,how arm reacts when people passing
11,one direction or bi-direction flow control
12,work directly with PC for remote control and management
13,Bi-direction Anti reverse rotation

• Long-life performance, high operation dependability and fast response.
• The whole system runs smoothly, low noise, no mechanical impact.
• Single directional or Bi-directional is selectable.
• Automatic reset function: turnstile arm will lock automatically
• within 5s (can be setting) if passenger delay to entry.
• When power is off, arms will drop down automatically, which is complying with fire safety requirements.
• LED indicator (red × means no entry; green →means entry).
• Easy to install and maintain.
• 3-year warranty support.
