255mm Height Flange Air Spring 380mm Rubber Air Bellows For Heavy Industrial Equipment
255mm Height Flange Air Spring 380mm Rubber Air Bellows For Heavy Industrial Equipment
255mm Height Flange Air Spring 380mm Rubber Air Bellows For Heavy Industrial Equipment
255mm Height Flange Air Spring 380mm Rubber Air Bellows For Heavy Industrial Equipment
255mm Height Flange Air Spring 380mm Rubber Air Bellows For Heavy Industrial Equipment
255mm Height Flange Air Spring 380mm Rubber Air Bellows For Heavy Industrial Equipment
255mm Height Flange Air Spring 380mm Rubber Air Bellows For Heavy Industrial Equipment
255mm Height Flange Air Spring 380mm Rubber Air Bellows For Heavy Industrial Equipment
Specifications
Brand Name :
GUOMAT
Model Number :
2H350/255
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
GUOMAT
Full Stroke :
205mm
Sample :
Available
Material :
Natural Rubber+Steel Flange Ring
Natural Height :
255mm
Color :
Black
Convolutions :
Double/2
Type :
Rubber Air Spring
Description

255mm Height Flange Air Spring 380mm Rubber Air Bellows For Heavy Industrial Equipment

Product Specification

Nominal diameter Minimum compression Safe extension Full stroke
Ø250mm 90mm 295mm 205mm
Weight 8.2KG


The Rubber Bellows Max. Outer Diameter: 380mm (At 0.7Mpa)

The Natural Height: 255mm

Top and Bottom Diameter: 309mm

Bearing Capacity Inflation Pressure 0.2Mpa 0.3Mpa 0.4Mpa 0.5Mpa 0.6Mpa 0.7Mpa 0.8Mpa Volume at 0.7 MPa (7 bar)
Installation Height
90 (mm) 1814 2722 3628 4538 5474 6381 7318 6.03
156 (mm) 1567 2355 3135 3944 4799 5606 6416 12.03
222 (mm) 1249 1877 2532 3187 3890 4570 5237 17.13
255 (mm) 1095 1679 2269 2851 3480 4098 4726 19.09
295 (mm) 892 1376 1883 2384 2902 3430 4000 20.62
320 (mm) 737 1162 1587 2010 2467 2920 3431 21.89
Stiffness and frequency at design height Vertical Stiffness (Kg/cm) 121 160 215 265 305 342 384
Natural frequency Hz 1.66 1.55 1.54 1.53 1.48 1.45 1.43
cpm 100 93 92 92 89 87 86

GUOMAT Air Spring Advantages

  • Flexibility (no angle or alignment problem)
  • Compactness
  • Power / price ratio
  • No maintenance or lubrication required
  • Durability
  • Reliability
  • Resistance to aggressive or hot conditions

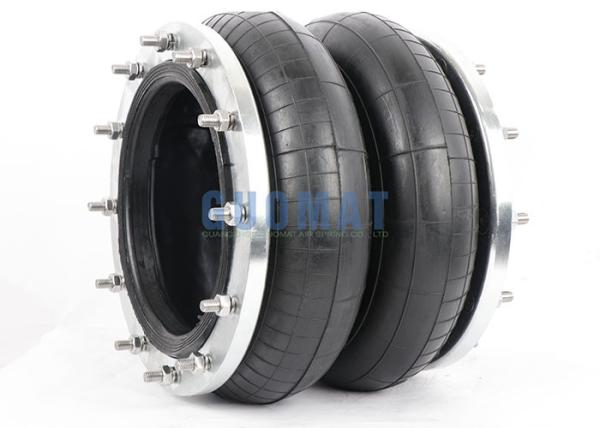

The Real Photos

255mm Height Flange Air Spring 380mm Rubber Air Bellows For Heavy Industrial Equipment
