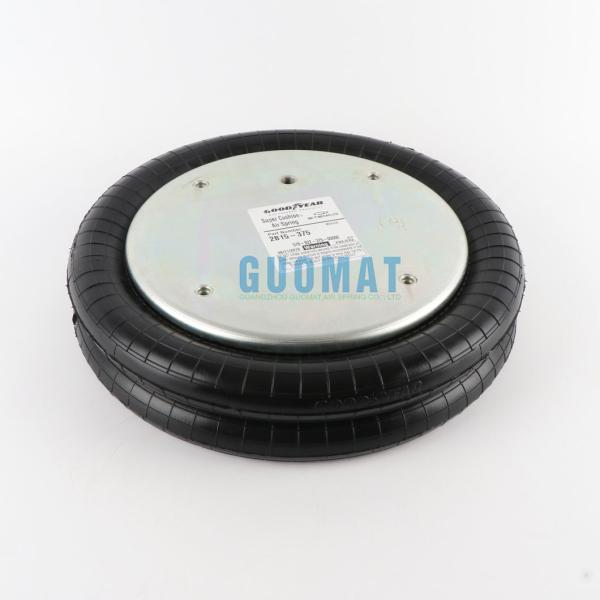

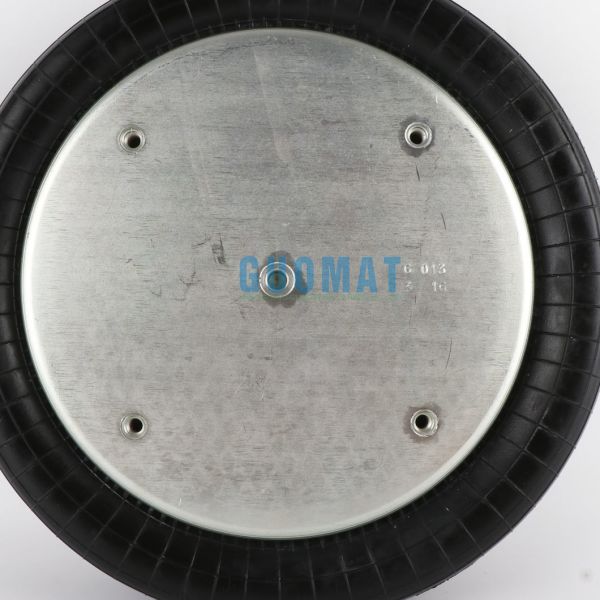

Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Specifications
Brand Name :
GUOMAT
Model Number :
2B6800
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
2B6800
Manufacturer :
GUOMAT
Material :
Natural Rubber
Sample :
Available
Working Stroke :
273MM
Type :
Double Convoluted
Space Required :
415MM
Ships From :
Any Port in China
Description

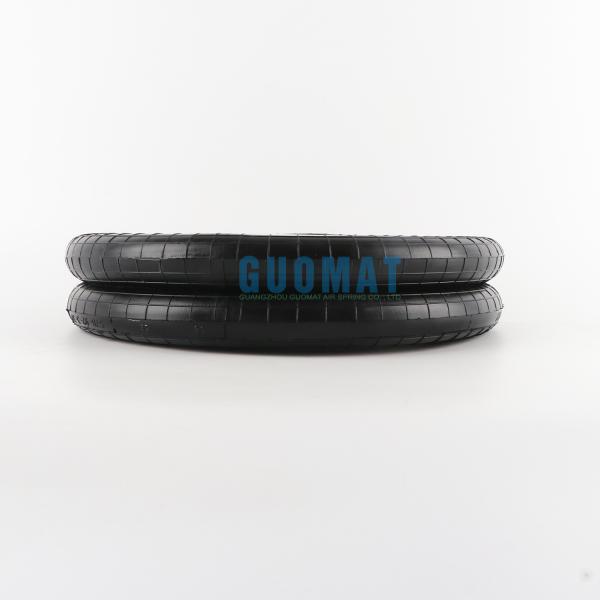

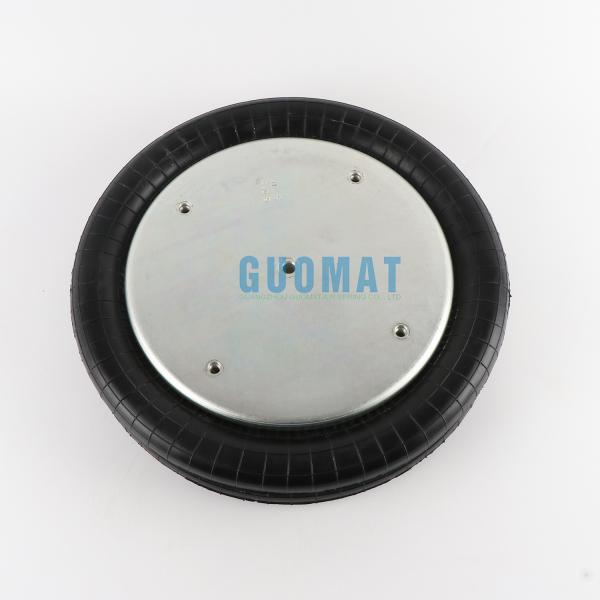

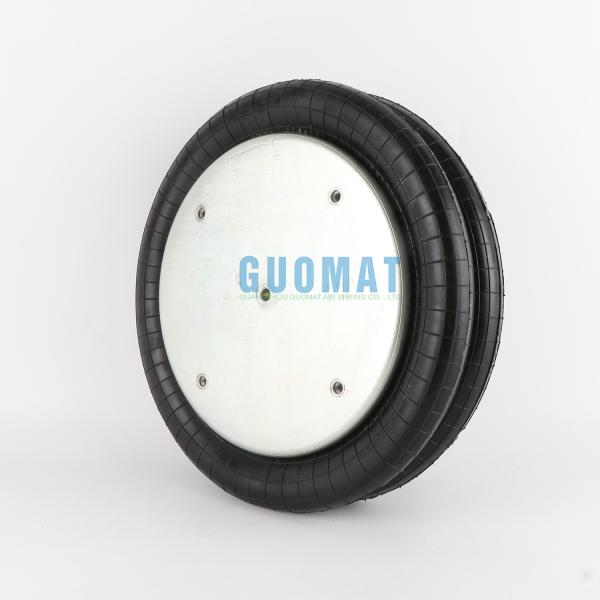

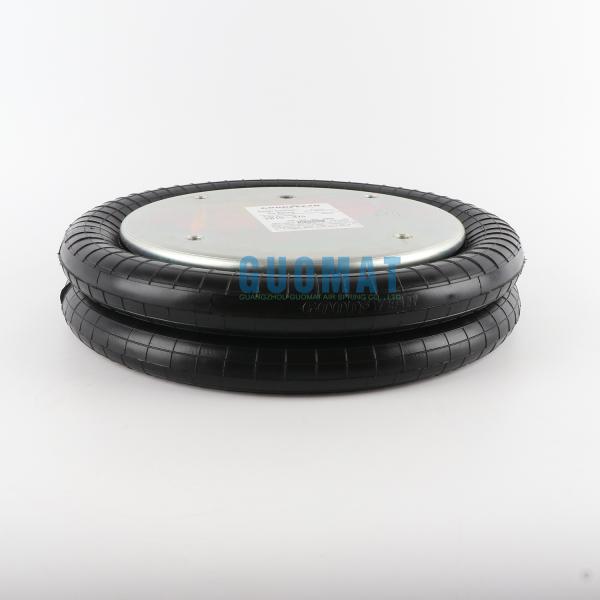

Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator

Cross OEM Number

Goodyear Parts NO.: 2B14-468
Goodyear Parts NO.: 2B14 468
Goodyear Parts NO.: 2B14468
Goodyear Parts NO.: 2B14-362
Goodyear Parts NO.: 2B14 362
Goodyear Parts NO.: 2B14362
Goodyear Parts NO.: 2B14-450
Goodyear Parts NO.: 2B14 450
Goodyear Parts NO.: 2B14450
Goodyear Parts NO.: 2B15-375
Goodyear Parts NO.: 2B15 375
Goodyear Parts NO.: 2B15375

Fire stone Air Spring Parts NO.: W01-358-6800

Fire stone Air Spring Parts NO.:: W01 358 6800

Fire stone Air Spring Parts NO.:: W013586800

Fire stone Air Spring: 21D-2

Fire stone Air Spring: 21-2

Fire stone Air Spring: 21 2

ContiTech Parts NO.: FD530-30 518 1/4 NPT

ContiTech Parts NO.: FD530-30518 1/4 NPT

Product Information

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth 4 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate 159 mm
Bottom Cover Plate Screw (Nut) Tooth 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate 159 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet 1/4NPT
Center Distance Between Nut and Air inlet 79.5 mm
Cover Plate
Top Cover Plate Diameter (Width) 287 mm
Bottom Cover Plate Diameter (Width) 287 mm
Rubber Bellows
Rubber Bellows MAX Diameter 401 mm
Compressed Height 76.2 mm
Maximum Height 351 mm
Working Stroke 254mm

Product Technical Data

Vibration isolation - dynamic characteristics values

Pressure p [psi] 40 60 80 100 120
Force (Load) [lbs] 3740 5610 7480 9350 11220
Spring Rate [lbs/in] 987 1388 1811 2165 2628
Natural Frequency [Hz] 1.6 1.6 1.6 1.5 1.5

Pneumatic application - static characteristics values

Force F [lbs]

Pressure p [psi] 20 40 60 80 100 120
Height H [in] 11 1660 3330 4990 6650 8320 9980
9 2100 4210 6310 8410 10520 12620
7 2440 4880 7320 9760 12200 14640
5 2650 5310 7960 10620 13270 15920


The Must be Enough Clearance Around The Air Bellow

  1. The full surface of the metal parts is to be used to bear the forces.
  2. Air bellows must be equipped with lateral guides.
  3. Deflate the air bellows fully before removing.
  4. Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and weldin sparks.
  5. Should the air bellow be subjected to special media in an application, ask Precision Engineering for further information, specifying the medium, temperature and concentration.
