Specifications
Brand Name :
GUOMAT
Model Number :
F-300-3
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
F-300-3
Warranty :
One Year
Design High :
152 MM
Stroke :
120 MM
Max Diameter :
360 MM
Function :
Reduce Vibration
Shape :
Convoluted Air Spring
Sample :
Available
Description

Original F-300-3 Natural Rubber Bellow Yokohama Air Spring S-240-3R with Two Hoop

F-300 Air Spring Catalogue Items Detailed Parameter Table

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-300-1 S-300-1 72 117 40 ±30 400
F-300-2 S-300-2 98 158 53 ±40 360
F-300-3 S-300-3 152 242 82 ±60 360
F-300-4 S-300-4 206 326 111 ±80 360

OEM Number

Yokohama: S-300-3R

Yokohama: S3003R

Yokohama: S 300 3R

Yokohama: S-300-3

Yokohama: S3003

Yokohama: S 300 3

Air Bellows Characteristics

  1. Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators.
  2. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model.
  3. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.
  4. All models are single acting only. The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself.
  5. The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous conditions.
  6. Air bellows are suitable for vibration applications i.e. device feeders at high frequency

F Series Industrial Air Spring for Punch

GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 S-600-1R S 600 1R F-240-4 S-240-4R S 240 4R
F-600-2 S-600-2R S 600 2R F-240-3 S-240-3R S 240 3R
F-600-3 S-600-3R S 600 3R F-240-2 S-240-2R S 240 2R
F-600-4 S-600-4R S 600 4R F-240-1 S-240-1R S 240 1R
F-600-5 S-600-5R S 600 5R F-220-4 S-220-4R S 220 4R
F-550-2 S-550-2R S 550 2R F-220-3 S-220-3R S 220 3R
F-550-3 S-550-3R S 550 3R F-220-2 S-220-2R S 220 2R
F-500-2 S-500-2R S 500 2R F-200-2 S-200-2R S 200 2R
F-500-3 S-500-3R S 500 3R F-200-3 S-200-3R S 200 3R
F-500-4 S-500-4R S 500 4R F-200-4 S-200-4R S 200 4R
F-500-5 S-500-5R S 500 5R F-160-1 S-160-1R S 160 1R
F-450-1 S-450-1R S 450 1R F-160-2 S-160-2R S 160 2R
F-450-2 S-450-2R S 450 2R F-160-3 S-160-3R S 160 3R
F-450-3 S-450-3R S 450 3R F-160-4 S-160-4R S 160 4R
F-450-4 S-450-4R S 450 4R F-120-4 S-120-4R S 120 4R
F-450-5 S-450-5R S 450 5R F-120-3 S-120-3R S 120 3R
F-400-2 S-400-2R S 400 2R F-120-2 S-120-2R S 120 2R
F-400-3 S-400-3R S 400 3R F-100-4 S-100-4R S 100 4R
F-400-4 S-400-4R S 400 4R F-90-3 S-90-3R S 90 3R
F-400-5 S-400-5R S 400 5R F-90-2 S-90-2R S 90 2R
F-350-1 S-350-1R S 350 1R F-90-1 S-90-1R S 90 1R
F-350-2 S-350-2R S 350 2R F-300-1 S-300-1R S 300 1R
F-350-3 S-350-3R S 350 3R F-300-2 S-300-2R S 300 2R
F-350-4 S-350-4R S 350 4R F-300-3 S-300-3R S 300 3R
F-300-4 S-300-4R S 300 4R

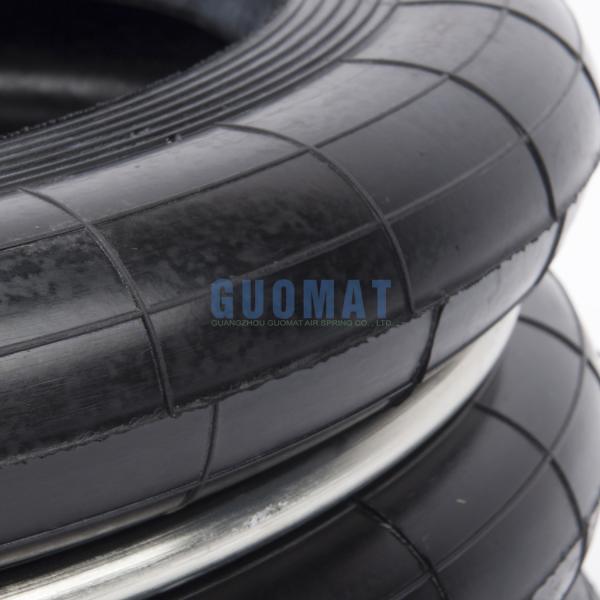

F-300-3 Real Images

Original F-300-3 Natural Rubber Bellow Yokohama Air Spring S-240-3R With Two Hoop
Original F-300-3 Natural Rubber Bellow Yokohama Air Spring S-240-3R With Two Hoop
Original F-300-3 Natural Rubber Bellow Yokohama Air Spring S-240-3R With Two Hoop
Original F-300-3 Natural Rubber Bellow Yokohama Air Spring S-240-3R With Two Hoop
