Specifications
Brand Name :
GUOMAT
Model Number :
1B9-202
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
1B9-202
Structure :
Single Convoluted
Quality :
100 % Tested
Transport Package :
Strong Cartons
Trademark :
GUOMAT
Warranty :
12 Months
Pressure Ability :
0 Bar to 8 Bar
Port Size :
1/4 NPT
Description

Natural Rubber Bellow 578-91-3-201 by Goodyear Single Type Air Spring Assembly

Refer Number

Goodyear: 1B9-202

Goodyear: 1B9202

Goodyear: 1B9202

Goodyear: 578 91 3 201

Goodyear: 578-91-3-201

Goodyear: 578913201

1B 9×5 Technical Datas

Nut/blind nut Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
Top plate screw center distance: 89 mm
Bottom cover plate screw (nut) teeth: 2 x 3 / 8-16UNC
Bottom plate screw center distance: 89 mm
Top plate diameter (width): 160 mm, bottom cover diameter (width): 160 mm
Bell-shaped rubber bellows rubber bellows diameter: 222 mm
Compression height: 100 mm / 4.1 inches
Maximum height: 160 mm working stroke: 60 mm
Bumper block/bumper block without bumper
Belt loop/belt loop with belt loop: without belt loop
Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 2.3kg

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 120 4.5 6.2 8.2 10.4 12.1 13.8 2.8
110 5.5 7.5 9.6 11.9 14.0 15.7 2.7
100 6.3 8.6 11.0 13.4 15.5 17.5 2.3
90 7.0 9.4 12.1 14.6 17.0 19.2 2.2
80 7.6 10.2 13.0 15.7 18.2 20.6 1.8
70 8.1 10.9 13.6 16.5 19.3 21.9 1.6
60 8.5 11.3 14.2 17.1 20.1 23.0 1.3

Product Applications

  1. vehicle applications
  2. automation technology
  3. conveyor systems
  4. agricultural machinery
  5. food industry
  6. paper and textile equipment
  7. pantograph drives
  8. sawmill machinery
  9. punch and forming presses

We Also Sell Other Goodyear Convoluted Air Springs

1B12-305 2B6-530 2B6-531 3B12-304
1B14-350 2B6-532 2B6-535 3B14-351
1B14-352 2B6-536 2B7-540 3B14-354
1B14-364 2B7-541 2B7-542 3B15-376
1B15-376 2B7-545 2B7-546 3B15-378
1B15-378 2B8-550 2B8-552 3B12-305
1B12-313 2B8-553 2B8-554 3B14-353
1B14-351 2B9-200 2B9-201 3B15-375
1B14-362 2B9-204 2B9-205 3B15-377
1B15-375 2B9-216 2B9-250
1B15-377 2B9-251 2B9-253
2B12-309 2B12-218
2B12-425 2B12-429
2B12-437 2B12-416
2B14-352 2B14-353
2B14-354 2B14-355
2B14-362 2B14-363
2B14-452 2B15-375
2B15-376 2B15-377
2B15-378 2B19-8433
2B22-8539

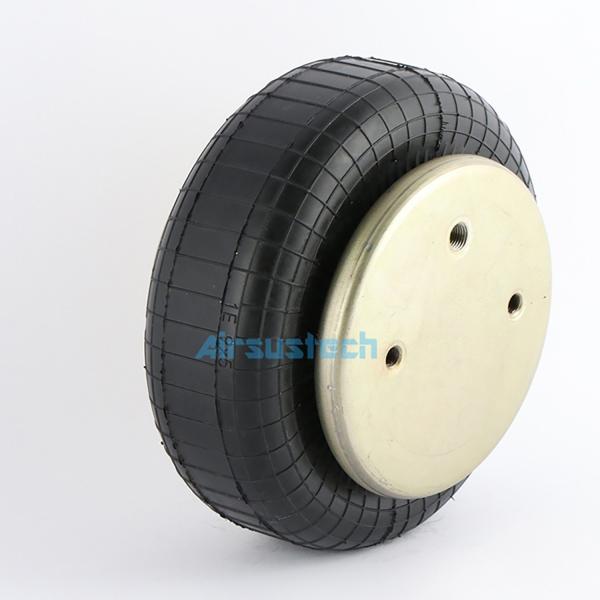

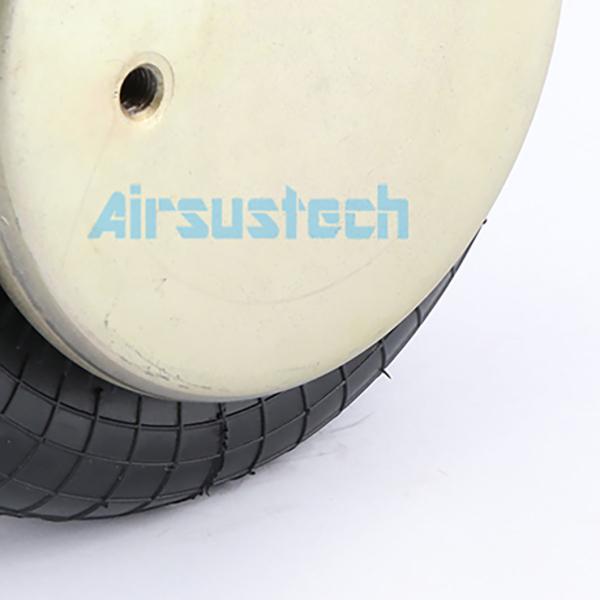

The Pictures of 1B9×5 Air Bellow
