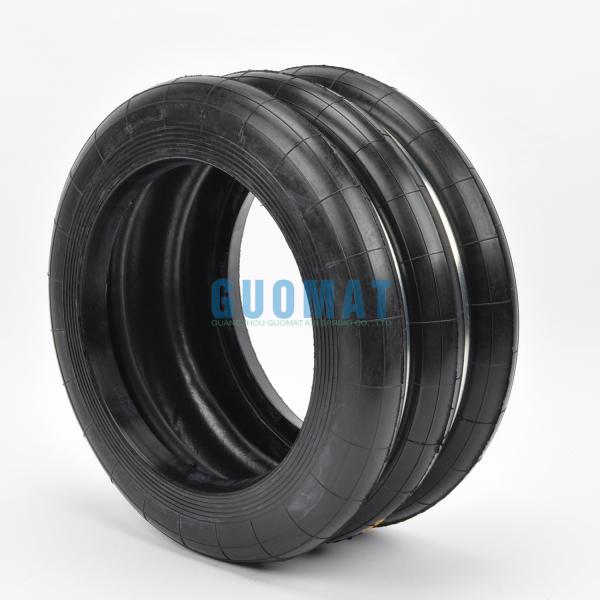

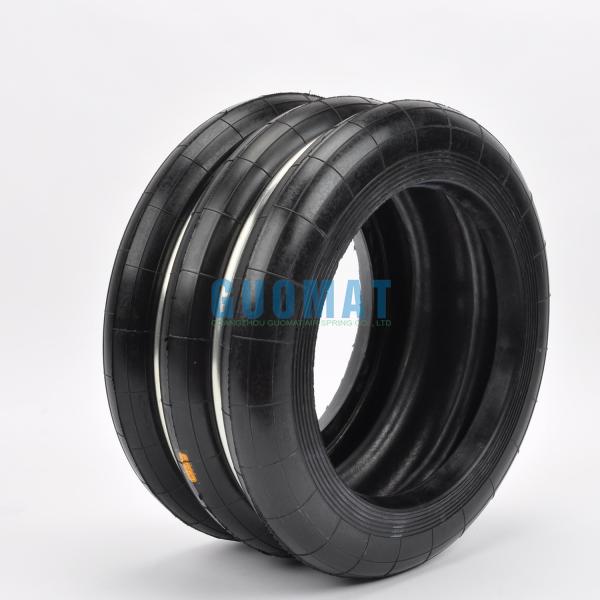

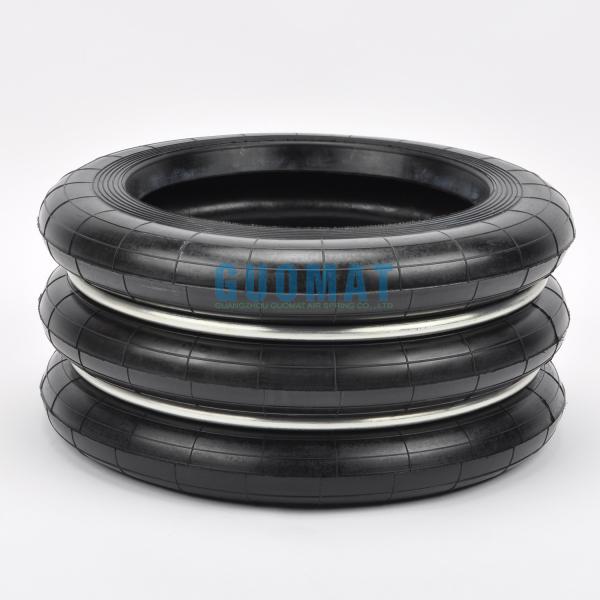

Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Specifications
Brand Name :
GUOMAT
Model Number :
F-350-3
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
F-350-3
Warranty :
One Year
Design High :
160 mm
Stroke :
130 mm
Max Diameter :
410 mm
Transport Package :
Cartons
Trademark :
GUOMAT
Material :
Natural Rubber
Description

Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag

F-350-3 Air Spring Introduction

Suspension Air Springs are high-performance air shocks designed for superior quality, durability, and load capacity across various vehicles. Made from premium rubber and steel, they perform reliably in extreme temperatures from -40℃ to +70℃. These air springs provide excellent shock absorption and stability, ensuring a safer, smoother ride. Easy to install and low-maintenance, they are a practical and cost-effective solution for enhancing vehicle suspension systems.

F-350-3 Air Bellow Specification

GUOMAT NO. Yokohama Reference No. Hight H(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-350-1 S-350-1 72 117 40 450
F-350-2 S-350-2 102 160 55 410
F-350-3 S-350-3 160 250 85 410
F-350-4 S-350-4 218 336 118 410
F-300-1 S-300-1 72 117 40 400
F-300-2 S-300-2 98 158 53 360

Product Core Competitiveness


1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.


2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.


3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.


4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.

GUOMAT Has Punch Press Air Spring

GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 S-600-1R S600-1 F-240-4 S-240-4R S240-4
F-600-2 S-600-2R S600-2 F-240-3 S-240-3R S240-3
F-600-3 S-600-3R S600-3 F-240-2 S-240-2R S240-2
F-600-4 S-600-4R S600-4 F-240-1 S-240-1R S240-1
F-600-5 S-600-5R S600-5 F-220-4 S-220-4R S220-4
F-550-2 S-550-2R S550-2 F-220-3 S-220-3R S220-3
F-550-3 S-550-3R S550-3 F-220-2 S-220-2R S220-2
F-500-2 S-500-2R S500-2 F-200-2 S-200-2R S200-2
F-500-3 S-500-3R S500-3 F-200-3 S-200-3R S200-3
F-500-4 S-500-4R S500-4 F-200-4 S-200-4R S200-4
F-500-5 S-500-5R S500-5 F-160-1 S-160-1R S160-1
F-450-1 S-450-1R S450-1 F-160-2 S-160-2R S160-2
F-450-2 S-450-2R S450-2 F-160-3 S-160-3R S160-3
F-450-3 S-450-3R S450-3 F-160-4 S-160-4R S160-4
F-450-4 S-450-4R S450-4 F-120-4 S-120-4R S120-4
F-450-5 S-450-5R S450-5 F-120-3 S-120-3R S120-3
F-400-2 S-400-2R S400-2 F-120-2 S-120-2R S120-2
F-400-3 S-400-3R S400-3 F-100-4 S-100-4R S100-4
F-400-4 S-400-4R S400-4 F-90-3 S-90-3R S90-3
F-400-5 S-400-5R S400-5 F-90-2 S-90-2R S90-2
F-350-1 S-350-1R S350-1 F-90-1 S-90-1R S90-1
F-350-2 S-350-2R S350-2 F-300-1 S-300-1R S300-1
F-350-3 S-350-3R S350-3 F-300-2 S-300-2R S300-2
F-350-4 S-350-4R S350-4 F-300-3 S-300-3R S300-3
F-300-4 S-300-4R S300-4

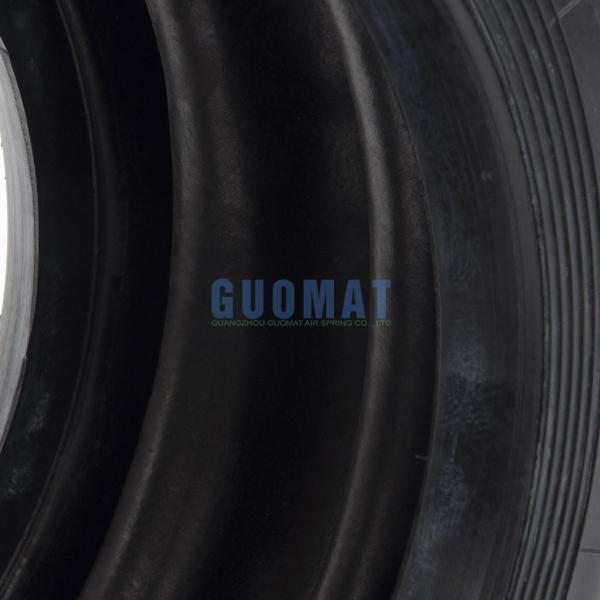

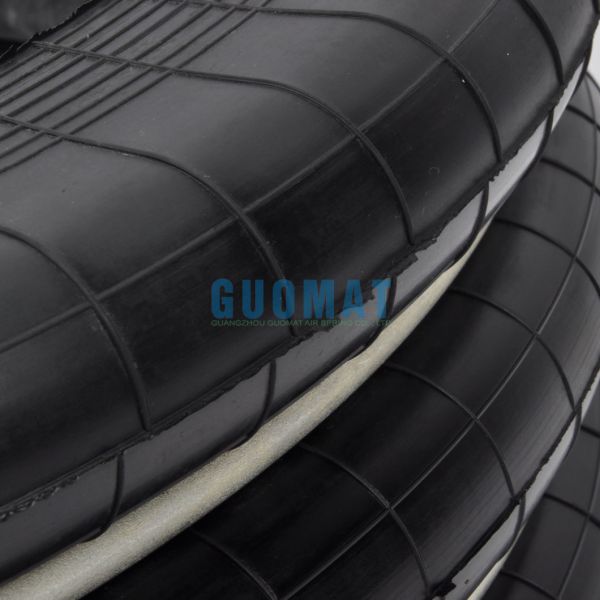

The Detailed Pictures


Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag
