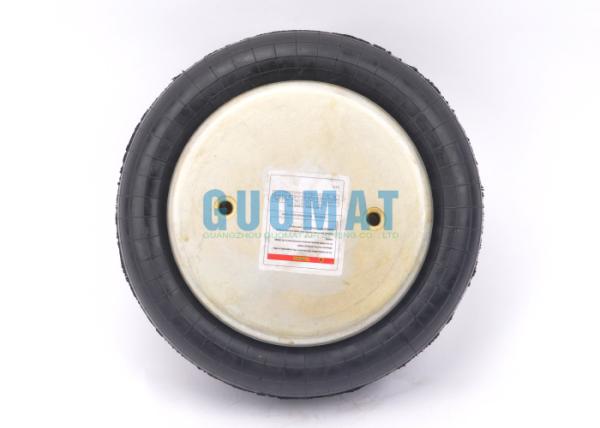

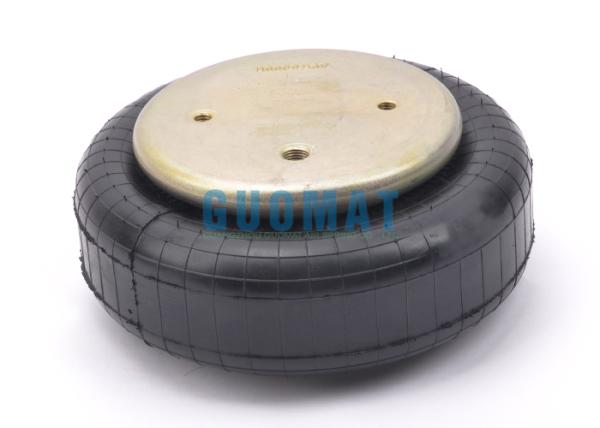

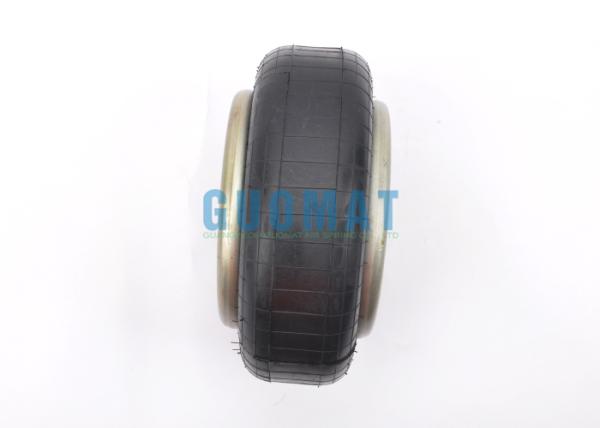

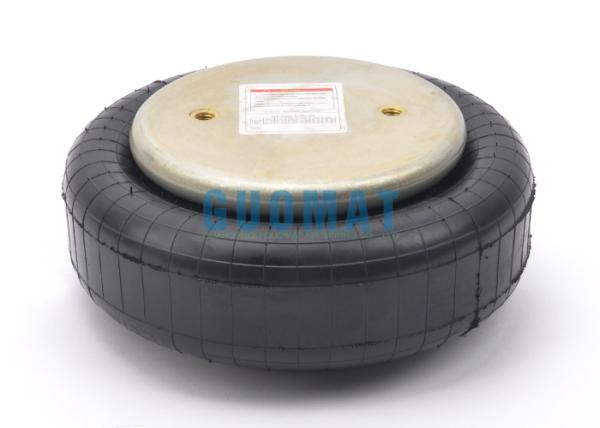

1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag
1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag
1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag
1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag
1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag
1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag
1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag
1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag
Specifications
Brand Name :
GUOMAT
Model Number :
1B9X5
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$49.9-59.9/pc
Payment Terms :
L/C, T/T,
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Product Name :
Industrial Air Spring
Warranty :
1 Year
Material :
Rubber + Steel
Packing :
Brown Carton
Color :
Black
Goodyear :
1B9-202
Convolutions :
1
Application :
Large Drying Machines
Description
1B9X5 Convoluted Air Spring Replacement 1B9-202 Goodyear Inflatable Airbag
Product Specifications
Attribute Value
Product Name Industrial Air Spring
Warranty 1 Year
Material Rubber + Steel
Packing Brown Carton
Color Black
Goodyear 1B9-202
Convolutions 1
Application Large Drying Machines
Product Details
Product Name Industrial Air Spring
Warranty 1 Year
Place of Origin GuangDong China
Brand Name GUOMAT
Certification ISO/TS16949:2009
Model No. 1B9x5
Condition New
Other Name Convoluted Rubber Air Spring
Cross Reference Information

Goodyear Part Number: 1B9-202

Goodyear Part Number: 1B 9-202

Goodyear Part Number: 1B9 202

Goodyear Part Number: 1B9202

Goodyear Bellows Number: 578913201

Goodyear Bellows Number: 578 91 3 201

Goodyear Bellows Number: 578-91-3-201

Enidine Part Number: YI1B9-202

Enidine Part Number: YI 1B9-202

Technical Data

Air Port Thread Diameter: 1/4 in

Air Port Thread Standard: UNC

Air Port Thread Type: 1/4 UNC

Bumper Type: None

Diameter at 100 psi: 11 in

End Plate Diameter: 6.4in

Force At Max Stroke At 100 Psi: 2850 lbs

Height Range: 4-1/2 to 5 in

Load Range at 100 psi: 3200 to 3900 lbs

Spring Style: Single Convolute

Stroke: 2.90 in

System Natural Frequency: 2.50 Hz

Tap Spacing: 3-1/2 in

Goodyear Single Bellow Air Springs
Goodyear Number Top Plate Hole/Stud Qty Bottom Plate Hole/Stud Qty Top Plate Dia. Bottom Plate Dia. Collapsed Height Flexmember Piston Piston Type
1B12-301 3 2 9 9 2.6 578-91-3-301 - -
1B12-305 3 2 9 9 2.6 578-91-3-301 - -
1B14-358 5 4 11.3 11.3 2.3 578-91-3-352 - -
1B14-350 5 4 11.3 11.3 2.5 578-91-3-351 - -
1B14-351 5 4 11.3 11.3 4.18 578-91-3-351 - -
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
