W01-358-7996 Firestone Rubber Air Spring FT 330-29 520 Contitech Industrial Air Bellows Bag Bags

Product Introduction

Item: Industrial Air Spring

Brand: GUOMAT

Model No.: 3B7996

Material: Rubber and Steel

Structure: Top Cover Plate,Bottom Cover Plate and Rubber Bellow

Warranty: 12 Months

Refer Number

Firestone Part Number: W01-358-7996

Firestone Part Number: W01 358 7996

Firestone Part Number: W013587996

Firestone Bellows Number: 38

Contitech Part Number: FT 330-29 520

Contitech Part Number: FT330-29 520

Contitech Part Number: FT330-29520

Goodyear Part Number: 3B12-335

Goodyear Part Number: 3B 12-335

Goodyear Part Number: 3B12 335

Goodyear Bellows Number: 578933100

Goodyear Bellows Number: 578 93 3 100

Goodyear Bellows Number: 578-93-3-100

Triangle Part Number: 6334

Triangle Part Number: 4520

Technical Parameters

Triple Convoluted Type Air Spring

Triple convoluted air springs are a specific type of air spring characterized by three distinct lobes (or convolutions) in their flexible rubber bellows. This design offers a unique balance of properties, making them suitable for demanding applications where high load capacity, compactness, progressive spring rates, and stability are critical.

Primary Applications:

Heavy-Duty Truck & Trailer Suspensions:

Drive Axles: Handling the high static and dynamic loads of loaded trucks, especially on rough roads. The progressive rate helps manage varying loads and impacts.

Trailer Axles: Supporting heavy cargo loads efficiently. Compact height is often beneficial here.

Cab Suspensions: Isolating the driver's cabin from chassis vibrations and impacts, improving comfort and reducing fatigue.

Off-Highway & Construction Equipment:

Large Haul Trucks (Mining, Quarry): Essential for carrying massive payloads over extremely rough terrain. High load capacity and long stroke are critical.

Articulated Dump Trucks (ADTs): Handling heavy loads and the articulation stresses inherent in their design.

Wheel Loaders, Excavators (Suspension-equipped models): Providing ride comfort and stability for operators moving between sites or on rough job sites. Compactness can be important.

Agricultural Machinery (Large Tractors, Combines): Supporting heavy implements, improving ride quality over fields, and providing load leveling.

Industrial Machinery & Vibration Isolation:

Large Presses, Machine Tools: Leveling heavy machinery and isolating vibrations to protect the machine foundation and surrounding equipment.

Test Rigs & Simulators: Providing precise load support and vibration isolation for sensitive testing environments.

Foundations for Sensitive Equipment: Isolating equipment like MRI machines or precision manufacturing tools from building vibrations.

Bus Suspensions:

Heavy-Duty Coaches & City Buses: Supporting the vehicle structure, passengers, and cargo. The progressive rate provides a good balance of comfort when empty and stability when fully loaded. Compact height can be advantageous.

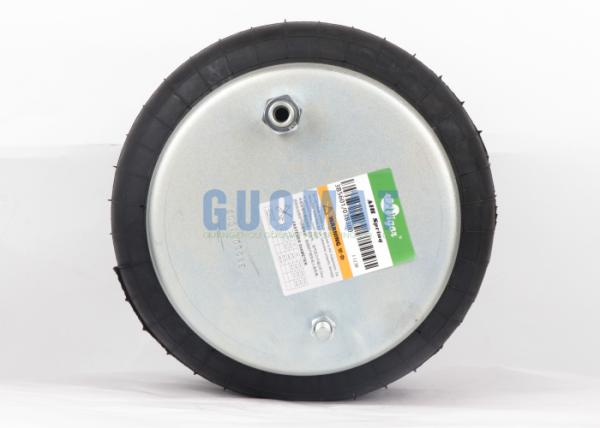

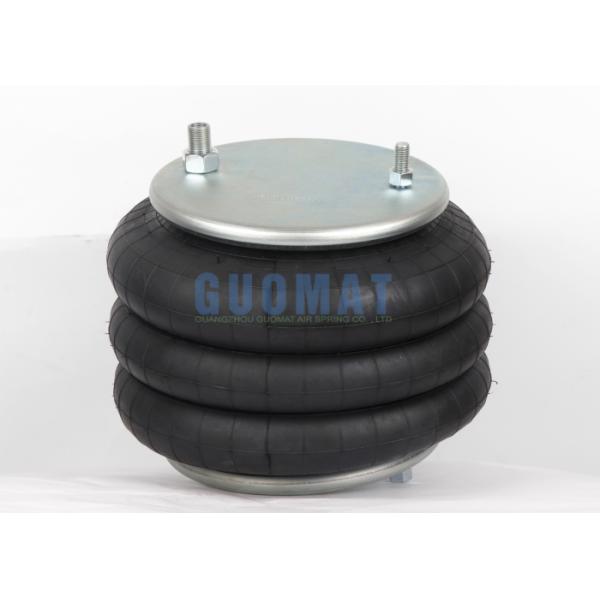

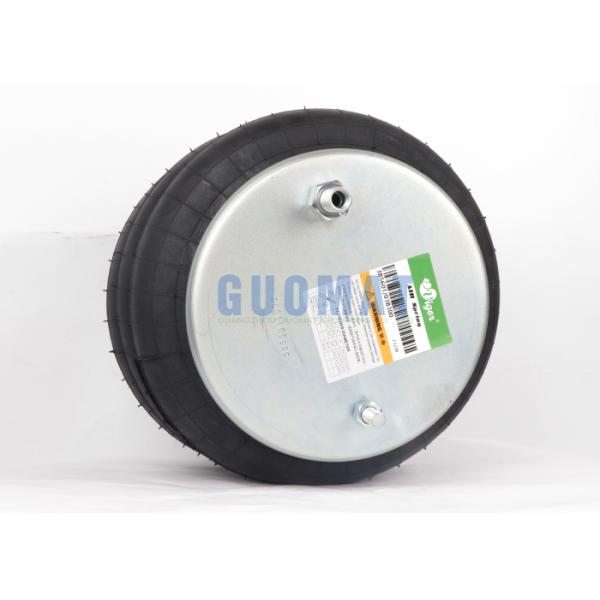

The Related Picture
