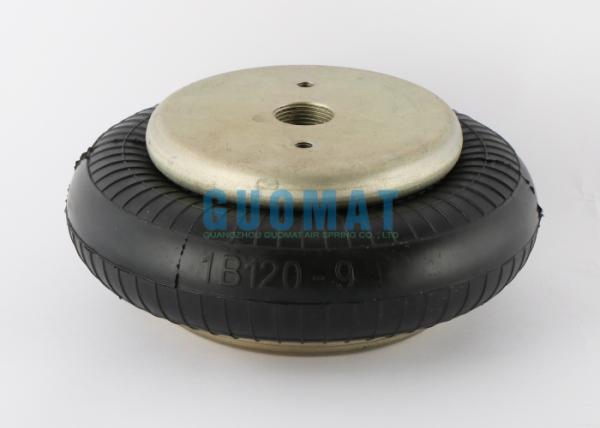

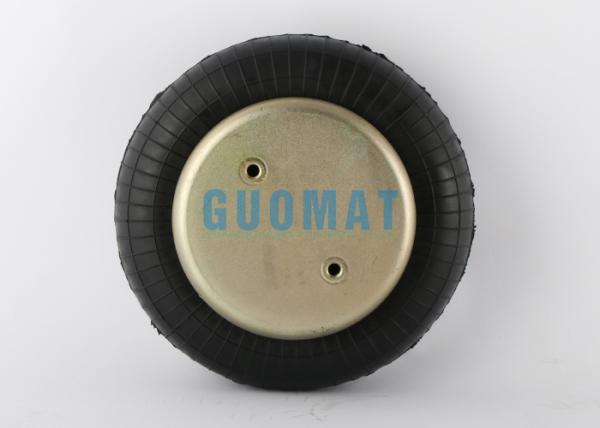

G3/4 Gas-Filled Type Rubber Air Bellows FS120-9 Contitech W01M586165 Firestone Air Spring

Technical Data: Single Convoluted Type Air Spring

Top cover plate diameter: Ø135mm

Air inlet: G3/4

Threaded holes in the top cover: 2XM8X1.25mm

Center distance between top cover threaded holes: 70mm

Distance between top cover threaded hole and air inlet hole: 35mm

Bottom cover plate diameter: Ø135mm

Rubber bellows max.outer diameter: Ø215mm

Maximum height: 115mm

Minimun height: 50mm

GUOMAT NO.1B1209-G3/4 Reference Numbers

Refer to Firestone W01M586165

Refer to Firestone W01 M58 6165

Refer to Firestone W01-M58-6165

Refer to Contitech FS120-9

Refer to Contitech FS 120-9

Refer to Contitech FS120-9 G3/4

Refer to Contitech FS 120-9 G3/4

Refer to Contitech FS120-9 G3/4 M8

Refer to Contitech FS 120-9 G3/4 M8

Refer to Dunlop(FR) 8''x1 S08101

Refer to Bosch 822419003

Refer to Festo EB-215-80

Refer to Norgren PM/31081

Refer to Norgren 8X1

Refer to Weforma WBE 300-E1

Refer to Airtech 140293

Refer to Airtech 111003

Refer to Airtech 1B-190FB

Refer to Megatech 1S120-9 3/4 M8


Dynamic Characteristics at 115 mm Design Height
(Required for Airmount isolator design only)

Gauger Press(BAR) Load(kN) Spring Rate(kN/m) Natural Frequency(Hz)
3 4.16 132 2.80
4 5.73 169 2.71
5 7.26 206 2.67
6 8.98 247 2.62
7 10.55 285 2.59

Force Table

Assembly Height(mm) Volume@7BAR(cu cm) EFF Area@7 BAR(cm*2) kN Force
@3 BAR @4 BAR @5 BAR @6 BAR @7 BAR
130 2635 110 2.86 4.04 5.17 6.51 7.71
120 2506 138 3.75 5.20 6.60 8.20 9.65
110 2341 163 4.54 6.22 7.86 9.70 11.38
100 2164 183 5.20 7.07 8.92 10.95 12.82
90 1956 201 5.75 7.84 9.84 12.04 14.07
80 1745 215 6.19 8.45 10.59 12.91 15.08
70 1509 228 6.54 8.91 11.8 13.64 15.92
60 1280 236 6.82 9.20 11.58 14.17 16.55

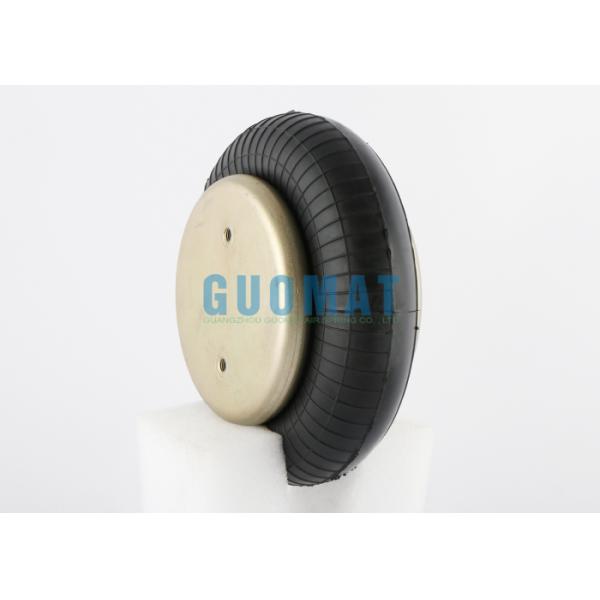

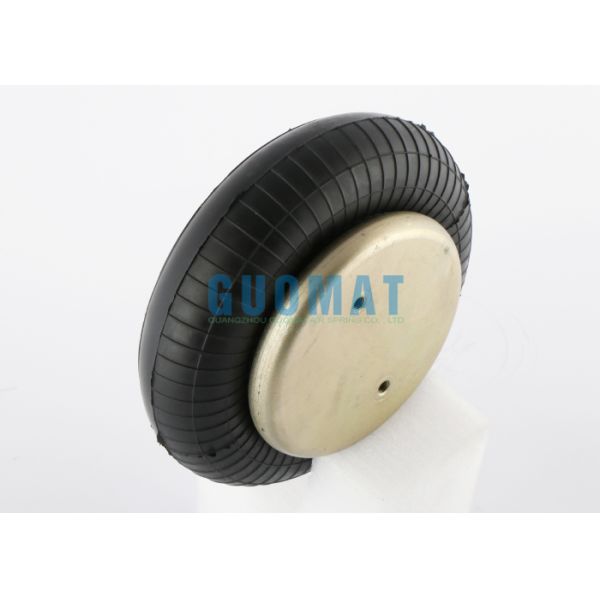

The Real Pictures
