Triple Convoluted Air Spring 117mm-460mm Stroke Industrial Rubber Air Shock For Pick Up

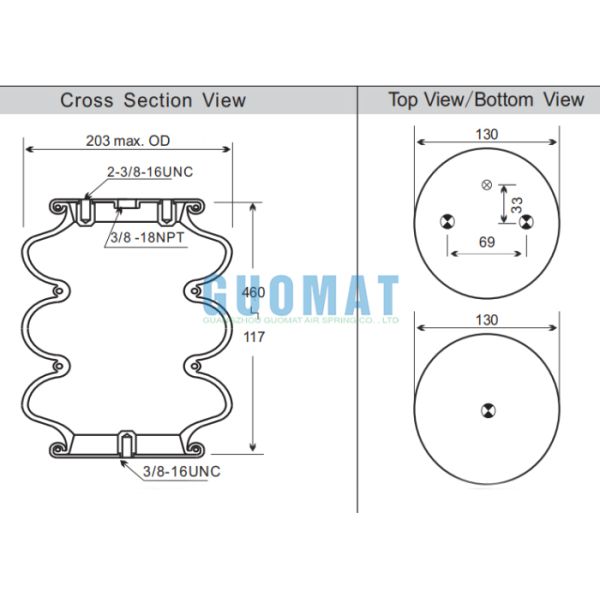

Detailed Technical Parameters

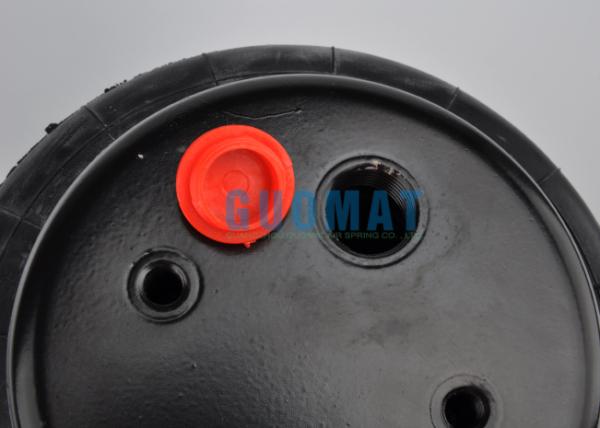

• Top Cover Plate Diameter: 130mm

• Bottom Cover Plate Diameter: 130mm

• Air Inlet: 3/8-18NPT

• Screw Center Distance Of Top Cover Plate: 69mm

• Screw And Gas Hole Distance Of Top Cover Plate: 33mm

• Top Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC

• Bottom Cover Plate Screw (Nut) Tooth: 1X3/8-16UNC

• Rubber Bellow Max. Diameter: 203mm

• Max Height: 460mm​​​

• Min Height: 117mm

Every Standard Air Spring Consists of 4 Layers.

• The inner layer which actually contains the air.
• The first layer of fabric reinforced rubber applied

at a specific angle.

• The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

• The cover to protect the bias fabric plies.

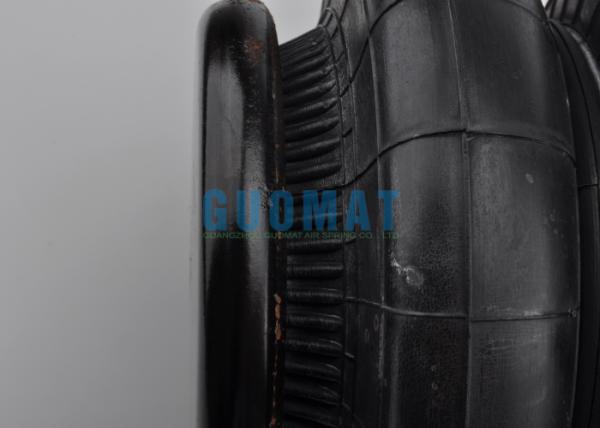

Triple Convoluted Air Spring For Pick Up

What it Is
1. Structure
Triple Convoluted: Features three distinct "lobes" or "bellows" stacked vertically. This design provides a larger air volume and a more progressive spring rate compared to single or double convoluted bags.
Air Spring: A reinforced rubber bladder inflated with compressed air. Pressure adjusts the spring's stiffness and ride height.

How it Works on a Pickup
1. Installation: Mounted vertically between the truck's frame and the rear axle (or suspension mounting point). Common locations are directly above the axle or slightly inboard/outboard.
2. Air Supply: Connected via air lines to:
Manual Fill Kit: Simple schrader valves (like tire valves) for inflation/deflation using an external compressor or gas station pump.
On-Board Air System: Includes an electric compressor, air tank, pressure switches, and often in-cab controls for real-time adjustment while driving.
3. Adjustment: Air pressure is increased to support heavier loads and raise ride height. Pressure is decreased when unloaded for a softer ride.

Key Benefits for Pickup Trucks
Increased Payload/Towing Capacity: Allows safer hauling of heavier loads within the truck's structural limits (doesn't increase GVWR).

Eliminates Rear Sag: Keeps the truck level, improving aerodynamics, headlight aim, and visibility.

Improved Towing Stability: Reduces trailer sway and improves control.

Enhanced Ride Quality: Smoother ride when unloaded by allowing softer factory springs; controlled ride when loaded.

Adjustable: Tailor suspension firmness/height to the specific load.

Protects Factory Springs: Reduces stress and potential sagging of leaf or coil springs over time.
