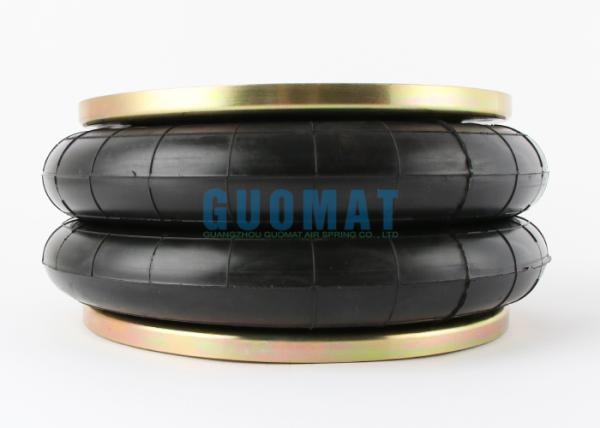

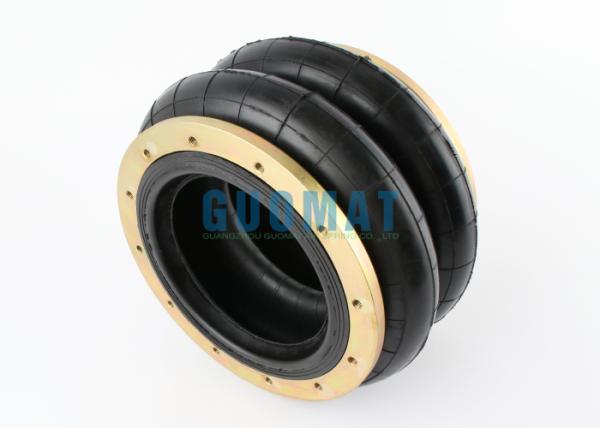

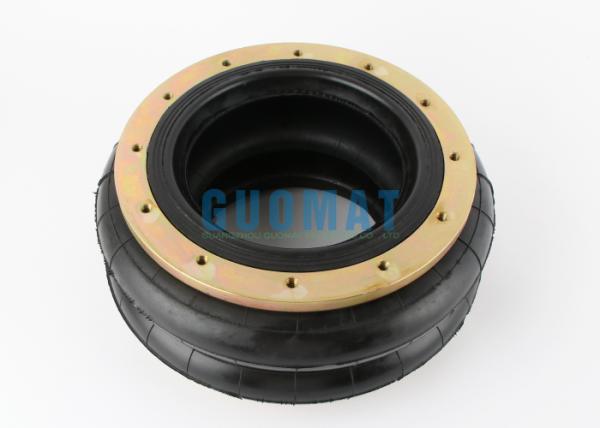

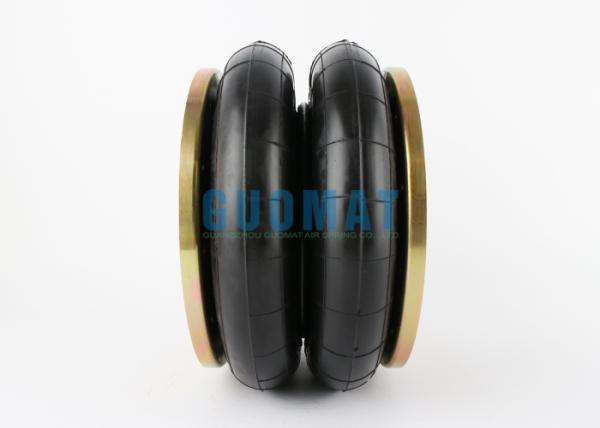

2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators
2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators
2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators
2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators
2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators
2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators
2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators
2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators
Specifications
Brand Name :
GUOMAT
Model Number :
2H250180
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$129.9-$139.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Material :
Rubber Bellow and Steel Flange Ring
Warranty :
1 Year Warranty
Function :
Reduce Shock
Quality :
100 % Tested
Model Code :
245
Type :
Flange Air Spring
Code No. :
93740/90587
Bolts :
M 8 x 1.25
Description

2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators

Product Description

Brand: GUOMAT

GUOMAT Air Spring: 2H250180

GUOMAT Bellows NO.: 2B250

GUOMAT NO.: 2H250180 refer to 90587

Cross No.: 93740 P-irelli Air Spring

Pneumatic Actuator: Model:245, Type: F1, High Temp. code - 90587, PCD: 145mm, Max OD-270mm, Max. Height-310mm, Min. Height-85mm, Stiffness: 18.4 daN/mm Connection: Bead Ring Flange connection,

2H250180 Technical Data

Effectiver Diameter: 185mm

Compressed Height: 84mm

Max. Height : 206mm

Natural Height: 180mm

Stroke: 122mm

Top Cover Plate Diameter: 183mm

The Rubber Bellow Max.Outer Diameter: 270mm (0.7Mpa)

The Center Distance of the Bolts: 145mm

Bolts Quantity: 8pcs-M10

Carrying
Capacity		 Inflation Pressure 0.2 0.3 0.4 0.5 0.6 0.7 0.8 Volume at 0.7MPa
Installtion MPa MPa MPa MPa MPa MPa MPa (dm3)
84 (mm) 755 1125 1484 1868 2239 2610 2980 2.18
126 (mm) 668 1015 1360 1694 2041 2388 2746 3.71
168 (mm) 530 848 1144 1426 1735 2030 2327 5.06
180 (mm) 520 795 1073 1345 1627 1904 2195 5.28
206 (mm) 412 638 857 1089 1321 1554 1798 5.90
230 (mm) 312 494 676 857 1045 1243 1446 6.60
Stiffness and frequency at design height Vertical Stiffness (Kg/cm) 101 120 150 184 212 231 257
Natural Frequency HZ 2.21 1.94 1.87 1.85 1.81 1.74 1.71
com 133 116 112 111 109 104 103

Applied As Suspension-Double Convoluted Type

MODEL Standard NO. High-Temp NO. Connection Max.OD mm Min.H mm Max.H mm Static H mm Effect Area cm2 Stiffness daN/mm
23B 202665 - F1 165 65 205 150 104 8
26 84181 89422 F2 220 85 245 165 169 12
20 86600 - F2 255 80 265 170 240 13.9
245 93740 90587 F1 270 85 310 185 348 18.4
22 94091 - P2 325 88 288 183 450 23.1
88544 89425 F2 325 80 280 175 450 23.1
21 BR 89457 - F2 380 80 290 180 680 33.9
21A BR 97300 - F2 435 85 315 190 785 33.7
21B BR 92154 - F2 440 85 385 200 850 38
28 BR 92527 - F2 445 80 310 185 1015 78.6
28 B 90559 - F2 485 85 375 250 105 38.5
29 93056 - P3 570 90 330 195 1930 83.8
93166 - F2 570 80 320 185 1930 83.8

2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators

Send your message to this supplier
Send Now

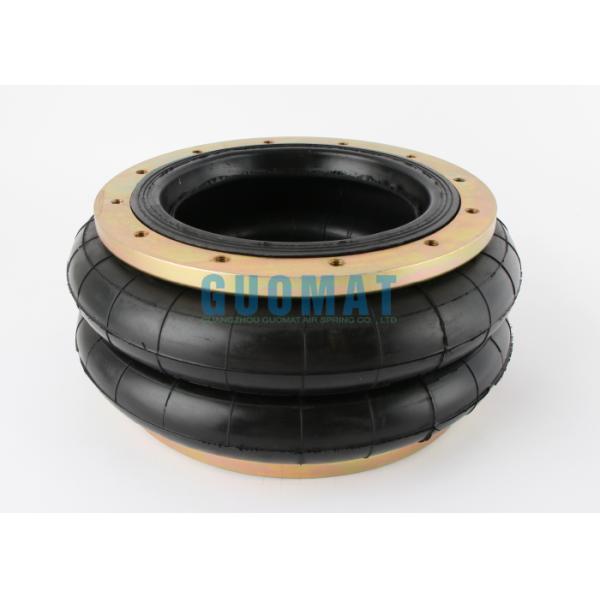

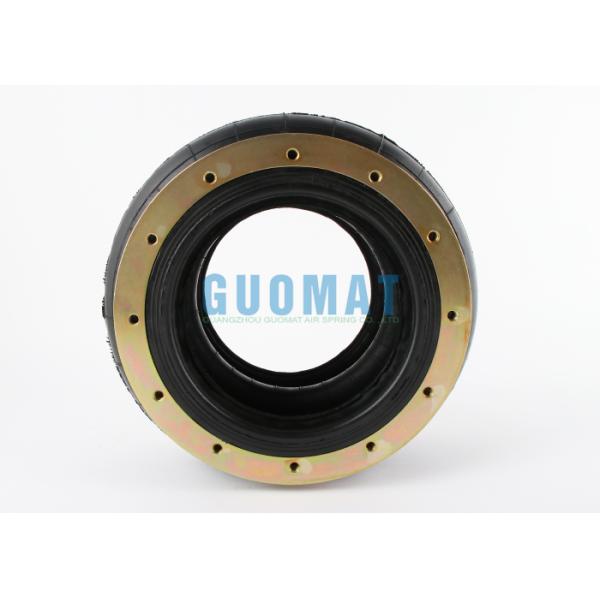

2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators
