Specifications
Brand Name :
GUOMAT
Model Number :
12X2
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$69.9-99.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Material :
Rubber Bellow and Steel Cover
Warranty :
1 Year Warranty
Function :
Reduce Shock
Packaging :
Carton/Cartons
Product Name :
Air Ride Spring Bag
MOQ :
10 Pieces
Position :
Industrial Machine
Contitech No. :
FD 412-22
Description

GUOMAT 12X2 Air Spring Flange Assembly SP1541 Dunlop FD 412-22 DS Contitech Industrial Air Bag

Cross Reference Number

ContiTech

FD412-22

ContiTech

FD 412-22

Firestone

W01-R58-4061

Firestone

W01R584061

Dunlop

SP1541

Dunlop

12''x2

Norgren

M/31122

Parker

9109041

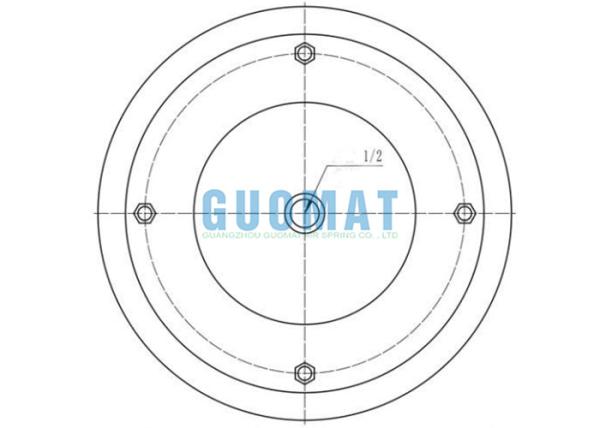

GUOMAT 12X2 Air Spring Technical Data

♦Cover Plate
Top Cover Plate Diameter: Ø260mm/10.24in

Bottom Cover Plate Diameter: Ø260mm/10.24in

♦Gas Hole/Air Fitting
Gas Hole: 1/2

♦Screw/Blind Nut
The Screw of the Top Cover Plate: 4XM10X1.5

The Screw of the Bottom Cover Plate: 4XM101.5

The Screw Height: 25mm/0.98in

The Distance Between the Screws of the Top Cover Plate: Ø232mm/9.13in

The Distance Between the Screws of the Botttom Cover Plate: Ø232mm9.13in

♦Rubber Bellow
The Rubber Bellow Diameter: Ø300mm/11.8in

The Natural Height: 180mm

Specification
♦Install
Although they serve similar functions, air springs are much less expensive than air cylinders and other springs. When deflated, air springs have a small footprint and are easy to handle and connect to machinery.

♦Maintain
Maintenance procedures for air springs tend to be minimal, air springs require no lubrication, and there are no seals or guides that can become misaligned or damaged like other springs. Air springs should be stored at room temperature in a dry, dark place.

♦Environment
Due to their durability and simplicity, air springs are suitable for most industrial and commercial applications. Rubber and neoprene are prone to dry rot, so dehumidified conditions can shorten the life of an air spring.

♦Medium
Air spring bellows can also accept other types of fluids such as nitrogen, carbon, water and antifreeze.

We Supply Other Double Convoluted Air Spring

Item

Max.Dia. at 7 Bar (mm)

Min.Height

(mm)

Max.Stroke

(mm)

5 Bar Force at Stroke of

25mm(kN)

50% of Max.Stroke

Max Stroke(kn)

4 1/2X2

120

70

75

3.9

3.2

1.5

6X2

162

75

115

8.3

6.4

1.5

8X2

215

75

150

12.3

10.3

3.9

10X2

285

75

200

19.8

13.7

5.9

12X2

312

75

225

29.4

22.6

4.4

14 1/2X2

378

75

260

45.1

36.3

17.7

16X2

406

75

265

63.0

43.1

9.8

Item

Design Height(mm)

Load at Design Height@5Bar(kN)

Natural Frequency@5 Bar(Hz)

Blind Nut or Bolt Dla.(mm)

Number of Bolts

4 1/2X2

100

3.4

3.4

93

3

6X2

130

6.5

2.9

127

4

8X2

160

10.0

2.5

156

4

10X2

170

14.7

2.2

181

4

12X2

170

24.3

2.1

232

4

14 1/2X2

200

37.0

2.0

283

4

16X2

200

45.0

1.8

283

4

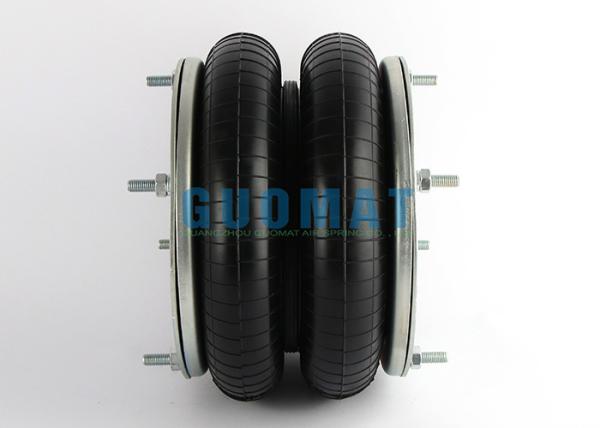

The Real Pictures

GUOMAT 12X2 Air Spring Flange Assembly SP1541 Dunlop FD 412-22 DS Contitech Industrial Air BagGUOMAT 12X2 Air Spring Flange Assembly SP1541 Dunlop FD 412-22 DS Contitech Industrial Air Bag
