FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows
FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows
FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows
FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows
FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows
FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows
FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows
FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows
Specifications
Brand Name :
Contitech
Model Number :
FD 330-22
Certification :
ISO/TS16949:2009
Place of Origin :
Germany
MOQ :
6PCS
Price :
$69.9-119.9/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Type :
Air Spring, Airbags, Air Suspension Spring
Warranty :
12 Months
Operation :
Gas-Filled
Quality :
100% Tested
Package :
Brown Cartons
Brand :
Contitech
Stroke :
3.0in-12.0in
Description

FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows

Product Information

Contitech Air Spring

  • FD 330-220CI
  • 1/4NPT Air Fitting
  • Double Convoluted Type
  • One Year Limitrd Warranty
Diameter of upper cover: 8.98in
Threaded holes of upper cover: 2x3/8UNC,0.95in
Air holes of upper cover: 1/4NPT
Center distance between threaded holes of upper cover: 6.2in
Distance between threaded holes and air holes of upper cover: 2.87in
Diameter of lower cover: 8.98in
Threaded holes of lower cover: 2x3/8UNC,0.95in
Center distance between threaded holes of lower cover: 6.2in
The rubber bellows max outer diameter: 12.8in
The max height: 12.0in
The min height: 3.0in

The Cross Reference Number

Contitech No. OEM No.
FD 330-22 363

Firestone W01-358-7180

Goodyear 2B14-425/578923309

Goodyear 2B14-311/578923309

Triangle 6316/4363

Airkraft 115061/3B-356
FD 330-22 472

Firestone W01-358-7181

Goodyear 2B12-411/578923309

Triangle 6316/4472
FD 330-22 471

Firestone W01-358-7183

Goodyear 2B12-412/578923309

Triangle 6316/4471
FD 330-22 500

Firestone W01-358-7344

Goodyear 2B12-304

Triangle 6316/4500
FD 330-22 313

Firestone W01-358-7400

Goodyear 2B12-309/578923309

Goodyear 2B12-316/578923309

Triangle 6316/4313
FD 330-22 337

Firestone W01-358-7401

Goodyear 2B12-320/578923309

Triangle 6316/4334
FD 330-22 318

Firestone W01-358-7403

Goodyear 2B12-307/578923309

Goodyear 2B12-433/578923309

Goodyear 2B12-445/578923309
FD 330-22 346

Firestone W01-358-7404

Goodyear 2B12-410/578923309

Goodyear 2B12-312/578923309

Triangle 6316/4346
FD 330-22 364

Firestone W01-358-7405

Goodyear 2B12-313/578923309

Goodyear 2B12-459/578923309

Triangle 6316/4364


Applications
• Material handling industry
• Lumber industry
• Aluminum can recycling
• Container manufacturers
• Paper industry
• Press manufacturing
• Vibrating equipment and conveyors
• Vibrating screens
• Steel manufacturing equipment
• Automotive related (flat glass)

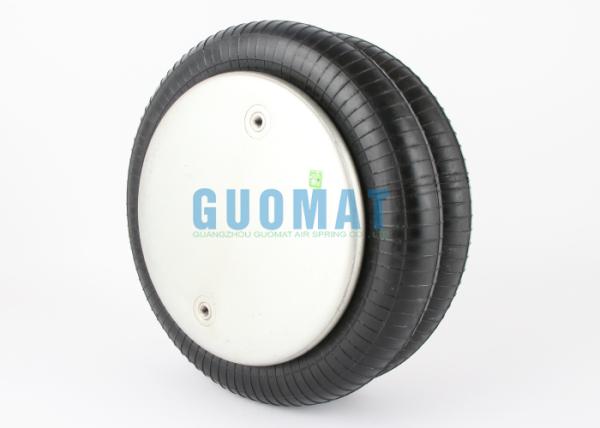

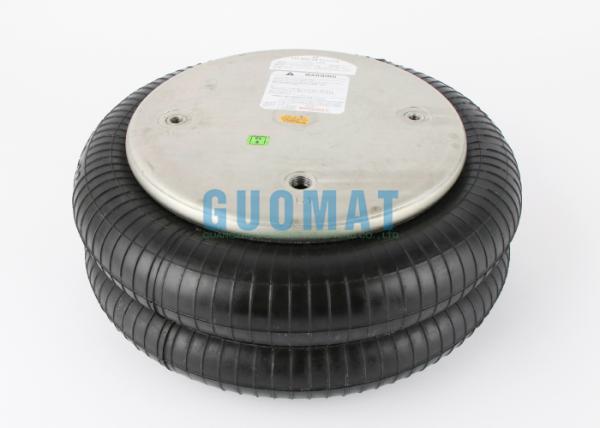

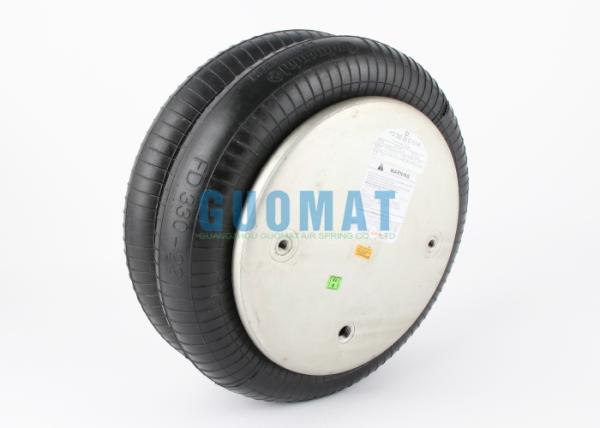

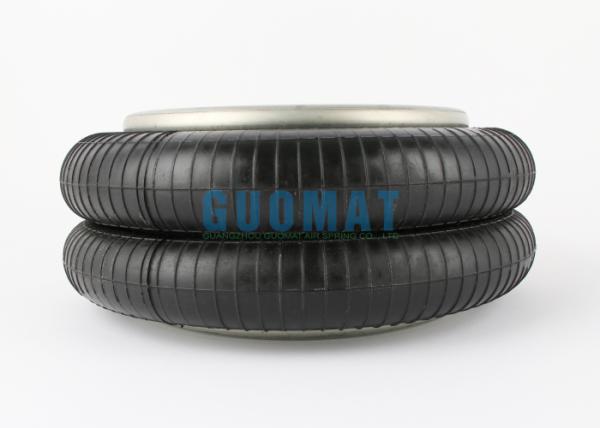

Product Picture
