Specifications
Brand Name :
GUOMAT
Model Number :
1T6022
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$79.9-89.9/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Product Name :
Air Suspension Spring
Warranty :
12 months
Color :
Black
Package :
Carton
Function :
Reduce Shock
The Stroke :
215mm-350mm
Goodyear :
1R12-825
DT :
2.621032
Description

1R12-825 Goodyear Truck Air Spring 566-24-3-524 Volvo Suspension Airbag Assembly 20703452

Product Information
Parameters Details
Product Name Air Spring
Model No. 1T6022
Material Rubber+steel
Application Volvo
OEM High Quality

OEM Number/Cross Reference Number

Contitech Number: 6620 N P02 / 6620N P02 / 6620NP02

Goodyear Number: 1R12-825 / 1R 12-825 / 1R12 825 / 1R12825

Goodyear Number: 566243524 / 566 24 3 524 / 566 24 3 524

DT Number: 2.61032

PHOENIX Number: 1 DF 25 C-1
PRIME-RIDE Number: 1R12-823
PRIME-RIDE Number: 1R12-825

Volvo Number: 20703452 / 20 703 452

Volvo Number: 21057939 / 21 057 939

Volvo Number: 21013010 / 21 013 010

Volvo Number: 21513836 / 21 513 836

Technical Data

Length: 244mm
Outer diameter: 260mm
Diameter: 325mm
Thread size 1: M10 x 1.5
Thread size 2: M16 x 1.5
Guarantee: 1 years guarantee
Net weight: 8687g

Functions of Volvo Truck Suspension Airbags

Shock Absorption and Comfort Compressed air is used to cushion road vibrations, reducing driver fatigue and cargo damage.
Automatic Leveling Automatically adjusts airbag pressure according to load weight to keep the vehicle body level.
Height Adjustment The driver can adjust the chassis height through the control system to facilitate loading and unloading of cargo or adapt to different road conditions.
Protect the chassis Reduce the impact of bumps on the frame and components, and extend service life

Common Faults and Maintenance
Airbag leakage: caused by aging, cracks or poor sealing of rubber, which needs to be replaced in time.
Height valve failure: the vehicle body cannot remain level, and the valve needs to be cleaned or replaced.
Pipeline blockage/leakage: check the air pipe connection point and dryer.
Abnormal noise or tilt: it may be uneven airbag pressure or wear of mechanical parts.

Maintenance Suggestions
Regularly check whether the airbag surface is cracked or worn.
Keep the air dry (to prevent moisture from corroding the pipeline).
Replace aging parts according to the manual and avoid overloading.

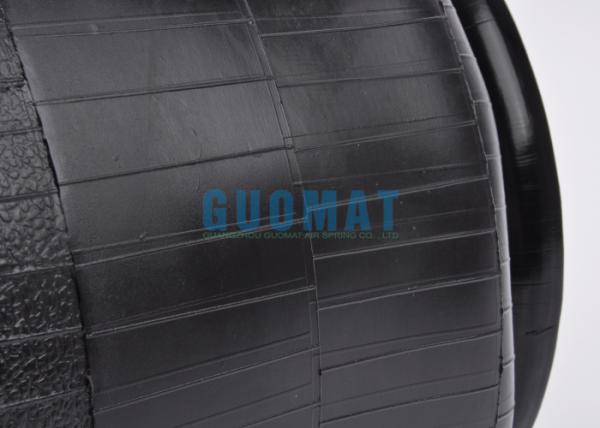

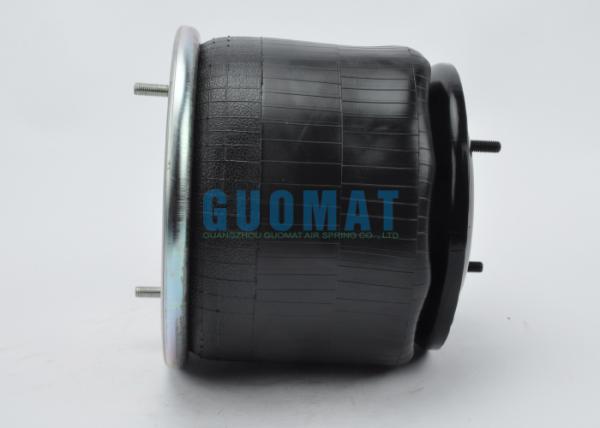

Product Show:

1R12-825 Goodyear Truck Air Spring 566-24-3-524 Volvo Suspension Airbag Assembly 207034521R12-825 Goodyear Truck Air Spring 566-24-3-524 Volvo Suspension Airbag Assembly 20703452
