2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring
2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring
2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring
2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring
2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring
2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring
2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring
2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring
Specifications
Brand Name :
GUOMAT
Model Number :
2H520217
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$129.9-169.9/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Type Name :
Air Spring/Suspension Spring
Spring Material :
Natural Rubber
Warranty :
12 Months
Application :
Industrial Punching Machine
Model No. :
2H520217
Screw Thread Type :
M10
Min.height :
90mm
Weight :
14.5KG
Description

2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring

Product Description

Brand GUOMAT/Neutral
Name Air Spring Suspension
Model No. 2H520217
Color Black
Delivery Time 2-8 Working days
Certificate ISO/TS16949:2009
Size Standard
MOQ 1PCS

GUOMAT 2H520217 Industrial Air Spring Technical Data

The Rubber Bellows Max.Outer Diameter (At 0.7MPa): 550mm

Natural Height: 217mm

Min.Height: 90mm

Max.Height: 249mm

Stroke: 159mm

Screw Thread: M10

Number of Screw Thread: 24pcs

Center Distance Between Screw Threads: 470mm

Bearing Capacity (kg) Inflation Pressure 0.2Mpa 0.3Mpa 0.4Mpa 0.5Mpa 0.6Mpa 0.7Mpa 0.8Mpa Volume at 0.7Mpa(dm3)
Installation Height
90 (mm) 4105 6185 8262 10282 12364 14442 16521 15.19
142 (mm) 3657 5499 7380 9252 11137 13020 14899 24.23
194 (mm) 3289 4894 6628 9311 9953 11688 13385 32.19
217 (mm) 3070 4657 6251 7850 9487 11094 12780
294 (mm) 2724 4136 5587 7020 8509 10024 11549
270 (mm) 2392 3676 5010 6335 7717 9101 10580
Stiffness and frequency at design height Vertical Stiffness (Kg/cm) 321 418 557 657 772 886 958
Natural frequency Hz 1.62 1.50 1.49 1.45 1.43 1.41 137
cpm 97 90 89 87 86 85 82

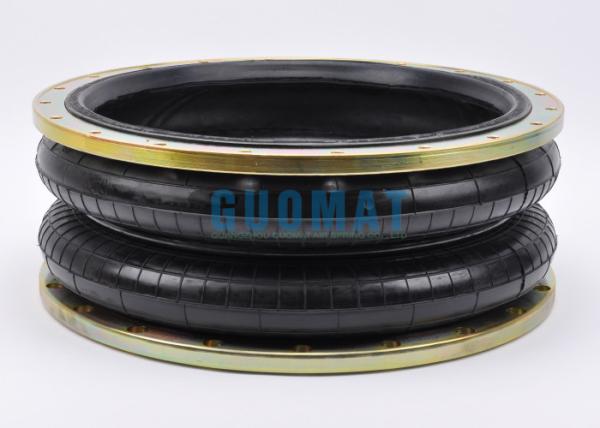

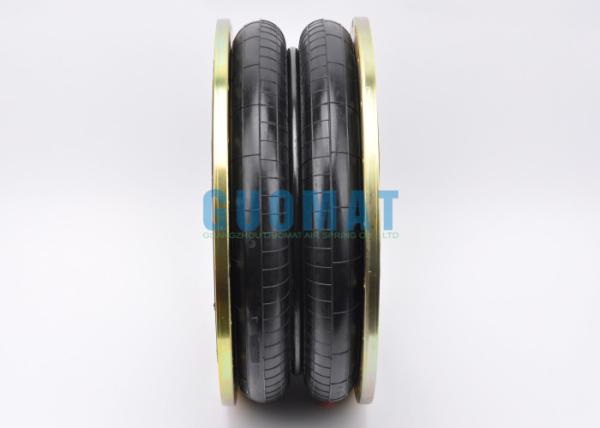

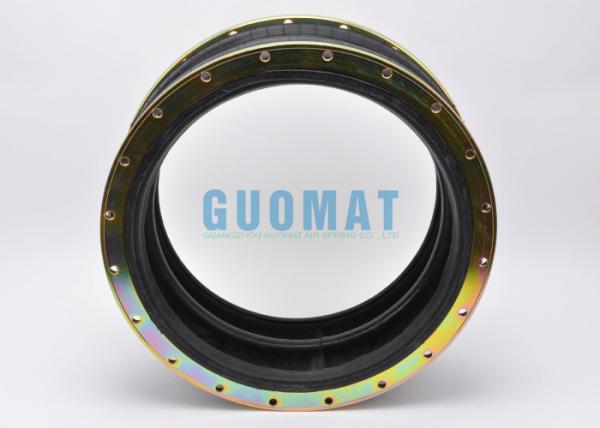

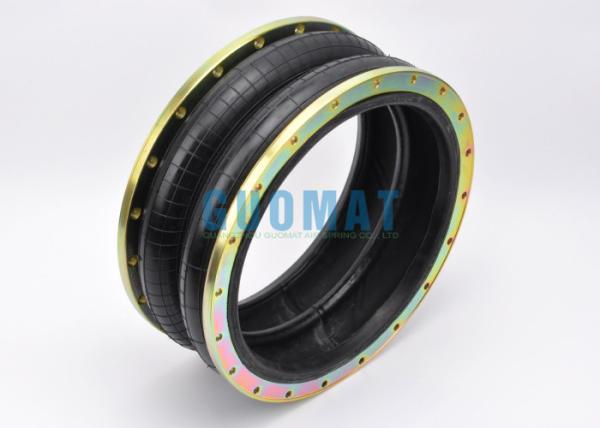

Product Image

2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring
