FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
Specifications
Brand Name :
Contitech
Model Number :
FS200-10
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Germany
MOQ :
5pcs
Price :
USD99.9-299.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model Name :
Single Convolution Air Actuator
Structure :
Single Convoluted
Brand :
Contitech
Function :
Reduce Shock
Condition :
Brand New
OEM :
FS 200-10
After-sales Service :
1 Year
Position :
Industrial Machine
Description

FS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen

Product Details

Item Industrial Air Spring Material Rubber+Steel
Warranty 12 Months Application For Industrial
Number of Convolution 1 MOQ 10 Pieces
Function Reduce Shock Other Name Air Bellow, Air Bags


Contitech OEM Information

Continental Contitech FS200-10

Continental Contitech FS 200-10

Continental Contitech FS200-10 CI

Continental Contitech FS 200-10 CI

Continental Contitech FS 200-10 CI 3/4 NPT

Continental Contitech FS 200-10 CI 1/4 NPT

Continental Contitech FS 200-10 CI 3/4 NPT OS

Continental Contitech FS 200-10 CI 1/4 NPT OS

About GUOMAT 1B200-10 Air Spring

GUOMAT Number: 1B200-10

Replace Firestone number: W01-M58-6374

Replace Firestone number: W01 M58 6374

Replace Firestone number: W01M586374

Replace Contitech Number: FS 200-10

Replace Phoenix Number: SP1B12

Replace Phoenix Number: SP 1B12

Replace Phoenix Number: SP 1B 12

Dunlop(FR) Number: 9''1/4X1

Dunlop(FR) Number: S09101

B-osch Number: 822419004

Festo Number: EB-250-85

Norgren Number: PM/31091

Norgren Number: PM31091

Norgren Number: PM 31091

Norgren Number: 8 1/4 X1

Contitech FS200-10 Single Convolution Air Actuator

  • Rubber bellows only
  • With crimped plates,G1/4 air inlet A=44.5mm excentrical
  • With crimped plates and bumper A=44.5mm excentrical
  • With crimped plates,G3/4 air inlet A=38.1mm excentrical
  • With stainless steel crimped plates,G3/4 air inlet A=38.1mm excentrical

Vibration Isolation – Dynamic Characteristic Values

Design height H: recommended 110mm, minimum 90mm

Pressure p [bar] 3 4 5 6 7 8 Vol.V(I)
Force (Load) [kN] 6.1 8.2 10.4 12.6 14.8 17.2 2.9
Spring rate [N/mm] 166 212 258 304 348 393
Natural frequency [Hz] 2.6 2.5 2.5 2.5 2.4 2.4

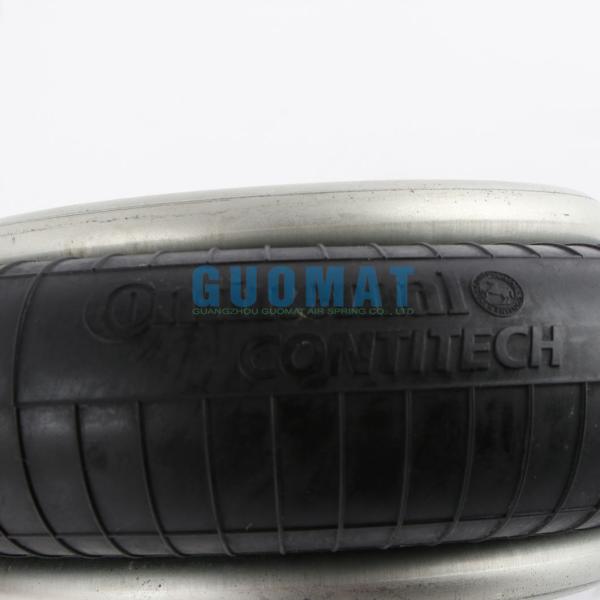

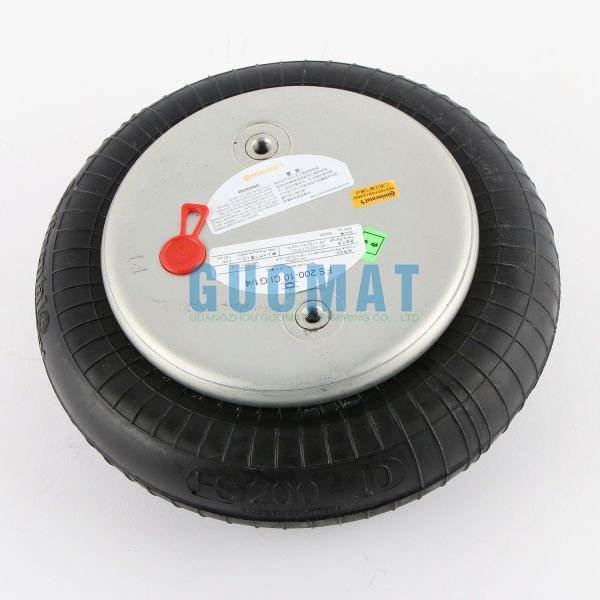

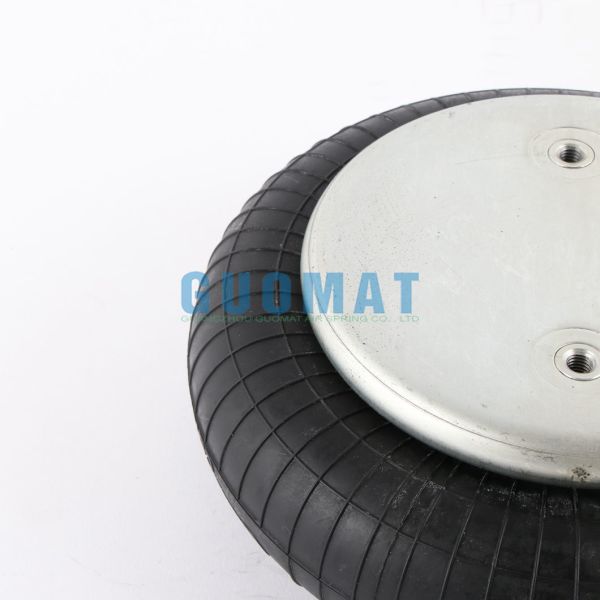

Product Images
FS200-10 Contitech Single Bellow Type Air Spring For Vibrating ScreenFS200-10 Contitech Single Bellow Type Air Spring For Vibrating Screen
