FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator
Specifications
Brand Name :
Contitech
Model Number :
FS310-12
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Germany
MOQ :
5pcs
Price :
USD159.9-299.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Contitech NO. :
FS310-12
Type :
Single Convoluted
Function :
Reduce Shock
Rubber :
Bellows Only
Warranty :
1 Year
Phoenix :
1B20
Weight :
1.4KG
Model Name :
Convoluted Rubber Air Springs
Description

FS310-12 Continental Convoluted Bellows Air Spring 1B20 Phoenix Air Actuator

Product Details


Manufacturer:Contitech

OE/OEM Number:FS 310-12

FS310-12

FS 310-12 VP

FS 310-12 VP ECO

FS 310-12 ECO

FS 310-12 S VP

FS 310-12 Repalces Phoenix 1 B20
FS 310-12 ECO Repalces Phoenix 1 B20-4

Technical Data

Min.pressure: 0 bar

Return force to min.height: ≤120N

Overall weight,standard quality: 1.0KG

Overall weight,High temperature quality: 1.4KG

Minimum height: 55mm

Maximum stroke: 120mm

Maximum diameter: 320mm

Installation space needed: 335mm

Bead diameter: 172mm

Inner-Ø sealing and mounting surface: 131mm

Height of bead: 11mm

Maximum loading capacity(7 bar/115mm): 26.8KN

Maximum lifting pressure: 8 bar

Features
ECO = High Temp Bellow (-4 °F to 266 °F)
CR = Chloroprene Bellow (-22 °F to 194 °F)
Niro = Stainless Steel Bead Plates
HP = High Pressure Bellow
VP = Bellow Only Part
B = Internal Bumper
OS = Offset Air Inlet
CA = Center Air Inlet
X2 = Air Inlet On Top and Bottom Plate

Other Kind of Contitech Air Bellows

FS 100-10 VP

FD 120-20 VP

FS 200-10 VP ECO

FT 960-34 VP

FS 330-14 S ECO VP

FS 310-12 VP ECO

FD 120-20 S VP

FS 960-12 VP

FD 330-22 ECO VP

FD 200-19 VP ECO

FD 1710-25 VP

FD 960-22 VP ECO

FS 120-10 VP

FD 1710-25 VP ECO

FD 1330-25 VP

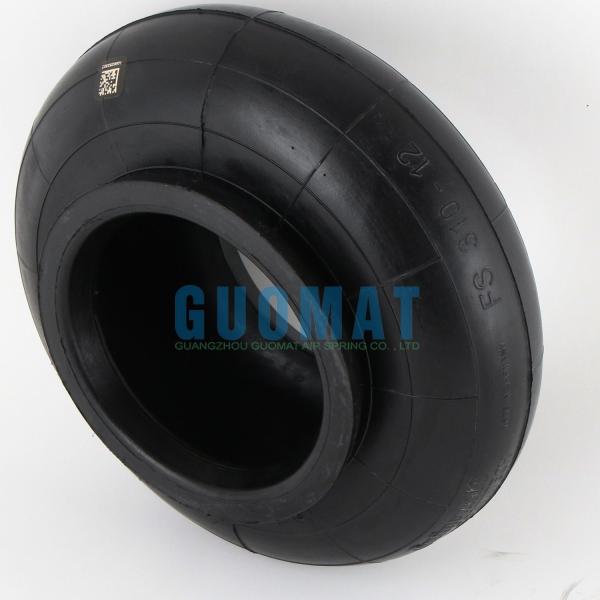

Product Images
