Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910
Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910
Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910
Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910
Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910
Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910
Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910
Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910
Specifications
Brand Name :
GUOMAT
Model Number :
2B5248
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD59.9-69.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
2B6910
Sample :
Available
Function :
Reduce Shock
Quality :
100% Tested
Gas Hole :
1/4NPTF
Firestone :
W01-358-6910
Goodyear :
2B9-200/202/216
Contitech :
FD 200-19 320
Description

Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910


Product details
Cross references
Firestone W01-358-6910 Contitech

FD200-19 320
Goodyear 2B9-200 Goodyear 578423202
Triangle 6325/4320 Taurus KF218-6910

Original parts
Brake&Wheel M3501 Dina A812719/AZ812719
Dayton 3546910 Leland Sc2011
Navistar 554783C1 Hendrickson S8768/458433
Ridewell 1003586910C SAF Holland 57006910
Trailers De 133128 Tuthill 1371
Watson&Chalin AS-0001 Watson&Chalin AS-0156G
Item Value
OEM.NO. W01-358-6910
Type Air Spring
Warranty 12 Months
Color Black
Place of Origin Guangzhou,China
Certification ISO/TS16949:2009
Material Rubber+Steel
Packing Neutral Packing
MOQ 1 Pcs
Quality High-Quality
Position Auto/Truck parts/Industrial equipment
Application Auto Suspension Systems

2B200 Durable Fire-stone Suspension Spring Technical Data

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2X3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth :2X3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

Screw and Gas Hole Distance of Top Cover Plate:44.5mm

Cover Plate

Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm

Rubber Bellows
Rubber Bellows MAX Diameter: MAX.251mm

Rubber Bellows Natural Diameter :224mm
The Working Stroke : MAX 260 mm to MIN 75 mm
Maximum Height : 260 mm
Minimum Height :75 mmx
Compression Height :185 mm

We also have many sizes of air springs, if you need them, please contact me.

Contitech Goodyear Fire-stone Phoenix
928N 8042 W01-095-0228 2E23A
943N 9001 W01-095-0189
973N 8012 W01-095-0198 1F21A
945N 9014 W01-095-0063 1E21C
975N W01-095-0437 1E10
W01-095-0294
W01-358-9391
4913NP02 1R14-753 W01-095-0500 1D28H-16
1R14-869
4159NP06 W01-M58-0736
810NTB 1R14-713 W01-M58-0749 1DK28A4
4022NP02 1R11-709 W01-M58-0756
4022NP02 1R11-709 W01-M58-0756
836MB W01-M58-0775 1DF25-4
836MB 1R12-700 W01-M58-0776 1DF25-1
836M2K1 1R12-711 W01-M58-8721 1DF25-13
887M 1R11-796 W01-M58-0780
889MK2 W01-M58-0781
W01-M58-0918
4004NP02 W01-M58-0919
4004NP02 W01-M58-0919
6603NP02
4183NP23
4883N1P07
6609NP01

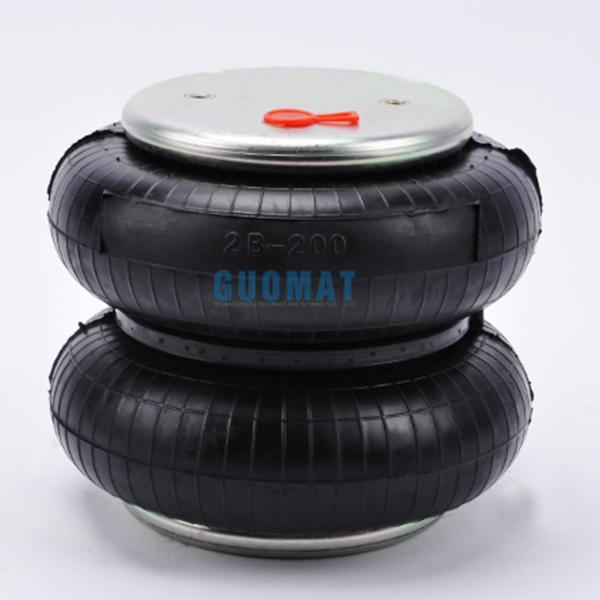

Product Picture

Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910Industrial Equipment Vehicle Rubber Air Spring Convoluted Type Firestone W01-358-6910
